Timing Tools
Timing tools for a wide range of Land Rover engines.
Parts

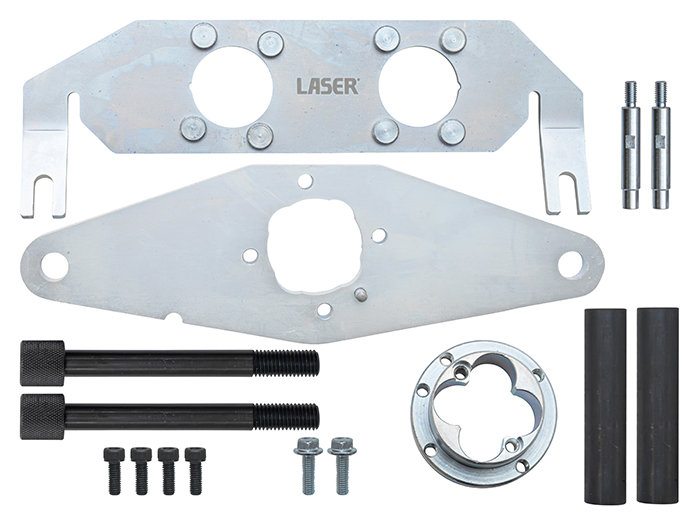

Timing Kit (DA7342)
The JLR hybrid electric 2.0 diesel uses a modified version of their non-hybrid AJ200. As such, a new timing kit is needed. This kit provides the tools required for locking the crankshaft and the camshaft as require by OEM instructions. Can also be used on E-Pace (from 2020) & F-Pace (from 2020). Engine codes: Hybrid versions of AJ20, 204DTY, 204DTD & 204DTA.
Equivalent to OEM: JLR-303-1630-1, JLR-303-1630, JLR-303-1686 & JLR-303-1689.

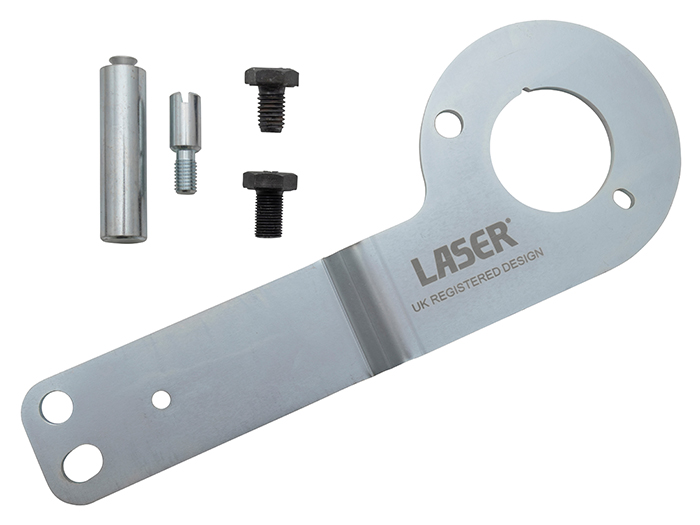

Laser Crankshaft Locking Tool (DA5391)
A specially designed tool that locks the crankshaft in its timed position from the rear of the engine when working on timing chains and other rear mounted components. Unlike the OEM method, it does not require the front pulley to be in plce or removal of the front compressor, reducing the need to work at the front of the engine. Engine applications include: AJ20, AJ-200D, 204DT, 204DTA; AJ200D, AJ200, 204DTA, 204DTH, 204DTY & 204DTD. Equivalent to OEM JLR-303-1630 but for use at the back of the engine. Made in Sheffield, UK Registered Design.

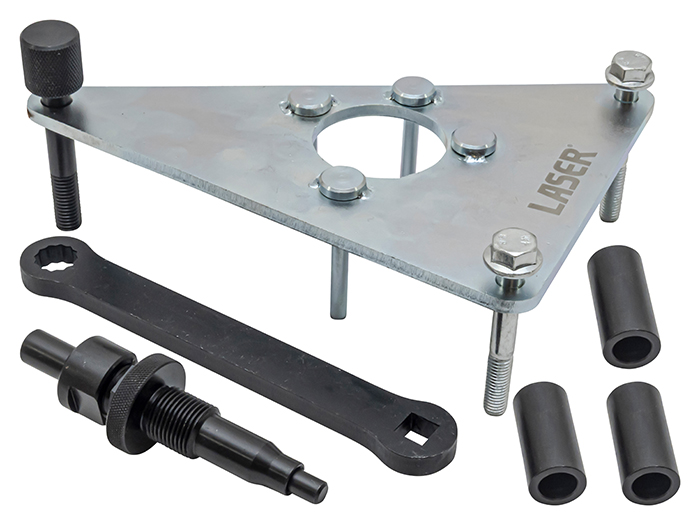

Laser Fuel Pump Alignment Tool (DA7687)
Specially developed to allow the diesel fuel pump sprocket to be locked in its timed position during pump and drive chain removal.
For engine timing see DA7686

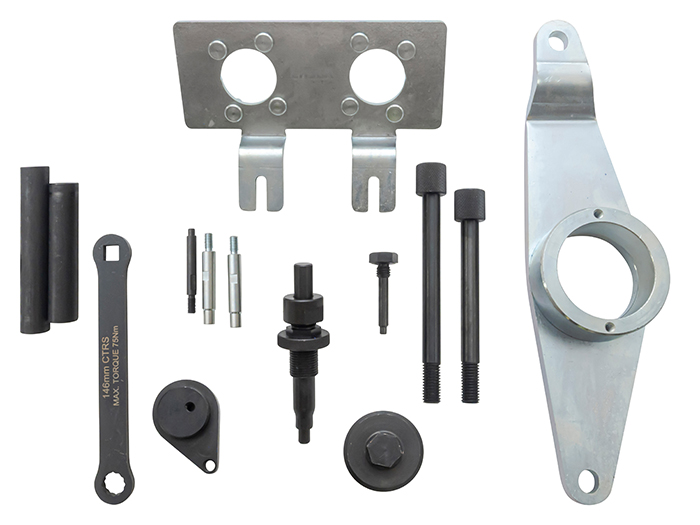

Laser Timing Kit (DA7686)
Specially developed to allow the 2020 onwards 3.0 diesel engines to be locked in their timed position during timing chain replacement or timing checks.

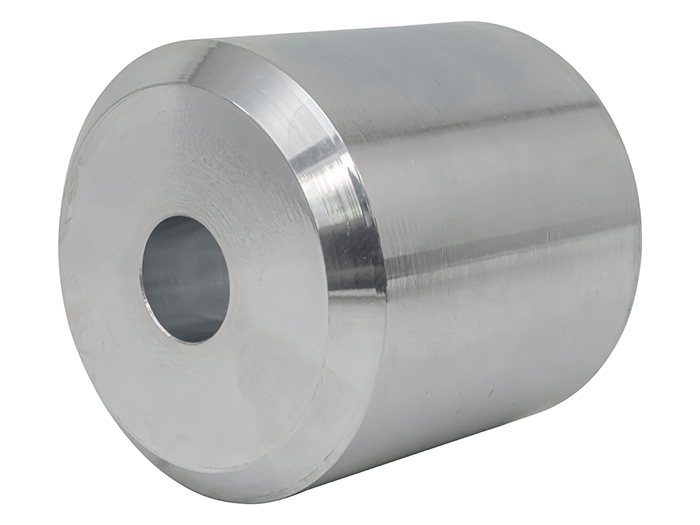

Front Crankshaft Seal Installation Tool (303-1121A)

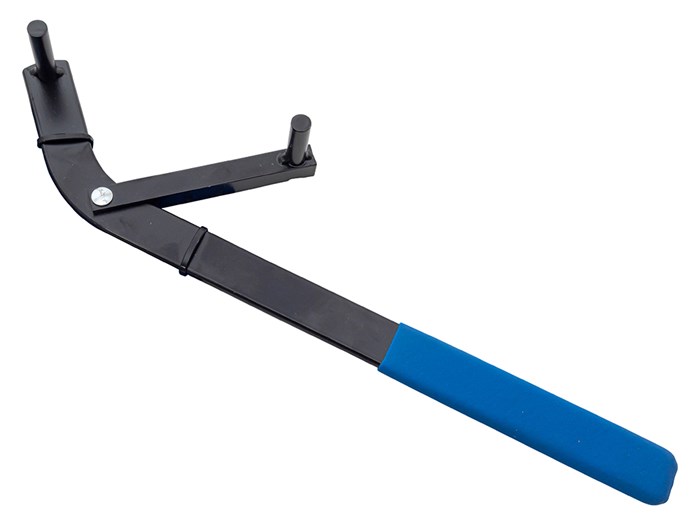

Laser Camshaft Sprocket Holding Tool (DA1770)
A multi-application wrench with variable adjustment. Reduces potential damage to camshaft. Designed to allow the sprocket to be held still whilst undoing fixings.

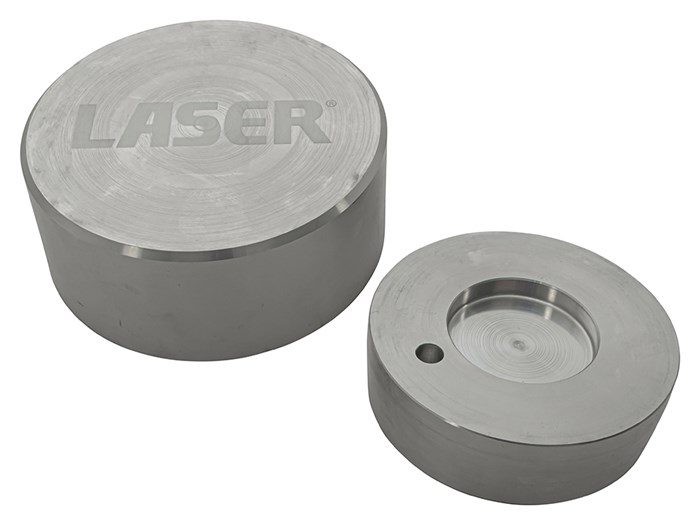

Laser Rear Crankshaft Oil Seal Fitting Tool (DA7593)
Designed to allow damage-free fitting of the rear main crankshaft oil seal on the AJ200 Ingenium engine. When performing major engine rebuild work on any engine it is easy to damage the rear main seal if it is not aligned and guided into place with care.
This kit provides a simple and effective solution to ensure correct alignment and fitting. Equivalent to OEM JLR 303-1674. Made in Sheffield.

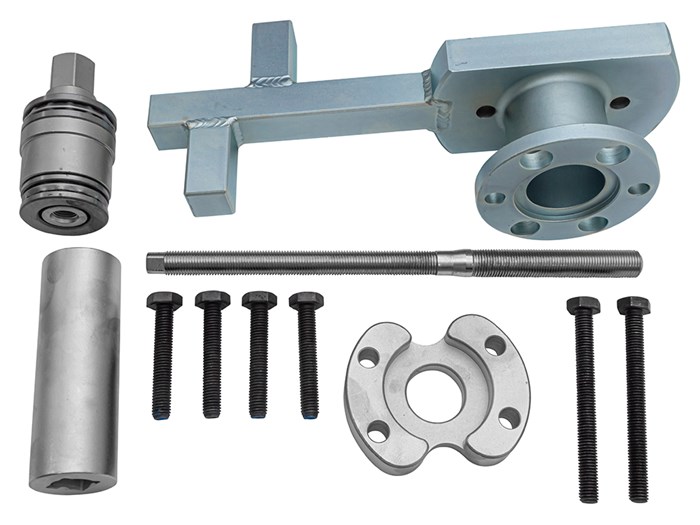

Laser Crankshaft Pulley Set (DA3536)
Engine codes include: 3.0 AJ-126/306PS, 5.0 AJ133/508PS and 508PN.
Set of tools required for the removal of the front crankshaft pulley (crankshaft vibration damper) fitted to the JLR 3.0 V6 and 5.0 V8 petrol engines. The crankshaft pulleys used on these engines are tightened to 200Nm + 270 degrees so are very tight to undo and must be held by a substantial holding tool which the kit provides. Also included in the kit are the pulley puller components required to remove the pulley without damage. Important: Ensure the force screw is well lubricated with molybdenum disulphide grease before use.

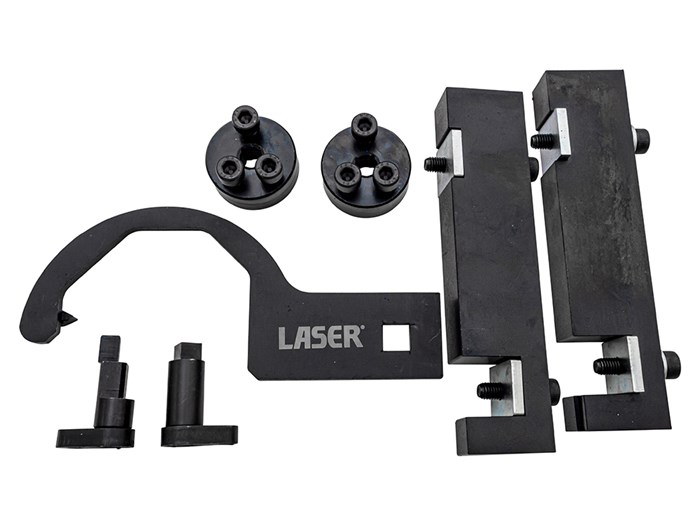

Laser Engine Locking Kit (DA3525)
Engine codes include: AJ-133/508PS and AJ-133/508PN.
Timing tools to lock the camshafts and crankshaft in their timed positions. Designed specifically for use on the post 2010 5.0 V8 petrol engines used across the JLR range. This 7 piece kit includes the camshaft, crankshaft, flywheel locking tools and the special camshaft turning tools with the tensioning wrench required to work on the engines listed. Equivalent to OEM: 303-1482, 303-1445-1, 303-1447, 303-1445-5, 303-1303 & 303-1452. Made in Sheffield.

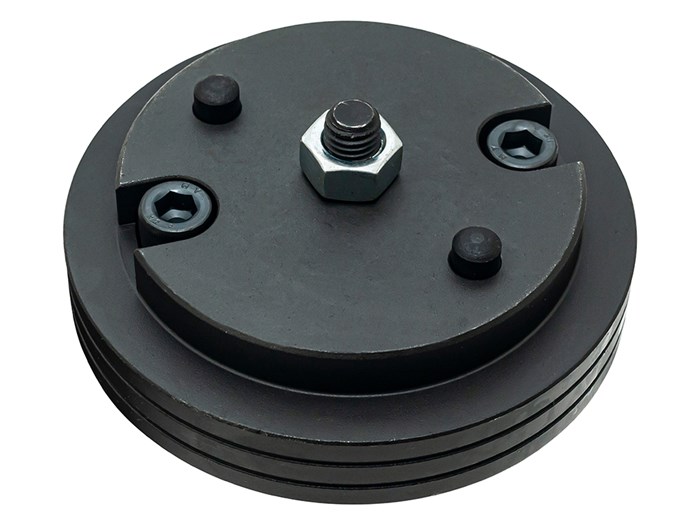

Laser Crankshaft Position Sensor Ring Installer (DA7364)
Designed to install the TDC position sensor ring on the TdV8 diesel engines found in the Range Rover and Range Rover Sport models. It is critical that the sensor ring is fitted in the correct position in relation to the crankshaft to ensure correct injection timing. Equivalent to OEM JLR-303-1237.

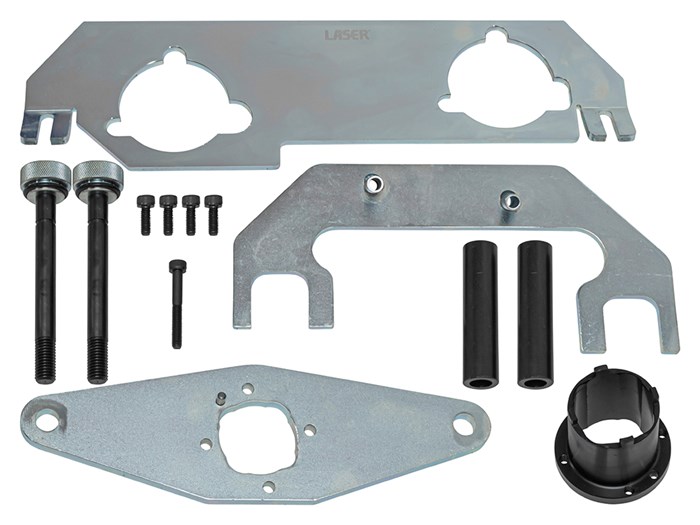

Laser Timing Kit (DA7539)
Kit contains all the essential components required to lock the JLR 2.0 Ingenium petrol engines in their timed position so that the engine timing chain can be safely removed and replaced and/or the engine timing checked. Made in Sheffield.
Equivalent to OEM JLR-303-1630, JLR-303-1635 & JLR-303-1636. Petrol engine codes: AJ-20/PT204, AJ-200/PT204, AJ-200P/PT204, AJ200P, PT204 and AJ200.

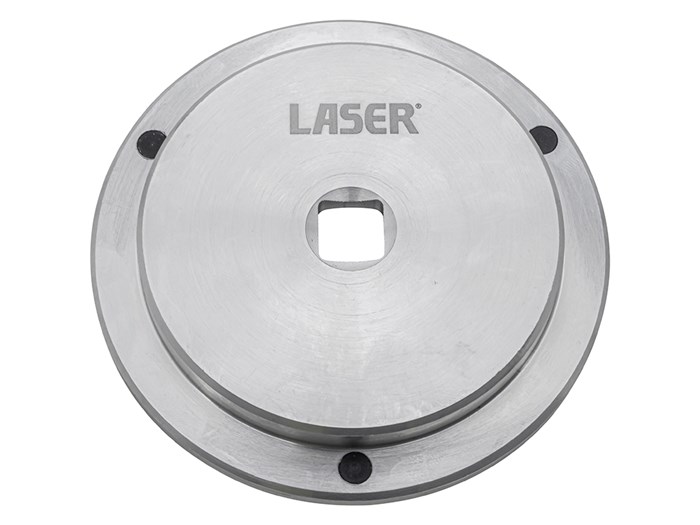

Laser Front Crankshaft Oil Seal Installation Tool (DA7360)
Designed to engage with the front bayonet style crankshaft oil seal and allow the user to remove and fit the seal. Specifically used on 2.0 AJ200 diesel engines found across the Jaguar and Land Rover ranges.
- Fitted with 1/2”D drive
- Equivalent to OEM JLR-303-1628
- Made in Sheffield

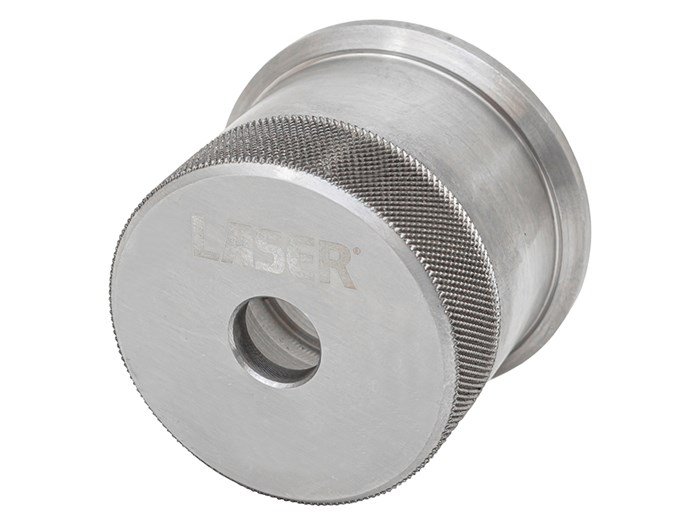

Laser Crankshaft Front Oil Seal Installation Tool (DA3246)
Designed to be used to fit the front crankshaft seal on the 2.2 DW12 diesel engines without damage to the seal or the crankshaft.
Made in Sheffield.
Equivalent to OEM JLR-303-1274.

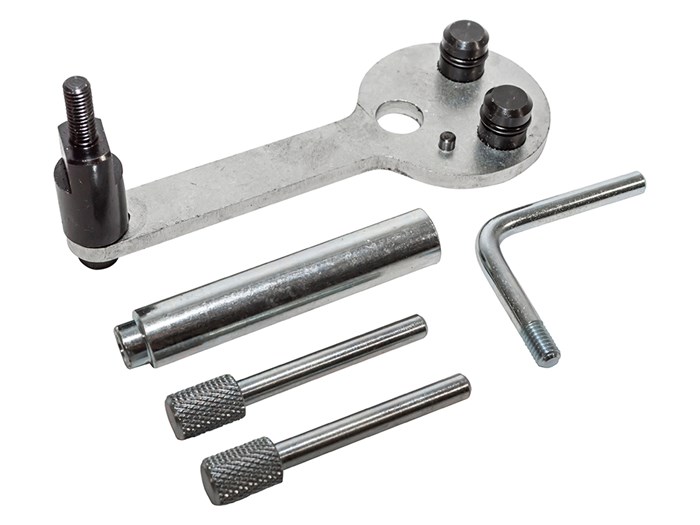

Laser Crankshaft Locking Kit (DA1899)
Used to lock and time the crankshaft and flywheel to allow the TDC sensor position to be set after removal when servicing the cam chain drive system.

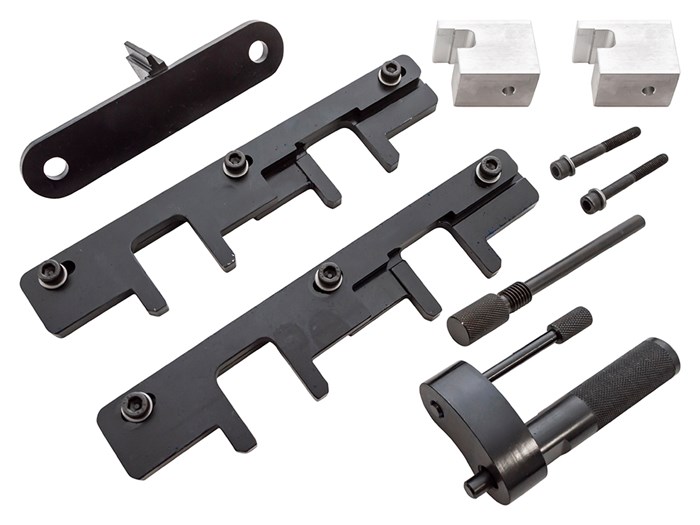

Laser Timing Tool Kit (DA1847)
Developed to allow the safe removal and replacement of the camshaft drive chains and check the engine timing on the Range Rover and Range Rover Sport 4.4 diesel engines.
- Engine codes include: 448DT (Diesel V8 4.4).
- Equivalent to OEM Tools: JLR 303-1620, 303-1568, 303-1243, 303-1571.
- Unique camshaft timing tool design - EU Registered Design

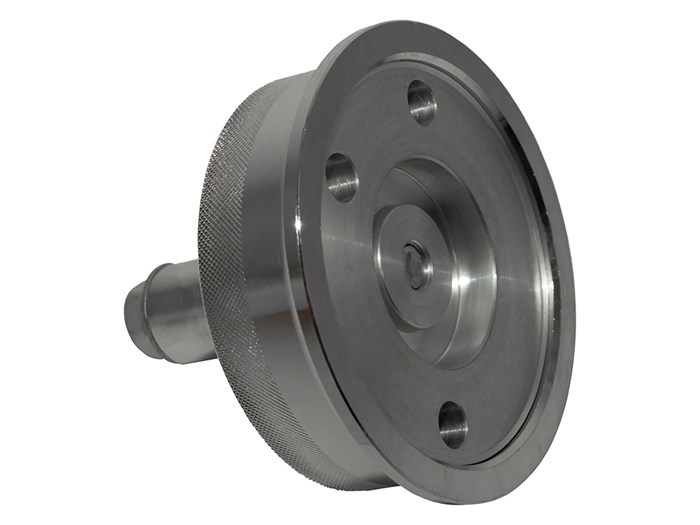

Laser Crankshaft Seal Installation Tool (DA1845)
Designed to allow the rear (flywheel end) crankshaft oil seal fitted to Land Rover 2.2 diesel engines to be installed without damage. The tool allows the rear oil seal to be pulled in to place in a controlled manner significantly reducing the chances of damaging the seal’s sealing lip.
- Equivalent to OEM 303-1271
- Use in accordance with OEM instructions.
- Keep threaded components clean and well lubricated with clean engine oil when in use.

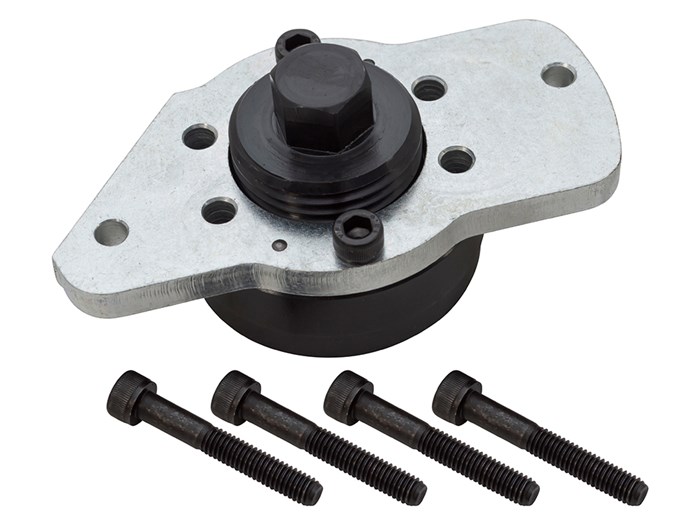

Laser Fuel Pump Locking/Removal Tool (DA1667)
Engine codes: AJ-200D, 204DT, AJ200D, AJ200, 204DTD.
Locks the fuel pump sprocket and chain in a fixed position while the pump is removed and replace.To be used with timing tool kit DA1668.
Equivalent to 303-1627

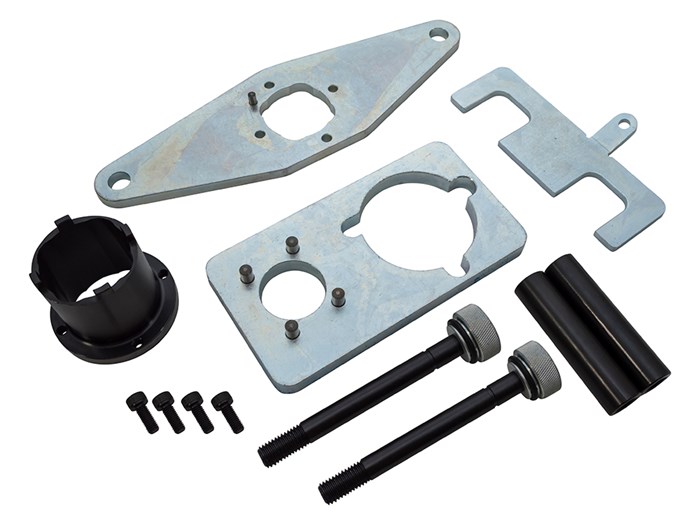

Laser Timing Kit (DA1668)
Engine codes: AJ-200D, 204DT, AJ200D, AJ200, 204DTD.
For locking the engine into the timed position so the engine timing chain can be removed/replaced and the engine timing checked.To be used with fuel pump locking tool DA1667.
Equivalent to:
303-1625 Camshaft Holding Tool
303-1631 Camshaft Adjuster Locking/ Holding Tool

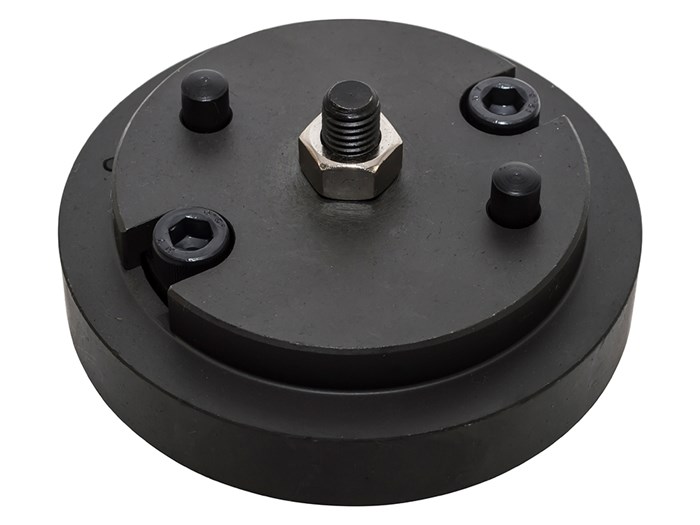

303-1630 Crankshaft Pulley Locking ToolLaser Crankshaft Trigger Wheel Installer Tool (DA6550)
Required to install the crankshaft position sensor ring when fitted with TdV6 engine (3 Powertrain). Specifically required to repair sensor wheel dropping off or cracking.
Equivalent to OEM 303-1130

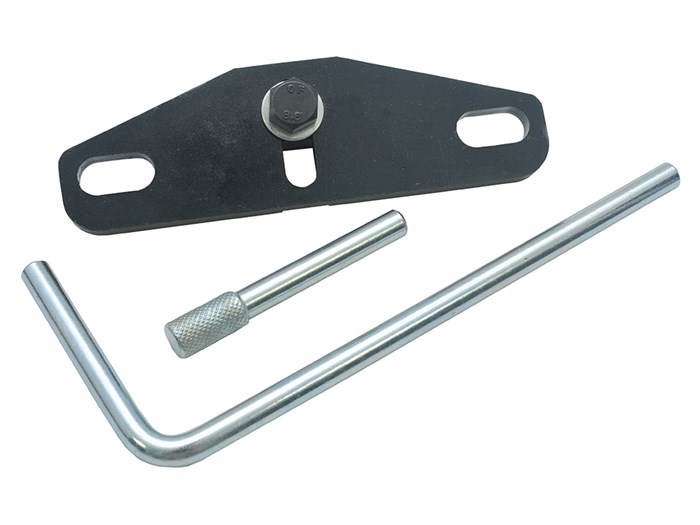

Laser Timing Kit (DA1115)
Includes Land Rover tool part numbers -
303-1277 - Camshaft pulley timing pin
303-1270/303-1059 - Flywheel locking timing pin

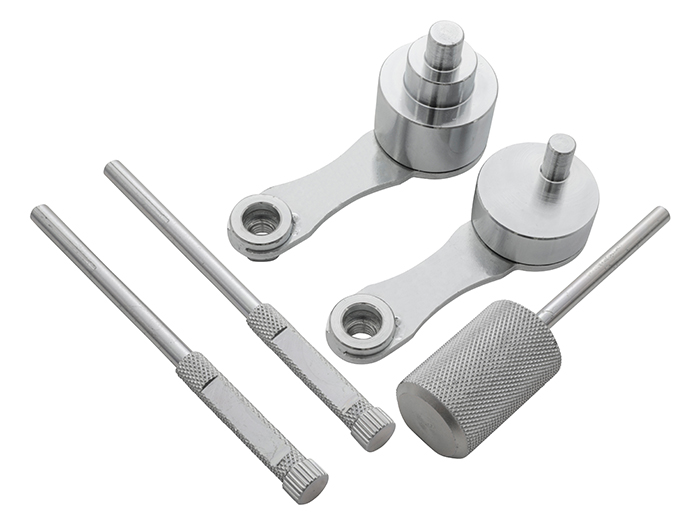

303-1272 - Flywheel/ring gear locking tool adaptorFlywheel Locking Tools & Camshaft Timing Pins (DA1120)

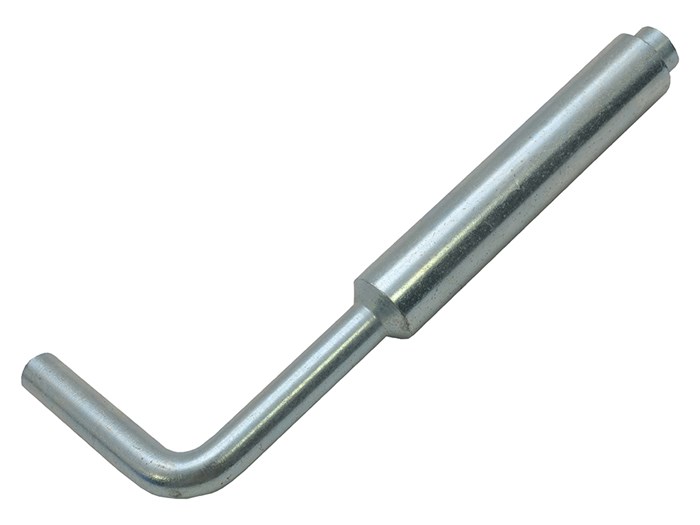

Laser Flywheel Locking Tool (DA1162)
Land Rover tool part number - 303-698

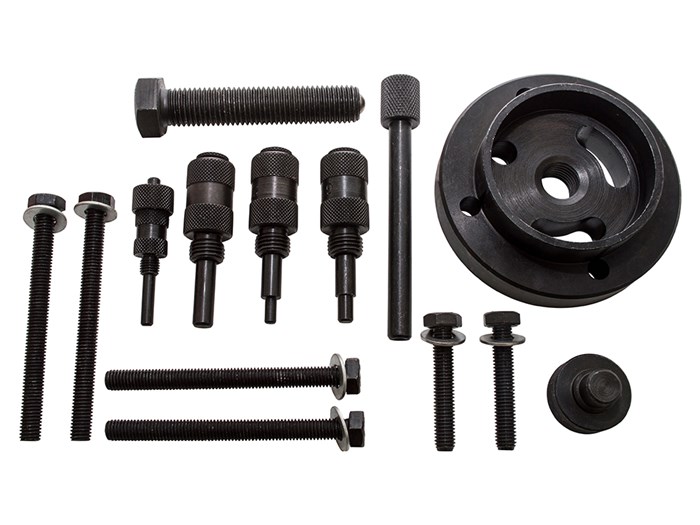

Timing Kit (DA3140)
12 piece kit

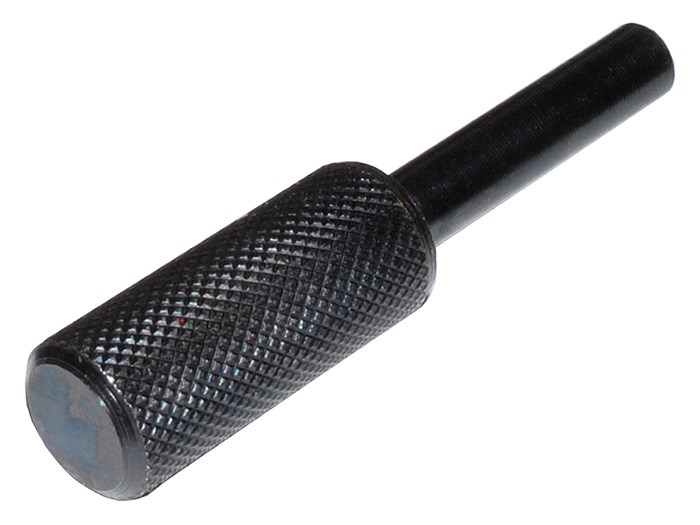

Timing Pin - Short (LRT-12-058)

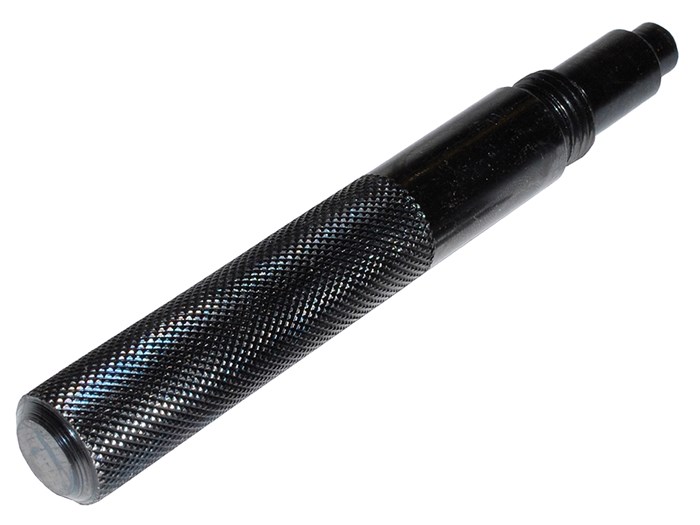

Timing Pin - Long (LRT-12-158)

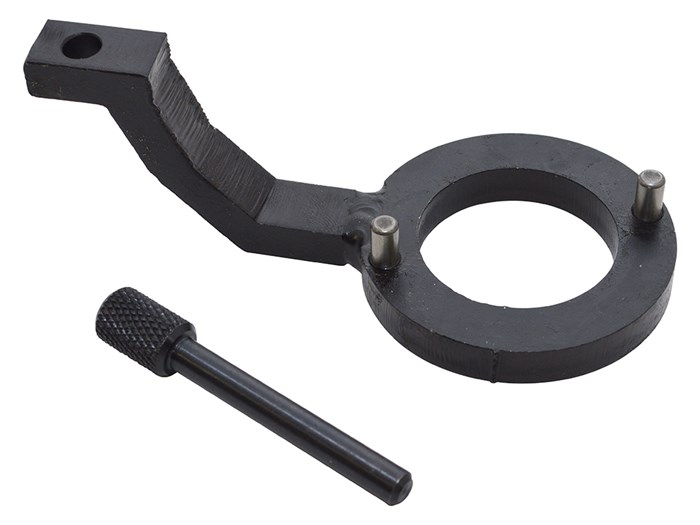

Laser Fuel Pump Locking Tool (DA6120)
For use with DA1120

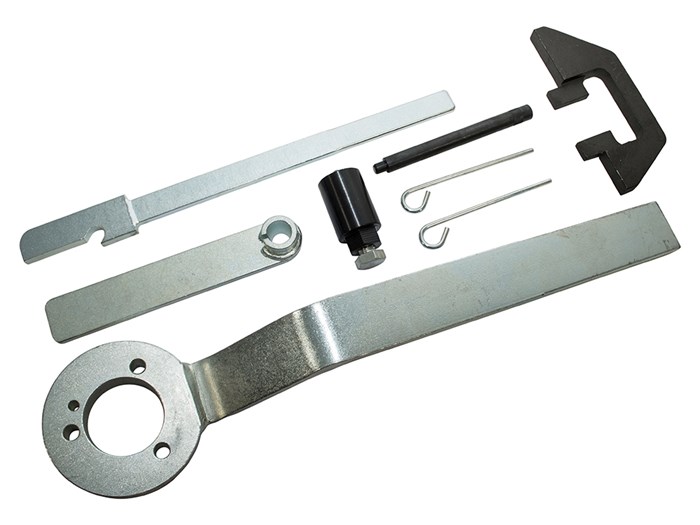

Laser Timing Kit (DA6129)
Specifically designed for the 2.5 TDS diesel engines.
Timing tool kit includes:
- Crankshaft holding tool
- Timing chain compressor
- Injection pump puller
- Shaft puller
- Crankshaft alignment pin
- Camshaft alignment tool
- Tensioner locking pins.

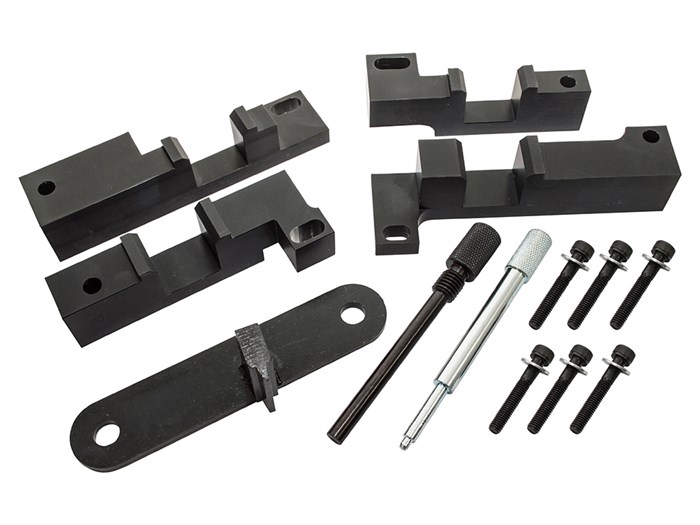

Laser Timing Kit (DA6124)
Designed to lock the camshaft and crankshaft in their timed position when performing engine rebuild or changing the cam chain. Packed in a foam tray and metal tin.
Components are equal to -
OEM 303-1236 - Camshaft alignment blocks 2 x 2 + bolts
303-1243 - Flywheel locking plate
303-1239 - Camshaft rotating pin

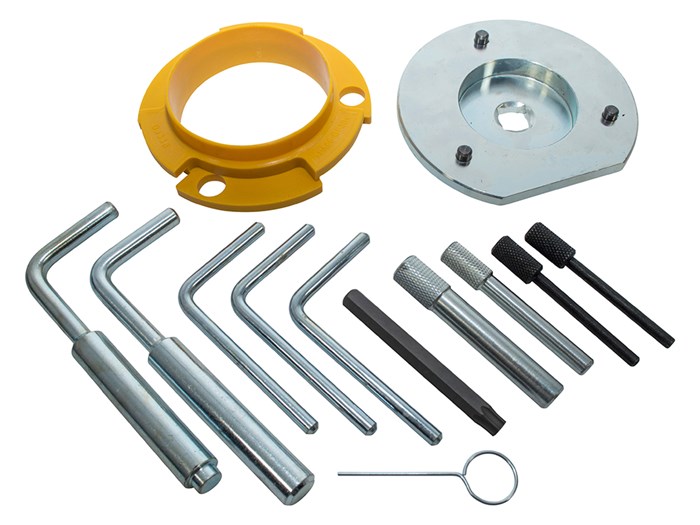

303-1238 - Crankshaft timing pinTiming Kit (DA6112)
Timing tool kit includes:
- Timing pump removal and installation tools
- Camshaft/crankshaft sprocket alignment pin
- Chain tensioner
- Fuel pump cover removal tool and fuel injection pump sprocket locking tool
Supplied in metal case with foam tray.

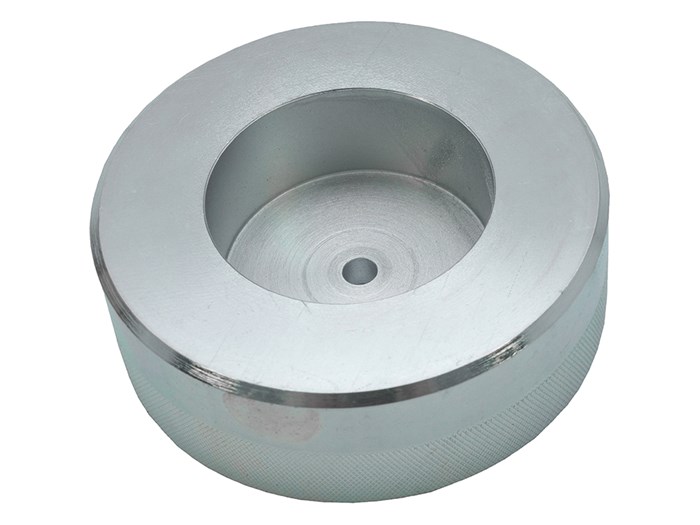

Engine Front Casing Alignment Tool (DA1160)
Equivalent to OEM - 303-682

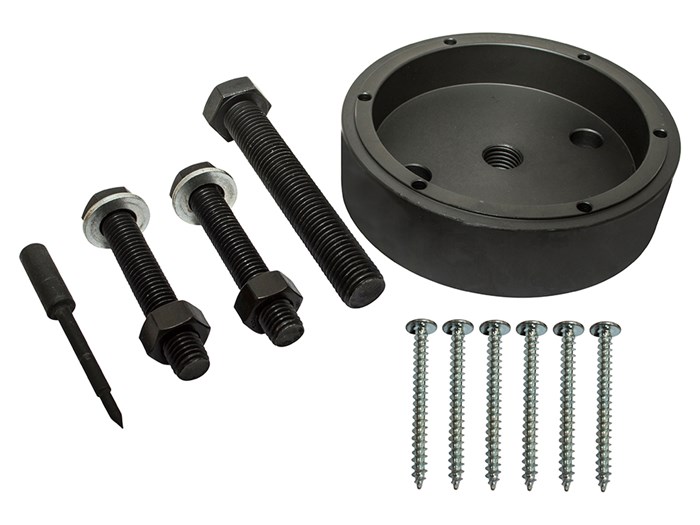

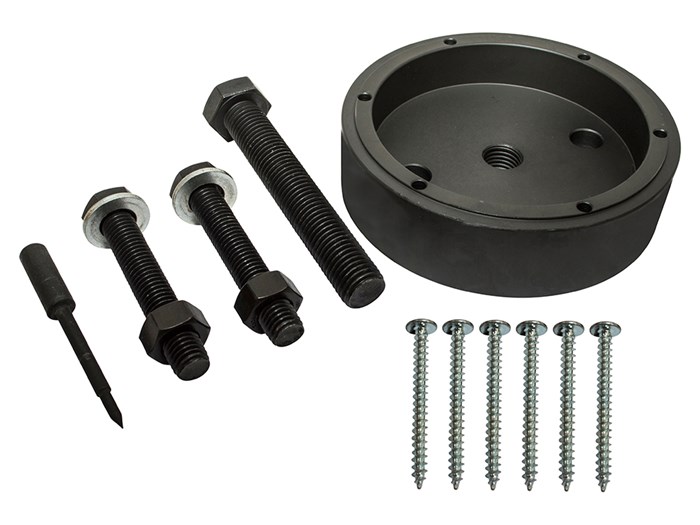

Laser Crankshaft Rear Oil Seal Removal & Installation Tool (DA6114)
Suitable for use on vehicles with the Petrol AJV8 engine. NA and supercharged.
Comes complete with punch to assist seal removal on Freelander 2 - 2.2Td4.
Equivalent to OEM 303-538.

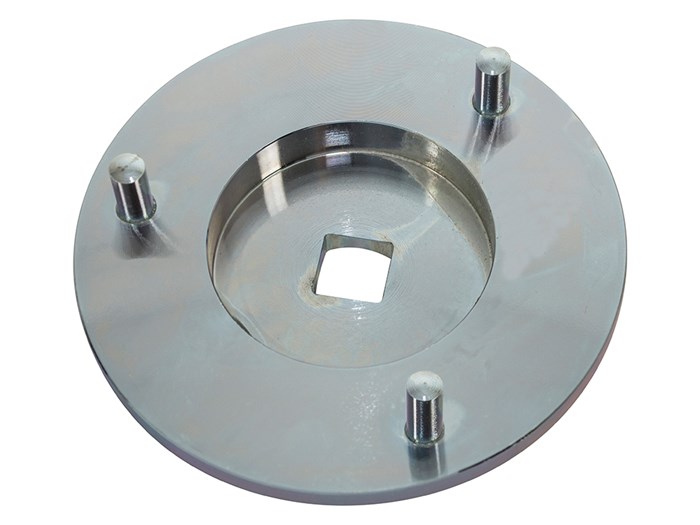

Crankshaft Seal Tool (JLR-303-1619)
For removing and installing crankshaft seal.

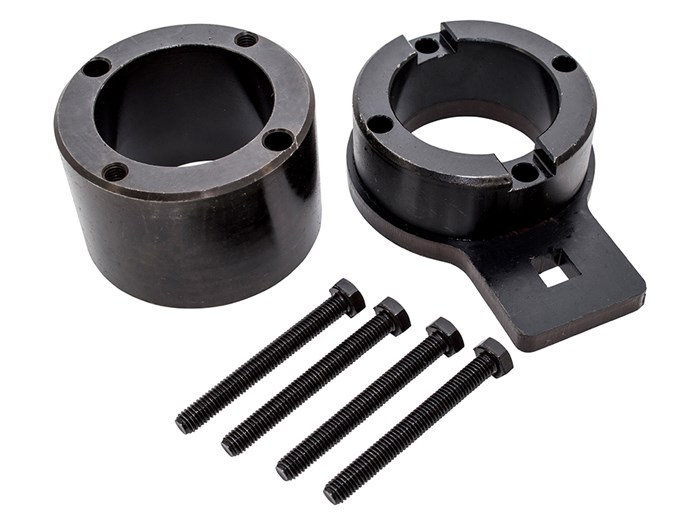

Laser Crankshaft Pulley Holding Tool (DA6133)
This tool provides the required components to hold the crankshaft vibration damper in place whilst undoing the very tight pulley mounting bolt.
Designed to be used with a 1/2”D Power Bar
Equivalent to OEM:
- 303-191
- 303-192
- 303-193
- 303-194
Applications:
- Land Rover Discovery 3
- Range Rover Sport
- Range Rover
- Jaguar S Type, XT, XJ8, XJR, XK8 with 3.2, 2.5, 4.0, 4.2 & 4.4 petrol engines
