Electric Components & Upgrades
Parts

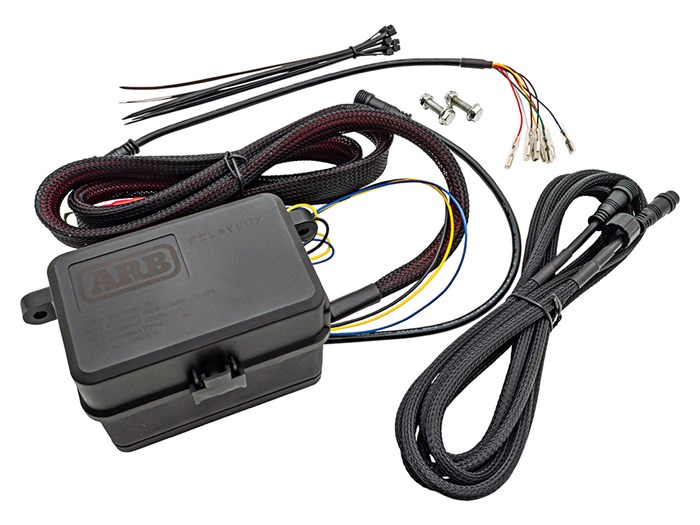

ARB 6 Channel Fused Relay Box (7450124)
Fitting electrical accessories to a vehicle can be time consuming work. Finding space to mount relays and fuses in a modern vehicle engine bay is a challenge for fitters. And the end result is multiple power cables connected to the crowded battery positive terminal, multiple drilling in the engine bay to mount different looking relays and fuses, and various messy cables running between the relays and fuses. Solve those issues with an ARB 6 Channel Fused Relay Box.
The relay box acts like a 12V power distribution hub and provides 6 output channels. Once the relay box high current cable is connected to the battery, the power connection of any load (e.g., lights) involves only one cable from the load to the screw terminal of the box.
The rated current on each channel is 20A and the rated total output current of the relay box is 60A. Each channel has its own standard blade fuse for overload protection and a 30A automotive relay for turning on and off the power. There is also built-in over temperature protection. A top lid protects the wiring within a compact flame-retardant enclosure. A quick connect cable simplifies LINX installation with pre-terminated direct connection to all 6 x LINX Switchboard outputs, as well as 2 x LINX inputs for convenient under bonnet connections to low beam and high beam.
1 x Relay box (160mm x 93.7mm x 84.3mm)
Selection of pre-installed blade fuses (3 x 20A, 2 x 10A and 1 x 5A)
6 x 30A rated relay pre-installed
1 x Pre-terminated quick connect cable
1 x 3m Extension cable with braided cable sleeve
10 x cable ties
2 x M6 x 20mm hex flanged screws and M6 locking hex nuts
User manualFor outputs, ARB recommend to use a wire gauge suitable for the load’s current draw and length of wire - for 20A loads, 12AWG (1m) and 10AWG (2m).
If using LINX, use the Switchboard Outputs (Terminals No. C3~D3) to control the relays. If using mechanical switches, feed +12V signals to control the relays.
Available in UK only

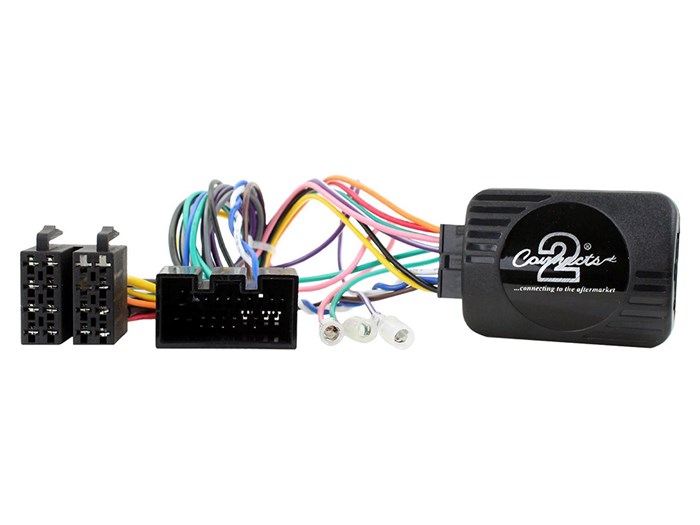

Can-Bus Steering Wheel Control Interface (DA2872)
This product retains the vehicle steering wheel controls and factory phone buttons (if vehicle is equipped) when installing a new head unit. In addition, this interface retains the parking sensors audio tones where they are generated outside of the audio system. This product is for non amplified vehicles.
Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
Safety: Allows you to keep your hands on the steering wheel and eyes on the road. Plug and play, no cutting of wires required

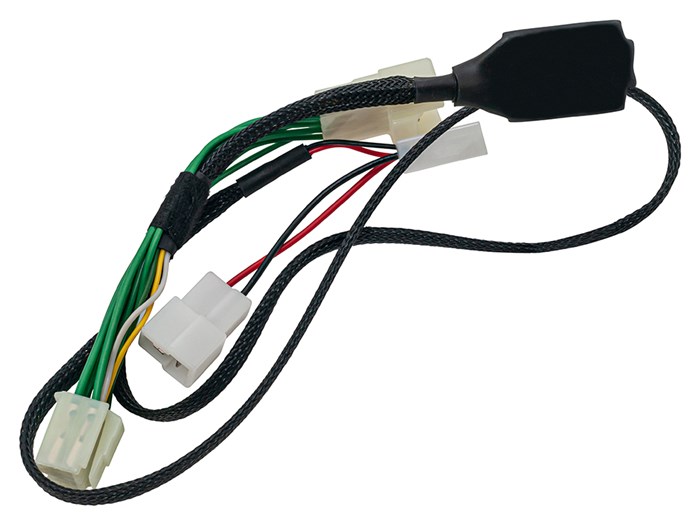

One Touch Indicator Upgrade (DA2868)
This complete plug and play upgrade adds the functionality of new vehicles equipped with lane change or 3 flash indicators to your Defender. With a simple momentary press of the indicator stalk the indicators will flash 3 times.
Note - Please check on 300Tdi models you have the later style wiring connectors to confirm this you will need to remove the lower steering cowl.

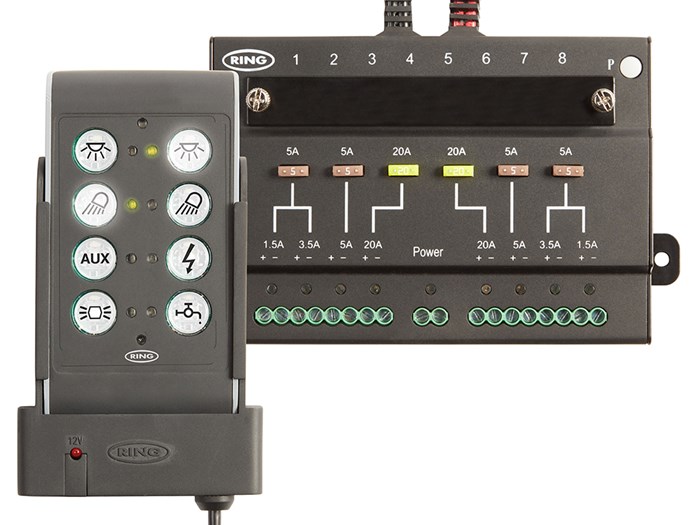

Ring Wireless Connect (DA7960)
Ring Wireless Connect is the smart way to control power to ancillary electrical products. The one central Tech Hub connects to the vehicle's 12V battery, allowing 8 ancillary electrical products to be wired to one location. Then through unique signal pairing each device can be wirelessly accessed through the switch remote.

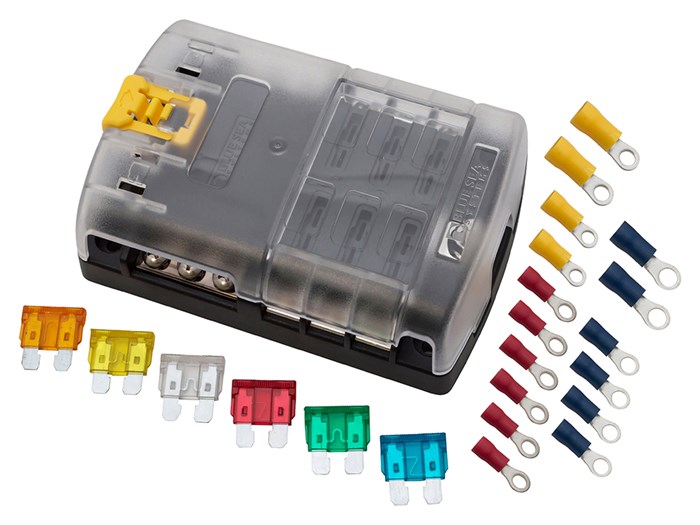

6-Way Fuse Box Kit With Crimps (DA1748)
This high quality 6 way fuse holder distribution block has an integral 6 way bus bar - meaning both live and earth connections can all be made at this fuse panel.

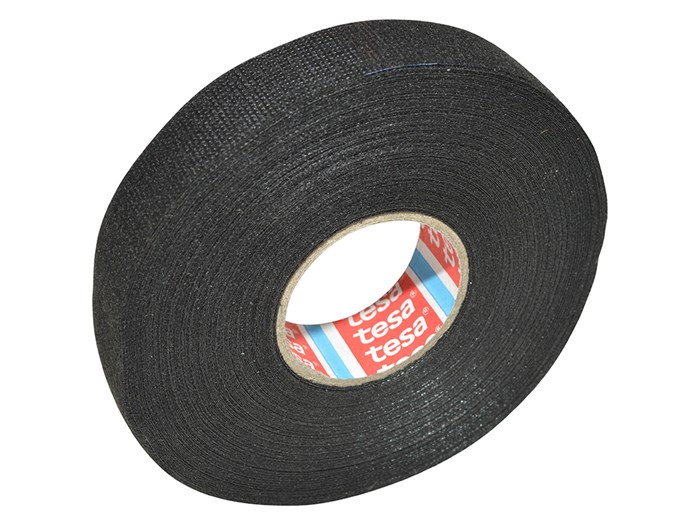

Harness Fleece Tape (DA1406)
OEM harness fleece tape used by most major OEMs including Jaguar Land Rover making ideal for repair work or to give new installations that factory made look.
- 19mm x 25M PET Fleece tape with rubber based adhesive
- Total thickness 250 µm
- Adhesion to steel 3 N/cm
- Tensile strength 37 N/cm
- Temperature resistance min. -40 °C
- Temperature resistance (3000h) 105 °C

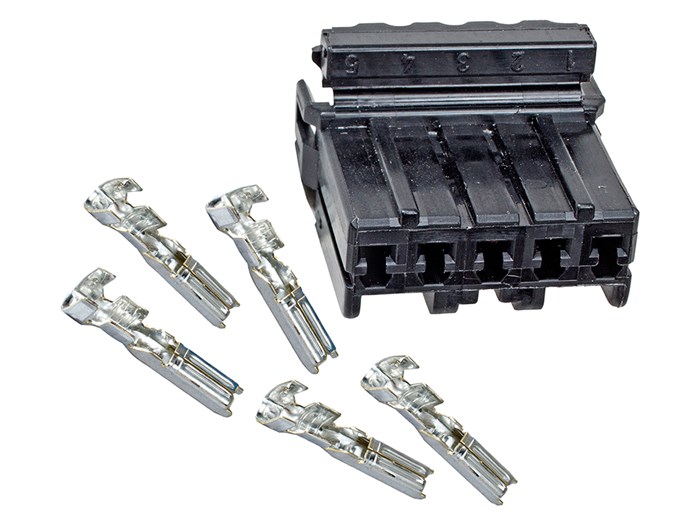

Connector Plug (DA1402)

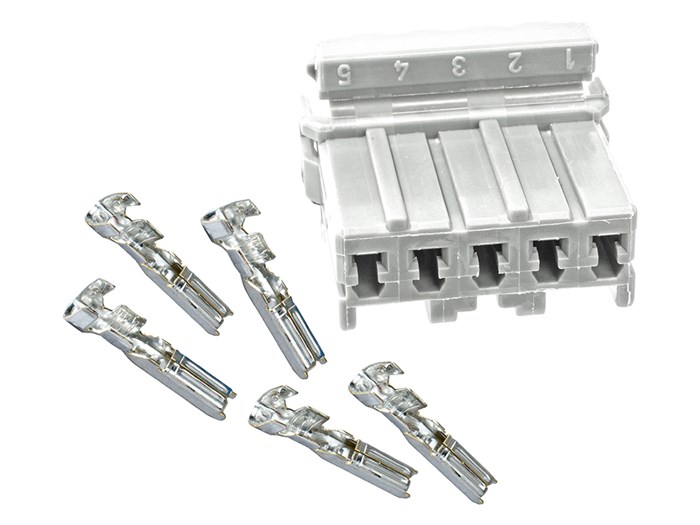

Connector Plug (DA1403)

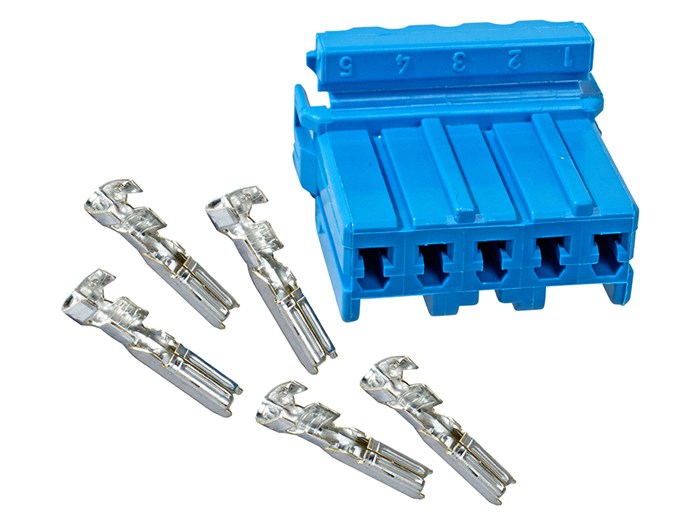

Connector Plug (DA1404)

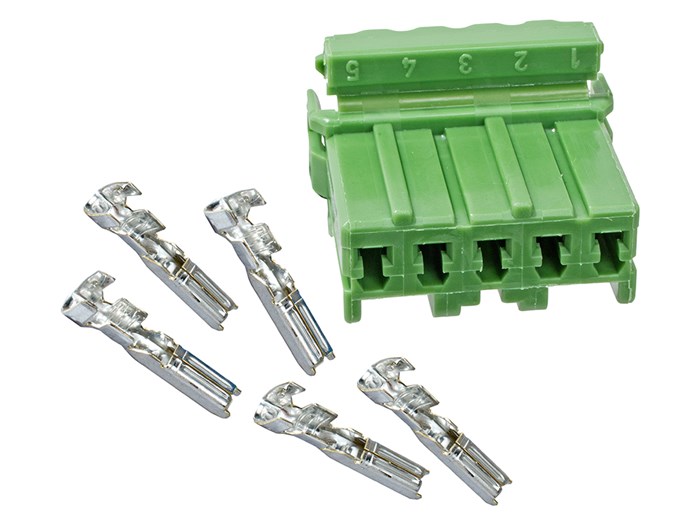

Connector Plug (DA1405)

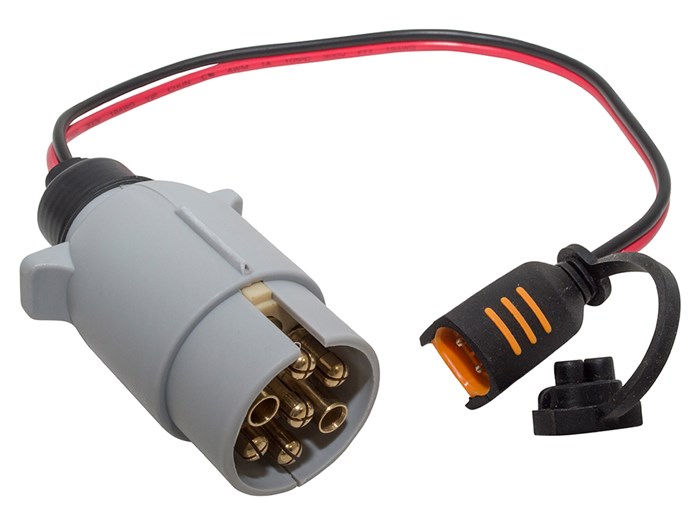

12S Plug To Comfort Connector Adaptor (DA1409)
Custom adaptor, using a genuine CTEK comfort connect adaptor, enables any CTEK charger fitted with the comfort connector system to be used to charge a vehicles battery via the 12S towing socket. The vehicle must have fully populated 12S towing electrics for this adaptor to work.

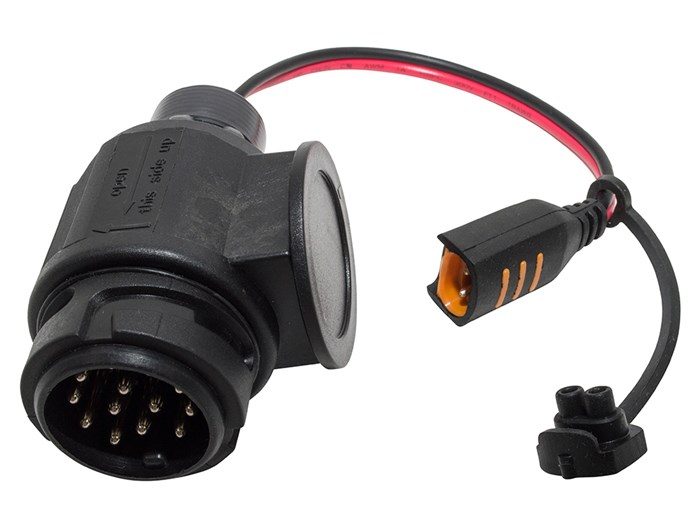

13-Pin Comfort Connector Adaptor (DA1410)
Custom adaptor, using a genuine CTEK comfort connect adaptor, enables any CTEK charger fitted with the comfort connector system to be used to charge a vehicles battery via the 13 pin towing socket. The vehicle must have fully populated 13 pin towing electrics for this adaptor to work, most factory fitted towbars and genuine manufacturer towing electrics support trailer charging.
