Light Bars
Parts

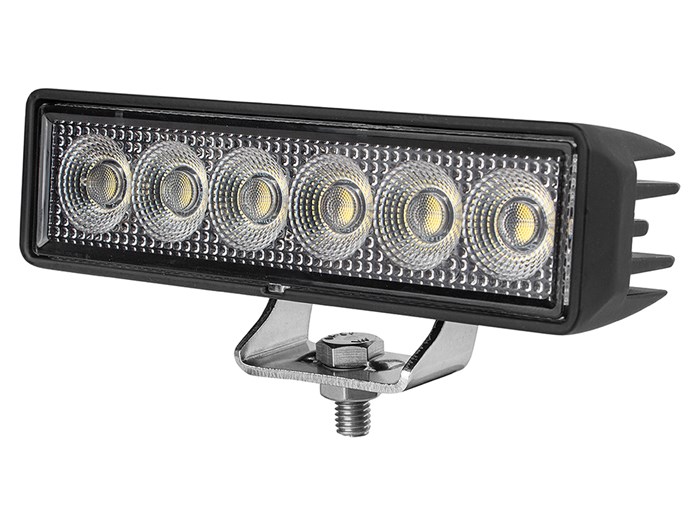

24W LED Flood Light (DA3347)
- Effect Lumens: 1,920 LM
- Beam pattern: Flood
- Voltage: 9 - 32V DC
- Colour Temperature: 6,000K
- Body: 148.5 x 40mm
- Waterproof & Dustproof: IP68 IP67
- Lifespan: 50,000 hours
- Housing: Die-cast aluminium with polyester powder coating
- Lens: Durable polycarbonate
- Hardware: Stainless steel
- Operating temperature: -40ºC to 85ºC
- Protection: Overvoltage and heating
- Certificates: E-mark approved/CE/RoHs/UKCA
- EMC Standard - CISPR25/Class 3

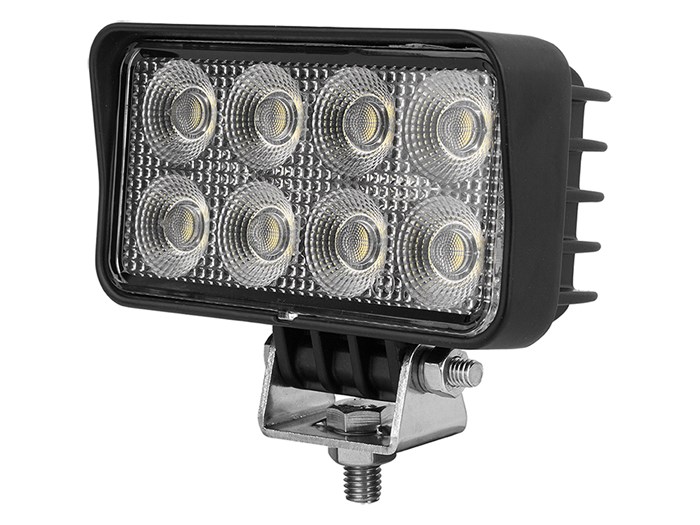

32W LED Flood Light (DA3348)
- Effect Lumens: 2,560 LM
- Beam pattern: Flood
- Voltage: 9 - 32V
- Colour Temperature: 6,000K
- Body: 111 x 61mm
- Waterproof & Dustproof: IP67
- Lifespan: 50,000 hours
- Housing: Die-cast aluminium with polyester powder coating
- Lens: Durable polycarbonate
- Hardware: Stainless steel
- Operating temperature: -40ºC to 85ºC
- Protection: Overvoltage and heating
- Certificates: E-mark approved/CE/RoHs/UKCA
- EMC Standard - CISPR25/Class 3

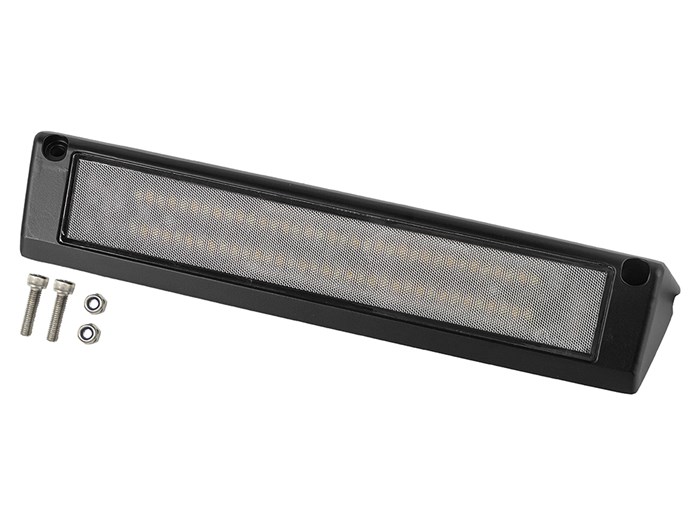

60W LED Interior/Exterior Scene Light (DA3349)
- Amber light: 30 x 1W Osram LED / Effect Lumens: 2,100 LM
- White light: 30 x 1W Osram LED / Effect Lumens: 2,400 LM
- Beam pattern: Flood
- Voltage: 9 - 32V
- Surface mounting - 45 degree tilt
- Body: 329 x 66 x 51mm
- Waterproof & Dustproof: IP67
- Lifespan: 50,000 hours
- Housing: Die-cast aluminium
- Lens - Durable polycarbonate
- Hardware - Stainless steel
- Certificates - ECE/CE/RoHs/UKCA
- EMC Standard - CISPR25, Class 3

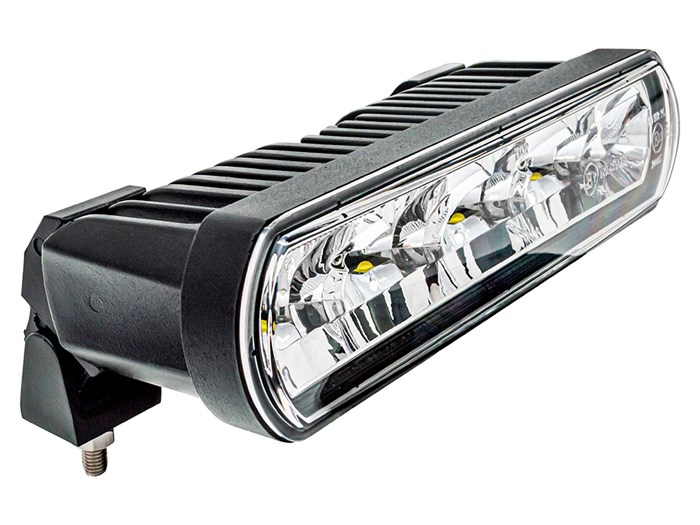

Single LED Driving Light Bar (DA3294)
- Deutsch connector
- ECE /SAE high beam pattern
- Die-cast aluminium alloy housing and polycarbonate lens
- Chrome reflector
- Adjustable brackets
- Waterproof breather screw
- Stainless steel fixings
- Lumens: Raw - 2,400 Lms & Effect - 1,950 Lms
- Power: 40W
- Voltage: 9 - 32V DC
- Colour temperature: 6,000 - 6,500K
- Work temperature: -40º to 80º
- Waterproof: IP67
- Size : 222 x 55 x 100mm
- Lifetime: More than 30,000 hours
- Certification: CE ROHS IP67 ECE R112 / R10 EMC

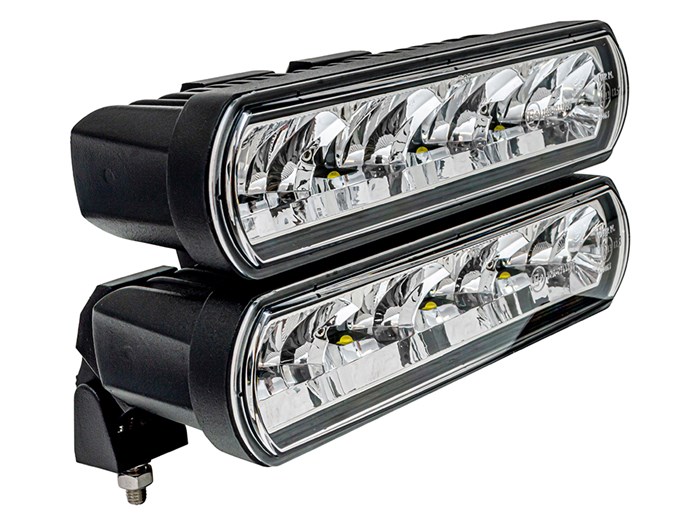

Double LED Driving Light Bars (DA3295)
- Deutsch connector, harness & stack brackets
- ECE /SAE high beam pattern
- Die-cast aluminium alloy housing and polycarbonate lens
- Chrome reflector
- Adjustable brackets
- Waterproof breather screw
- Stainless steel fixings
- Lumens: Raw - 4,800 Lms & Effect - 3,900 Lms
- Power: 40W
- Voltage: 9 - 32V DC
- Colour temperature: 6,000 - 6,500K
- Work temperature: -40º to 80º
- Waterproof: IP67
- Size : 222 x 55 x 100mm
- Lifetime: More than 30,000 hours
- Certification: CE ROHS IP67 ECE R112 / R10 EMC

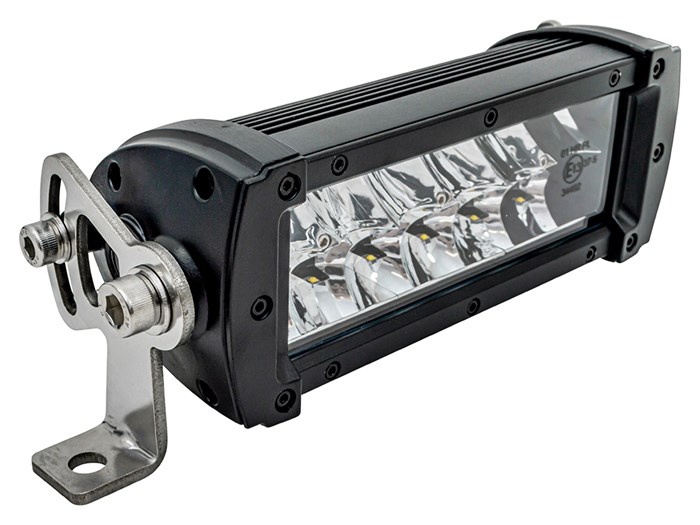

36W Dual Row LED Light Bar (DA3286)
- ECE /SAE high beam combo pattern
- Die-cast aluminium alloy housing and polycarbonate cover
- Adjustable side brackets
- Stainless steel fixings
- Lumens: Raw - 2,800 Lms & Effect - 2,100 Lms
- Angle: 40º to 60º
- Power: 36W
- Voltage: 10-32V DC
- Colour temperature: 6,000 - 6500K
- Waterproof: IP67
- Size : 213 x 84 x 83mm
- Lifetime: More than 30,000 hours
- Certification: CE ROHS IP67 ECE R112

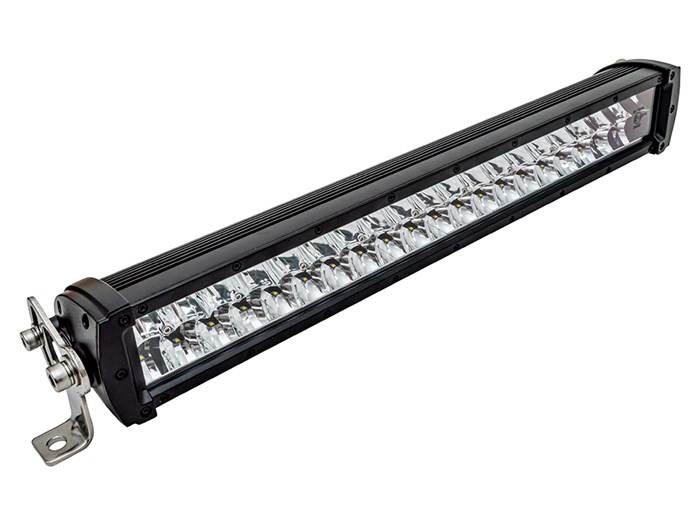

120W Dual Row LED Light Bar (DA3287)
- ECE /SAE high beam combo pattern
- Die-cast aluminium alloy housing and polycarbonate cover
- Adjustable side brackets
- Stainless steel fixings
- Lumens: Raw - 9,600 Lms & Effect - 6,800 Lms
- Angle: 40º to 60º
- Power: 120W
- Voltage: 10-32V DC
- Colour temperature: 6,000K
- Waterproof: IP67
- Size : 570 x 84 x 83mm
- Lifetime: More than 30,000 hours
- Certification: CE ROHS IP67 ECE R112

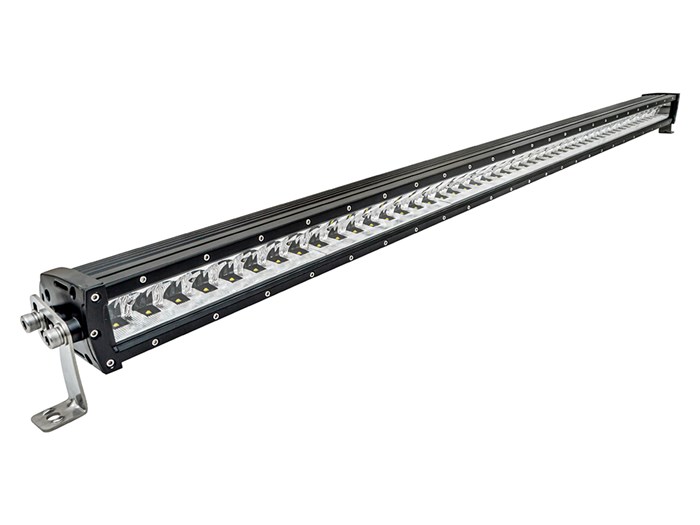

240W Single LED Light Bar (DA3293)
- ECE /SAE high beam combo pattern
- Die-cast aluminium alloy housing and polycarbonate cover
- Adjustable side brackets
- Stainless steel fixings
- Lumens: Raw - 16,800 Lms & Effect - 10,900 Lms
- Angle: 20º to 60º
- Power: 240W
- Voltage: 10-32V DC
- Colour temperature: 6,000K
- Waterproof: IP68
- Size : 1299 x 85 x 63mm
- Lifetime: More than 30,000 hours
- Certification: CE ROHS IP68 ECE R112
ARB Intensity LED Light Bar Mounting Kit (ARM603)
The ARB bull bar mounting kit provides the option to secure the Intensity LED Light Bar to bars. Available in three sizes to suit the tube diameter of vehicle’s bars. Compatible with bars with a tube with a diameter of up to 76.1mm, the mounting kits provide a solid clamp between the Intensity LED Light Bar and the bar tube to minimise vibration and movement. Constructed from extruded aluminium and with fasteners manufactured from stainless steel, the bar mounting kit has been designed to for toughness to handle various weather conditions.

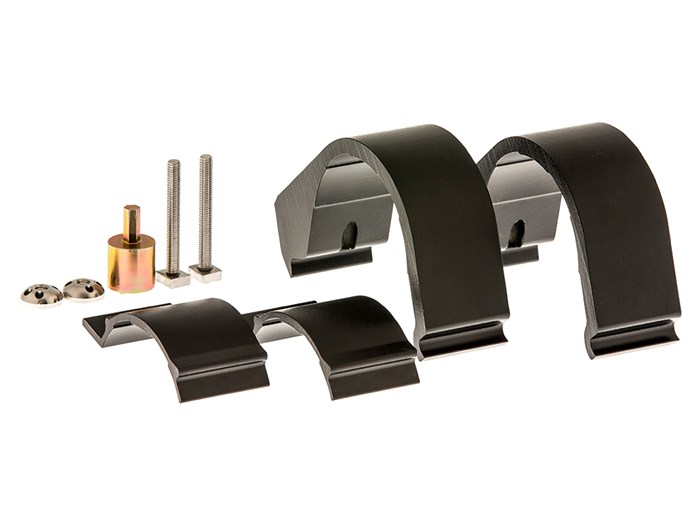

ARB Intensity LED Light Bar Mounting Kit (ARM761)
The ARB bull bar mounting kit provides the option to secure the Intensity LED Light Bar to bars. Available in three sizes to suit the tube diameter of vehicle’s bars. Compatible with bars with a tube with a diameter of up to 76.1mm, the mounting kits provide a solid clamp between the Intensity LED Light Bar and the bar tube to minimise vibration and movement. Constructed from extruded aluminium and with fasteners manufactured from stainless steel, the bar mounting kit has been designed to for toughness to handle various weather conditions.

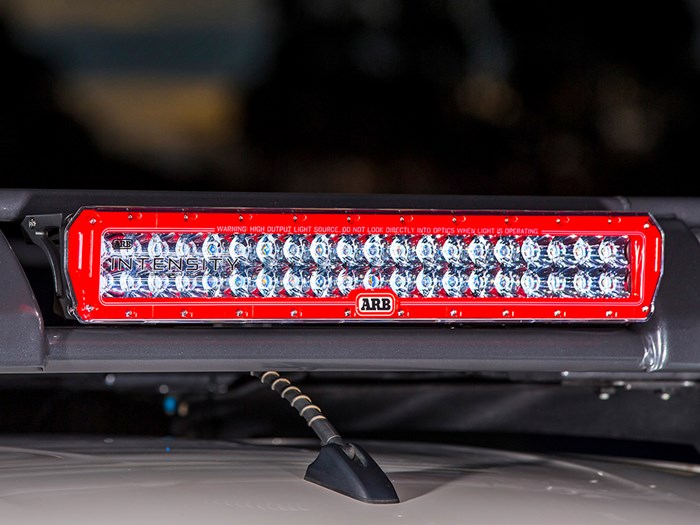

ARB Intensity Light Bar Pedestal Mounting Kit (ARMP)
Offering increased versatility by allowing fitment of the Intensity LED Light Bar to the pan of a bull bar or roof rack. For increased versatility, the pedestal mounting kit is an alternative to the bull bar mount by enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium & steel.
