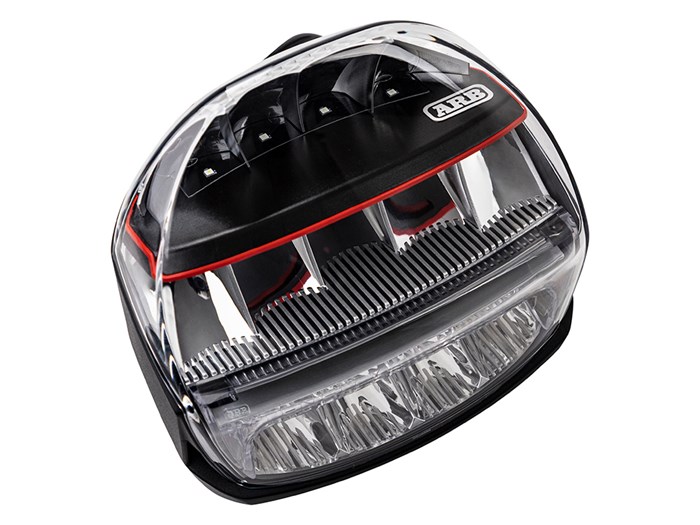

ARB Intensity IQ (ARBVX17B)
The ARB Intensity IQ has been developed from the ground up, with performance front of mind, whilst delivering a design that complements modern vehicle styling and bar work. With a subtle introduction of ARB red within the light, the free-form clear front lens, bezel-less design and CNC machined ARB logo provide a modern, classy and premium look. Packed with unique features, the Intensity IQ sets a new level of driving light design and usability.
A unique 4-optic design (Super Spot, Spot, Flood and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition. The Super Spot and Spot optics, based on free-form reflector technology, produce an even spot beam for extended distance illumination. The Flood optic has a specially designed lens to maximise the light spread for excellent foreground visibility. The Midrange optics employ a conventional parabolic reflector to illuminate the midrange area. Furthermore, the beam pattern of each of the two lights can be independently adjusted so you could run, for example, one focused on spot and one focused on flood.
Innovative Mounting Bracket
Intelligent thermal management maximises light output in all driving conditions and provides outstanding LED life expectancy. Cooling is maximised via the die cast aluminium body which acts as a massive heat sink. An innovative, sleek new mounting bracket design not only allows adjustment of light beam angle, but also provides additional mass and surface for cooling.Customisable On-board Switch
The Intensity IQ is equipped with a switch to:- Turn on and off the driving lights
- Provide 8 selectable and customisable pre-set light beams
- Disable courtesy light function (delayed light off after ignition off)
- Turn on/off Euro mode (light beam complying UNECE R149)
- Activate/deactivate demo mode
- Restore factory settings
Warranty

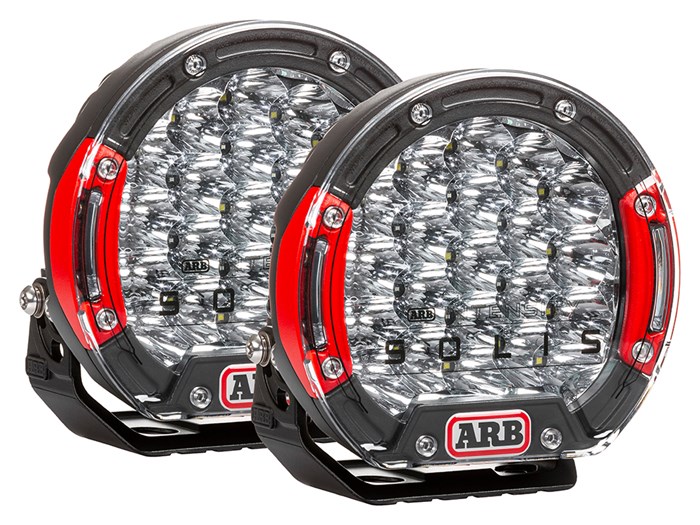

3 yearsARB Intensity Solis 21 Driving Lights (SJB21EUX2)
Incorporating in-house engineered and designed optics partnered with OSRAM LED technology and styling updates, the ARB Intensity Solis™ has pushed the limits of driving light technology once again and produced a uniquely designed, feature packed and highly capable driving light in small version and ready for legal fitment & on road use in European countries.
The ARB Intensity Solis™ 21 LED (7’’) Driving Lights are offered in dedicated combination optic tuned for on and off-road use. The lights are E-mark approved (following UNECE R149 regulation).
All ARB Intensity lights are designed to maximise the output in all driving conditions and provide increased life expectancy of the light compared with cheaper lighting options in the market. Many months were spent by the engineers designing and refining an optic that captures the most amount of light, removes flat spots on the optic face and controls the beam into the right area to reduce stray light and maximise the potential of each LED.
A single ARB Intensity Solis™ 21 provides 620m @ 1 Lux on setting #5 in off-road mode. The ARB Intensity Solis™ 21 on setting #3 provides 426m @ 1 lux with up to 40m spread from the vehicle in onroad mode. In dual combo off-road configuration, the distance down the road is a very impressive 877m @ 1 lux on setting #5 and dual combo configuration on setting #3 on-road modes it’s a competitive 603m @ 1 lux.
As well as distance, a warmer light colour helps to reduce eye strain over long driving periods and improves driver comfort while assisting to reduce fatigue.
ARB Intensity Solis 36 Spot Light (SJB36S)
The ARB Intensity Solis provides a whole new level to the ARB Intensity range of driving lights and bars. Introducing digital dimming control and providing a massive 1 lux @ 1,032m for an individual spot beam via the 30 x 4W combined with 6 x 10W high output OSRAM LEDS provides a smooth driving beam.
- Revolutionary update of the Intensity light
- New colour design and shape|
- New inter-changable bezels
- Superior grade LEDs and electronics
- Digital dimming control
- Unique ARB engineered reflectors
- Input - 10 - 30V
Power - 165W
Current draw - 12.4A @132.V
Output - raw - 18,178 lumens
Output - effective - 9,546 lumens
1 Lux reading - 1,032m
Spread - 6 degrees
Input cable length - 450mm
Operating temperature - -40•C to +65*C
Colour temperature - 5,700 Kelvin
Weight - 3.3kg
Connector - 4-pin AT waterproof plug
Dimensions (W x H x D) - 225 x 220 x 120mmHigh Pressure Die Cast Aluminium Bracket & Housing
- Scalloped back - more bar fitment possible
- Improved heatsink and UV stabilization
- Adjustable bracket
- Pressure tested breather
Brackets
- Various mounting options
- Vertical & horizontal mounting
- Simplified fitting
- Torx security fasteners
Solis - Touchpad
- Silicone touch pad
- Intuitive feel touch - no eyes off the road
- Simple 3 button control
- Easy fitment
- Cable can be directed at back or out bottom
- Percentage changes - 5%, 25%, 50%, 75%, 100%
- Silicone sleeved for durability and protection
- 58mm (L) x 10mm (D) x 25mm
- The touchpad is required to operate the ARB Intensity Solis™ lights if no LINX system is connected
- Compatible With Linx
Solis can be fully integrated into LINX. The customer will need to purchase a patch lead that is simple to install + set up the new light and its features within the LINX system. Features include custom pre-sets, infinite dimming control, courtesy light feature and dedicated Solis icons and function.

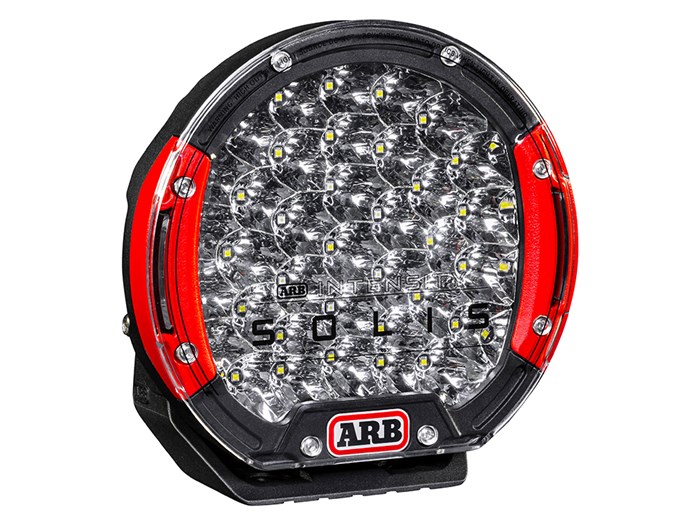

ARB Intensity Solis 36 Flood Light (SJB36F)
The ARB Intensity Solis provides a whole new level to the ARB Intensity range of driving lights and bars. Introducing digital dimming control and providing a massive 1 lux @ 1,032m for an individual spot beam via the 30 x 4W combined with 6 x 10W high output OSRAM LEDS provides a smooth driving beam.
- Revolutionary update of the Intensity light
- New colour design and shape
- New inter-changable bezels
- Superior grade LEDs and electronics
- Digital dimming control
- Unique ARB engineered reflectors
Input - 10 - 30V
Power - 165W
Current draw - 12.4A @132.V
Output - raw - 18,178 lumens
Output - effective - 8,333lumens
1 Lux reading - 729m
Spread - 11 degrees
Input cable length - 450mm
Operating temperature - -40•C to +65*C
Colour temperature - 5,700 Kelvin
Weight - 3.3kg
Connector - 4-pin AT waterproof plug
Dimensions (W x H x D) - 225 x 220 x 120mmHigh Pressure Die Cast Aluminium Bracket & Housing
- Scalloped back - more bar fitment possible
- Improved heatsink and UV stabilization
- Adjustable bracket
- Pressure tested breather
Brackets
- Various mounting options
- Vertical & horizontal mounting
- Simplified fitting
- Torx security fasteners
Solis - Touchpad
- Silicone touch pad
- Intuitive feel touch - no eyes off the road
- Simple 3 button control
- Easy fitment
- Cable can be directed at back or out bottom
- Percentage changes - 5%, 25%, 50%, 75%, 100%
- Silicone sleeved for durability and protection
- 58mm (L) x 10mm (D) x 25mm
- The touchpad is required to operate the ARB Intensity Solis™ lights if no LINX system is connected
Compatible With Linx
Solis can be fully integrated into LINX. The customer will need to purchase a patch lead that is simple to install + set up the new light and its features within the LINX system. Features include custom pre-sets, infinite dimming control, courtesy light feature and dedicated Solis icons and function.

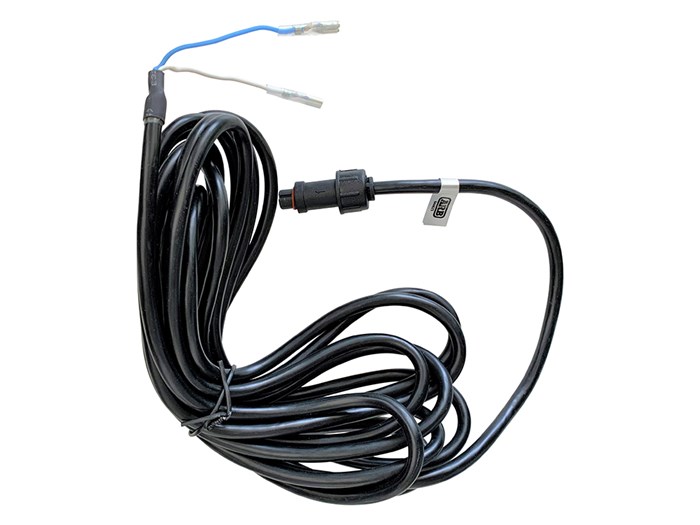

ARB Intensity Solis Linx Patch Cable (SJBLINX)
The ARB LINX Accessory Interface is your one-stop controller for all your off-road accessories. For software version 1.8 and up, LINX is now your optimal controller for your ARB Intensity Solis driving lights.
Easily adjust light dimming, fade rate, set multiple lighting modes, and more through a simple interface. Keep your dash clear and switch-free with ARB LINX, now integrated with your ARB Intensity Solis driving lights.
- Requires ARB LINX Accessory Interface
- Requires ARB Intensity Solis Driving Lights
- Enables up to 4 different preset lighting modes with ARB LINX
- Enables LINX-controlled dimming feature for ARB Intensity Solis
- Customize fade rate turning on/off ARB Intensity Solis lights
- Set brightness for normal use and courtesy-light use
- Enables ARB Intensity Solis lights as daytime running lights (in accordance with local laws)

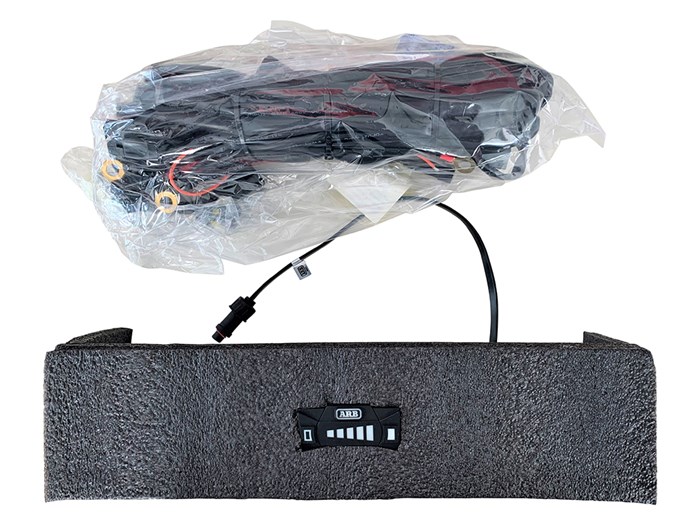

ARB Intensity Solis Wiring Loom & Dimmer Touchpad (SJBHARN)
- Silicone touch pad
- Intuitive feel touch - no eyes off the road
- Simple 3 button control
- Easy fitment
- Cable can be directed at back or out bottom
- Percentage changes - 5%, 25%, 50%, 75%, 100%
- Silicone sleeved for durability and protection
- 58mm (L) x 10mm (D) x 25mm
- The touchpad is required to operate the ARB Intensity Solis™ lights if no LINX system is connected
- 30 x 4W OSRAM high output LEDS
- 6 x 10W OSRAM high output LEDS
- Total of 36 LEDs
- High pressure die-cast housing with improved heat-sink and UV stabilization
- High pressure die-cast bracket with pinning holes
- Integrated ARB thermal management
- In-built digital dimming LED driver control
- Unique ARB engineered spot & flood reflectors
- 4-pin high amperage waterproof connectors
- 50K lifespan
- Clean and crisp light with a refined colour temperature
- Pressure tested breather
- Reverse polarity
- Mil spec vibration
- IP68
- Over & under voltage
- Compatible with LINX
- Protected against RFI/EMC interference
- RoHS, CE & ECE R10 compliant
- Security TORX hardware included

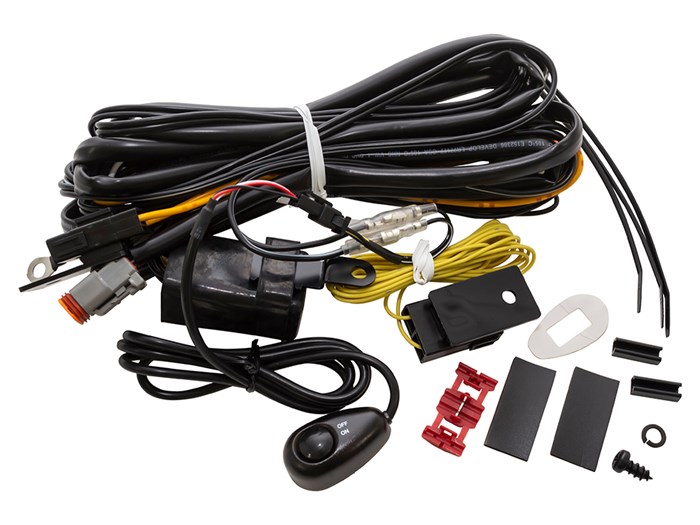

ARB Intensity LED Wiring Harness (3500520)
- Pre-assembled plug-&-play design
- Uses 105°C-rated automotive-grade wiring and waterproof Deutsch DT-06 connectors with heavy-duty relay system
- Protected by rubber moisture cover
- 'Mouse-style' fuse-protected LED push button relay switch
- Includes detailed instructions and mounting hardware for easy installation
- Rated for 1 x pair of lights up to 130W each
ARB AR21 Intensity LED Flood Light (AR21FV2)
1 x Flood Light
1 x Clear Cover

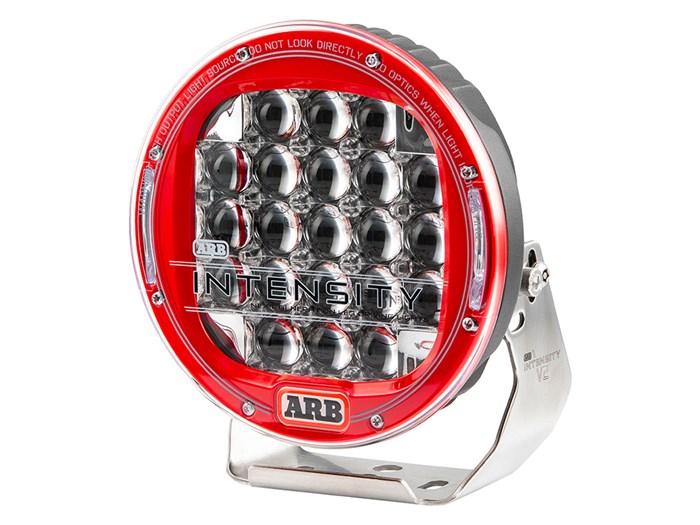

1 x Stainless steel mountingARB AR21 Intensity LED Spot Light (AR21SV2)
1 x Spot Light
1 x Clear Cover

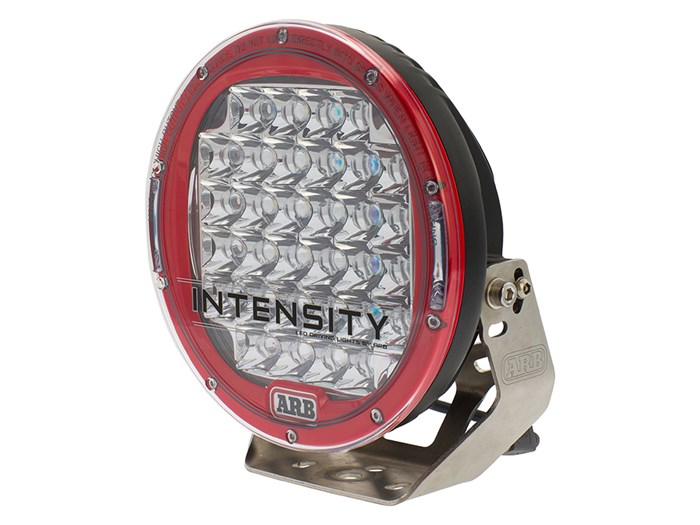

1 x Stainless steel mountingARB AR32 Intensity LED Flood Light (AR32F)
Engineered in Australia, the ARB Intensity LED light range has been specifically designed to meet the demanding requirements of 4WDers throughout the world.
From producing white light that is the closest possible imitation of sunlight, to a virtually indestructible polycarbonate lens, these lights are the premium choice. Unlike high intensity discharge (HID) lights, the LED range does not require time to warm up, and performs brilliantly on uneven roads by producing a broad field of light that helps diffuse vibration.
Submersible to 3m, the ARB Intensity LED lights have been vibration tested to military specifications to ensure they can withstand extended periods of extreme conditions to keep the road ahead brightly lit.
Intensity LED Flood Light
Submersible to 3m, the AR32 Intensity LED flood light is vibration tested to military specifications to ensure it can withstand extended periods of extreme conditions.Dimensions - W 220.5mm x H 245.5mm
ARB AR32 Intensity LED Spot Light (AR32SV2)
Engineered in Australia and manufactured in the United States, the ARB Intensity LED light range has been specifically designed to meet the demanding requirements of off-roaders throughout the world.
From producing white light that is the closest possible imitation of sunlight, to a virtually indestructible polycarbonate lens, these lights are the premium choice. Unlike high-intensity discharge (HID) lights, the LED range does not require time to warm up and performs brilliantly on corrugated roads by producing a broad field of light that helps diffuse vibration.
Submersible to 10ft, compliant for radio interference suppression, the ARB Intensity LED lights have been vibration tested to military specifications to ensure they can withstand extended periods of heavy corrugations and extreme conditions to keep the road ahead brightly lit.
The light features an ARB engineered heatsink with 15 fins to help prevent heat damage to the LEDs and surrounding components. The heatsink also ensures the LED circuits run cooler and produce optimum light output while extending the lights longevity.
Dimensions - W 220.5mm x H 245.5mm

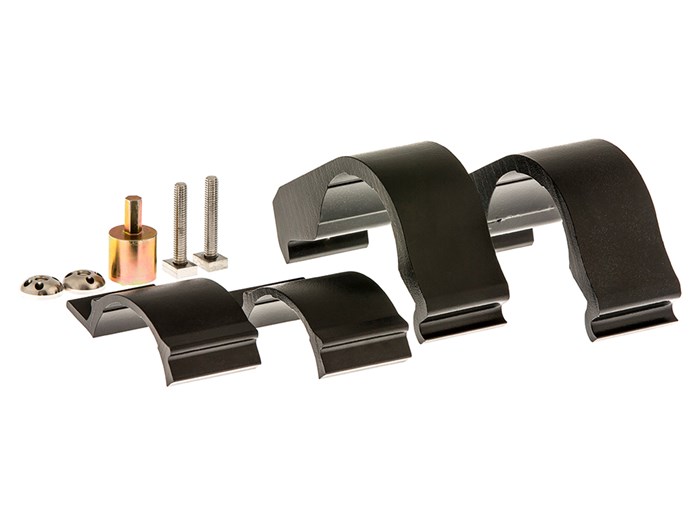

ARB Intensity LED Light Bar Mounting Kit (ARM603)
The ARB bull bar mounting kit provides the option to secure the Intensity LED Light Bar to bars. Available in three sizes to suit the tube diameter of vehicle’s bars. Compatible with bars with a tube with a diameter of up to 76.1mm, the mounting kits provide a solid clamp between the Intensity LED Light Bar and the bar tube to minimise vibration and movement. Constructed from extruded aluminium and with fasteners manufactured from stainless steel, the bar mounting kit has been designed to for toughness to handle various weather conditions.

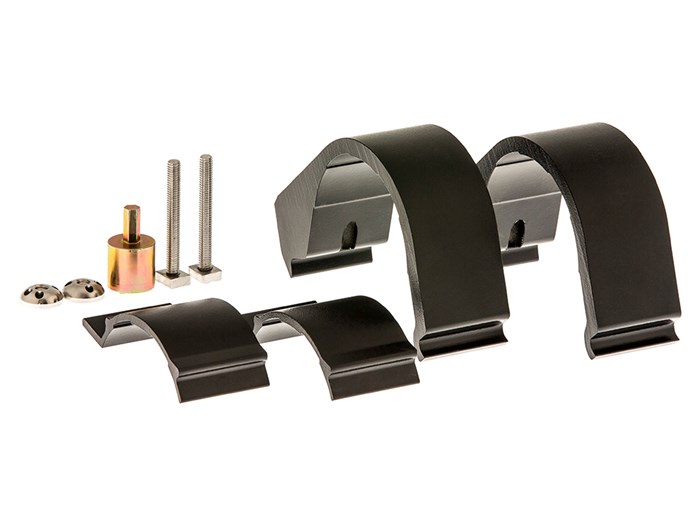

ARB Intensity LED Light Bar Mounting Kit (ARM761)
The ARB bull bar mounting kit provides the option to secure the Intensity LED Light Bar to bars. Available in three sizes to suit the tube diameter of vehicle’s bars. Compatible with bars with a tube with a diameter of up to 76.1mm, the mounting kits provide a solid clamp between the Intensity LED Light Bar and the bar tube to minimise vibration and movement. Constructed from extruded aluminium and with fasteners manufactured from stainless steel, the bar mounting kit has been designed to for toughness to handle various weather conditions.

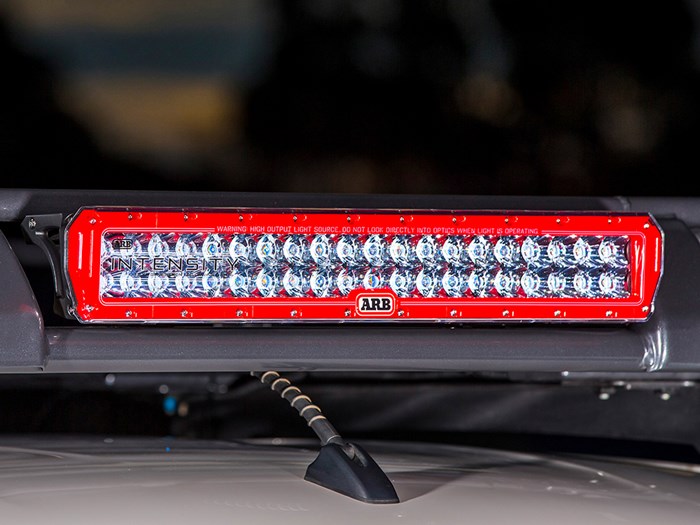

ARB Intensity Light Bar Pedestal Mounting Kit (ARMP)
Offering increased versatility by allowing fitment of the Intensity LED Light Bar to the pan of a bull bar or roof rack. For increased versatility, the pedestal mounting kit is an alternative to the bull bar mount by enabling fitment to the pan of a bull bar or a roof rack. All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminium & steel.
