Britpart Pulling Power Winches
Britpart Pulling Power Winches, powerful and reliable winches for Land Rovers - a must have when off-roading!
Parts

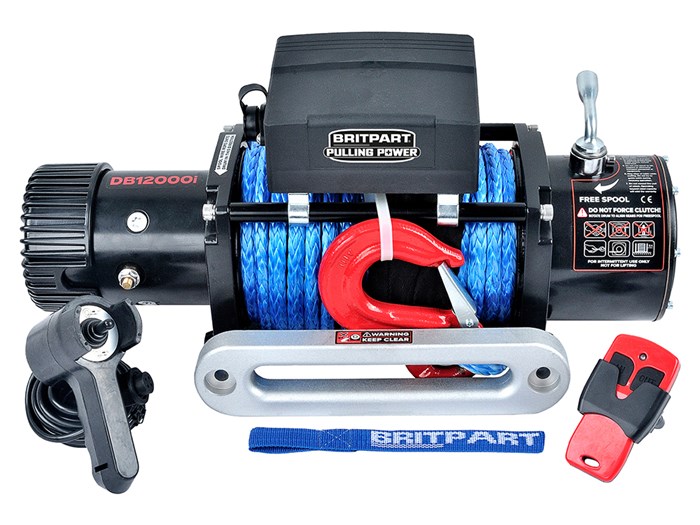

Britpart Pulling Power Winch (DB12000i24R)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
A full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...

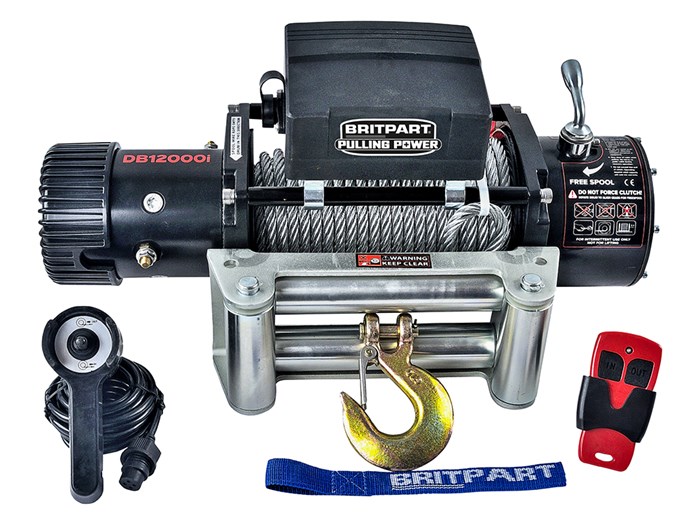

Britpart Pulling Power Winch (DB12000i)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
- 3.6Kw (4.8Hp) heavy-duty series wound DC motor
- Weather and dustproof contactor controls for longer life and improved amperage draw
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- Low electric current
- Hardened drum
- 24 month warranty
Specification
Rated line pull - single line - 12,000lbs / 5,443kg
Gear reduction ratio - 294:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.64 x 9" / 67 x 228mm
Cable supplied - 3/8" x 100' / 9.53mm x 30.5m - Galvanised aircraft cable with break force 14,400lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 94.8lbs / 43.0kg
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mmA full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...
Britpart Pulling Power Winch (DB12000i24)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
- 3.6Kw (4.8Hp) heavy-duty series wound DC motor
- Weather and dustproof contactor controls for longer life and improved amperage draw
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- Low electric current
- Hardened drum
- 24 month warranty
Specification
Rated line pull - single line - 12,000lbs / 5,443kg
Gear reduction ratio - 294:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.64 x 9" / 67 x 228mm
Cable supplied - 3/8" x 100' / 9.53mm x 30.5m - Galvanised aircraft cable with break force 14,400lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 94.8lbs / 43.0kg
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mmA full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...

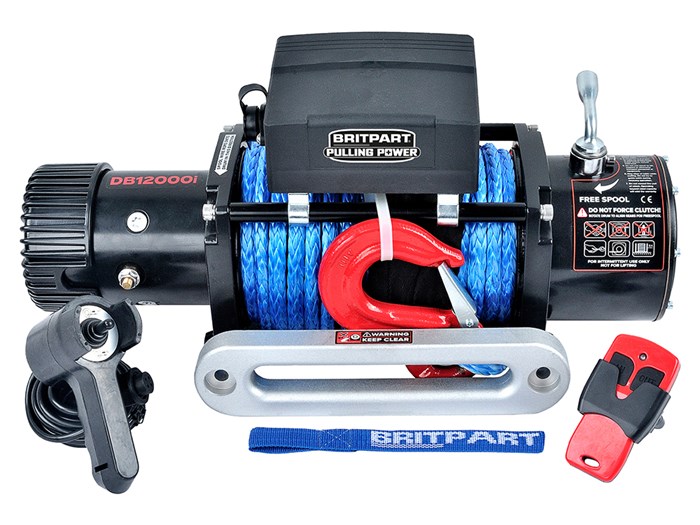

Britpart Pulling Power Winch (DB12000iR)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
- 3.6Kw (4.8Hp) heavy-duty series wound DC motor
- Weather and dustproof contactor controls for longer life and improved amperage draw
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- Low electric current
- Hardened drum
- Dyneema rope with break force - 25,800lbs
- 24 month warranty
Specification
Rated line pull - single line - 12,000lbs / 5,443kg
Gear reduction ratio - 294:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.5 x 9" / 67 x 228mm
Cable supplied - 0.43" x 91.9' 11mm x 28m - Dyneema rope with break force 25,800lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 72.8lbs / 33.0kg
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mmA full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...

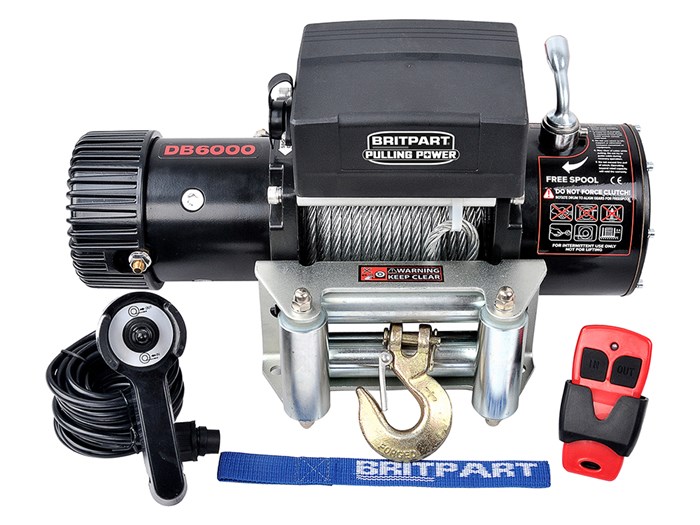

Britpart Pulling Power Winch (DB6000)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
- 2.7Kw (3.6Hp) permanent magnetic DC motor
- Weather and dustproof contactor controls for longer life and improved amperage draw
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- Low electric current
- 24 month warranty
Specification
Rated line pull - single line - 6,000lbs / 2,722kg
Gear reduction ratio - 210:1
Motor (series wound) - 3.6Hp / 2.7Kw
Drum size (D x L) - 2.5 x 5.51" / 63 x 140mm
Cable supplied - 0.31" x 85' / 7.94 x 26mm - Galvanised aircraft cable with break force 10,000lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 17.24 x 6.22 x 7.28" / 438 x 158 x 185mm
Net weight - 70.0lbs / 31.8kg
Mounting bolt pattern - 6.54 x 4.5" / 166 x 114.3mmA full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...

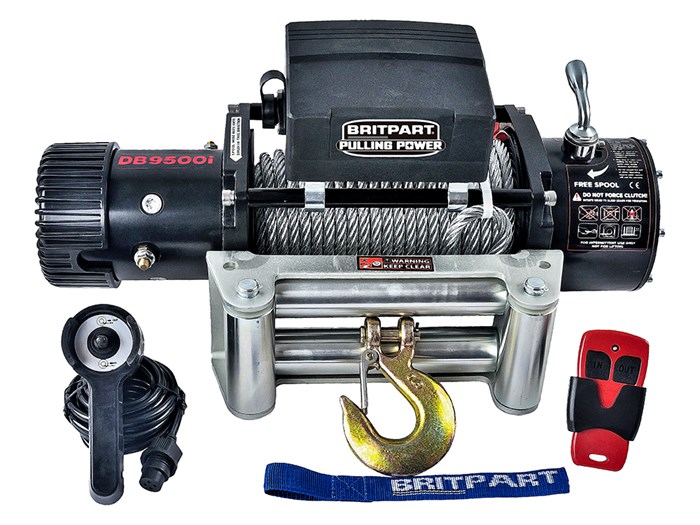

Britpart Pulling Power Winch (DB9500i)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
- 3.6Kw (4.8Hp) heavy-duty series wound DC motor
- Weather and dustproof contactor controls for longer life and improved amperage draw
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- Low electric current
- Hardened drum
- 24 month warranty
Specification
Rated line pull - single line - 9,500lbs / 4,309kg
Gear reduction ratio - 212:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.64 x 9" / 67 x 228mm
Cable supplied - 0.43" x 91.9' / 9.53mm x 30.5m - Galvanised aircraft cable with break force 14,4000lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 94.8lbs / 43.0kg
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mmA full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...
Britpart Pulling Power Winch (DB9500i24)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
- 3.6Kw (4.8Hp) heavy-duty series wound DC motor
- Weather and dustproof contactor controls for longer life and improved amperage draw
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- Low electric current
- Hardened drum
- 24 month warranty
Specification
Rated line pull - single line - 9,500lbs / 4,309kg
Gear reduction ratio - 212:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.64 x 9" / 67 x 228mm
Cable supplied - 0.43" x 91.9' / 9.53mm x 30.5m - Galvanised aircraft cable with break force 14,4000lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 94.8lbs / 43.0kg
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mmA full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...

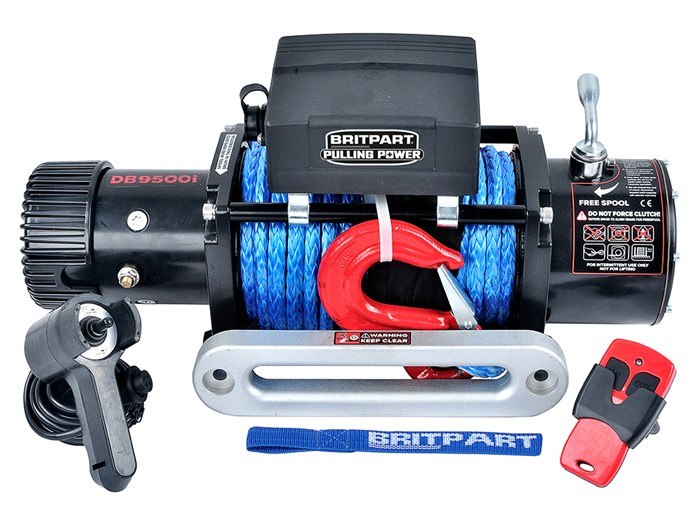

Britpart Pulling Power Winch (DB9500iR)
Powerful and reliable electric winches.
If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.
These powerful and reliable electric winches all feature - a planetary gear system for fast line speed, free spooling, power in & power out, low electric current. The range (excluding the DB2000) also feature an automatic load-holding brake, hardened drum and are supplied with a quality galvanised aircraft cable or dyneema rope.
Features
- 3.6Kw (4.8Hp) heavy-duty series wound DC motor
- Weather and dustproof contactor controls for longer life and improved amperage draw
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- Low electric current
- Hardened drum
- 24 month warranty
Specification
Rated line pull - single line - 9,500lbs / 4,309kg
Gear reduction ratio - 212:1
Motor (series wound) - 4.8Hp / 3.6Kw
Drum size (D x L) - 2.64 x 9" / 67 x 228mm
Cable supplied - 0.43" x 91.9' / 11mm x 28m - Dyneema rope with break force 25,800lbs
Winch Motor - Rated at IP67 for waterproofness & dustproofness
Winch Solenoid - Rated at IP54 for dustproofness
Overall dimension (L x W x H) - 21.57 x 6.57 x 11.77" / 548 x 167 x 299mm
Net weight - 94.8lbs / 43.0kg
Mounting bolt pattern - 10 x 4.5" / 254 x 114.3mmA full range of winching equipment is also available from Britpart - including; safety gear, bumpers, chocks, hooks, shackles & ropes.
Together with the winches you’ll be able to ‘Get to where you want to go!’
Important - When fitting a winch to a Defender don’t forget to order the extended winch wiring kit with cut-off switch - DB1014
Which winch is for me? Discover more...
Winching safety Discover more...
