Brake Tools
A range of tools for jobs involving your Land Rovers brakes.
Parts

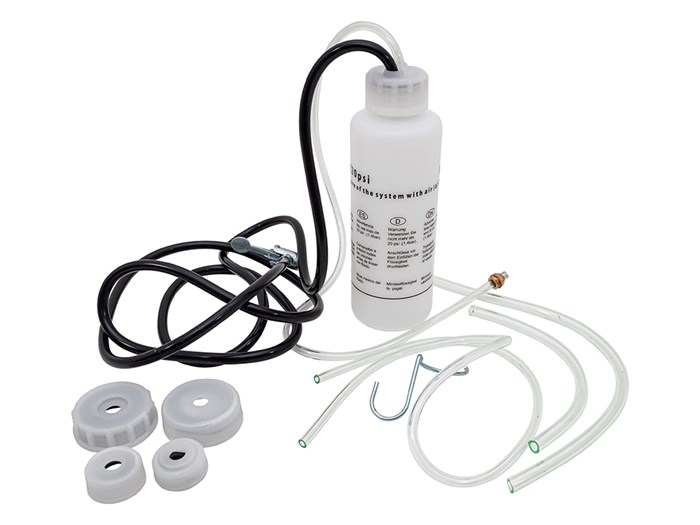

Eezibleed Kit (DA6174)
Easy fluid replacement system using air pressure from the spare wheel to bleed brake and clutch hydraulics. Safe to use, the one-way flow mechanism and airtight seal on the reservoir ensures fast fluid replacement with no contamination. There is no need for pedal pumping which avoids the risk of damaging the master cylinder seal. The versatile kit includes four screw caps (25, 27, 44-45 and 46mm) as well as three hoses, making it easy to connect Eezibleed to a wide variety of vehicles.
- Suitable for single handed operation. Uses the air pressure from a spare tyre to effortlessly bleed hydraulic systems.
- Can be used successfully on the following systems: tandem master cylinders without sensors, tandem reservoirs, slave servos and vacuum servos.
- Includes a range of cap and seal sizes: 25mm (Lockheed systems), 27mm (certain VAG systems), 44/45mm (metal Girling reservoirs and all ATE systems) and 46mm (certain Girling systems).
- Kit contains: pressure bottle (for new brake fluid), bottle cap assembly, bleed tube set, five cap and seal sets, brass reservoir cap fitting, two fibre washers, lock nut and hook.

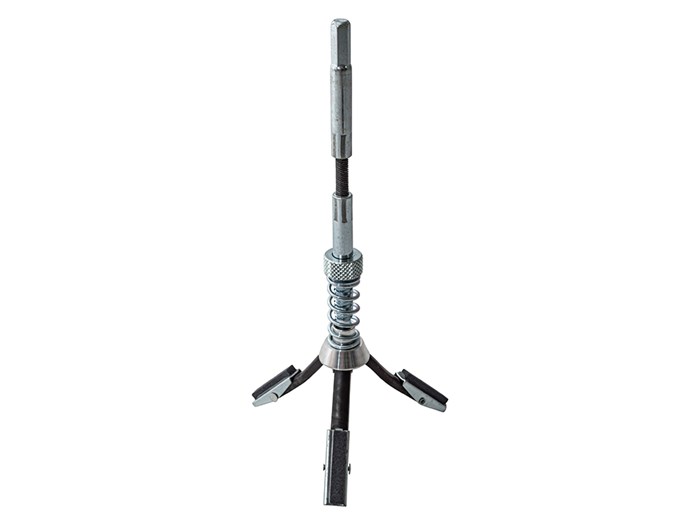

Brake Cylinder Hone (DA7361)
- Self aligning
- Spring tension adjustment - 22mm - 69mm
- 29mm stones
- Flexible shaft
- For use with a standard drill

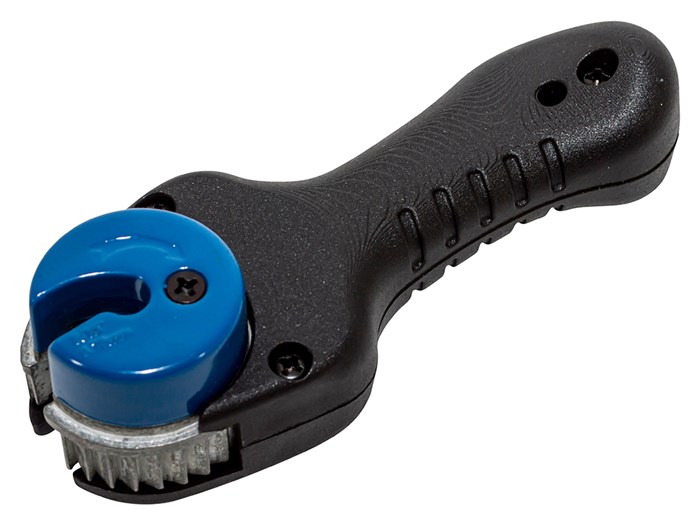

Automatic Self Adjusting Brake Pipe Cutter With Ratchet Handle (DA7484)
- Ratcheting, self adjusting mini brake pipe cutter ideal for restricted access.
- 4.75mm (3/16") with ratchet handle.
- Automatic self adjusting for faster cutting. Fast and accurate operation, ideal for under vehicle use.
- Extra leverage due to handle length over standard cutter. To further increase leverage use the 1/4" drive square in the end of the handle.
Modern brake pipe cutters can be quite small and compact but there are many instances when working on the car where there is still not enough clearance to turn the cutter around the whole circumference of the brake pipe. This new mini brake pipe cutter from Laser Tools solves this problem with its ratchet mechanism. Simply slide the cutter over the pipe the handle gives excellent leverage and even if the space is really restricted, a few turns of the handle will quickly and cleanly cut straight through. It is self-adjusting, so no need to keep tightening the blade down onto the pipe as you are cutting. Quick and easy. Use on 3/16" or 4.75mm brake pipe, steel, cupro nickel or copper.

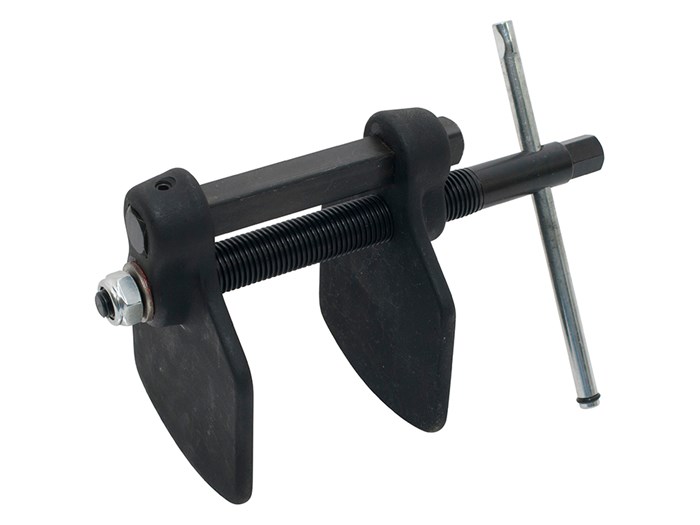

Heavy-Duty Piston Spreader (DA7460)

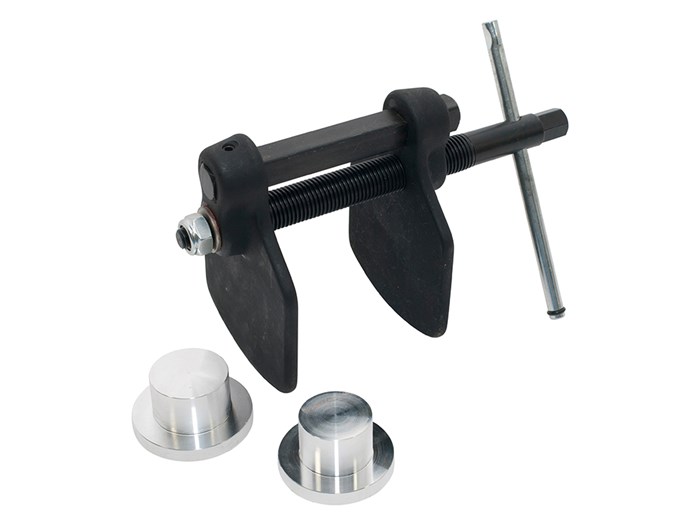

Brake Caliper Rebuild Tool Kit (DA1153)
Anyone who has ever tried to rebuild a set of Land Rover brake calipers will know that the most difficult part is fitting the dust seal after the pistons have been fitted.

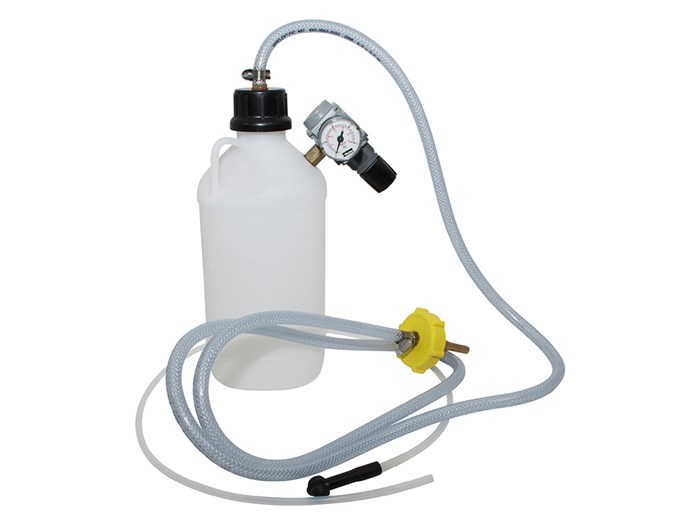

This extremely awkward task can now be made much easier with the seal fitting tools in this kit. The kit is supplied with a tool to fit 41mm and 44mm pistons and comes complete with a Laser heavy-duty piston spreader to allow the seals to be pushed into place evenly.Dynamic Response Bleed Bottle (204-591-01)

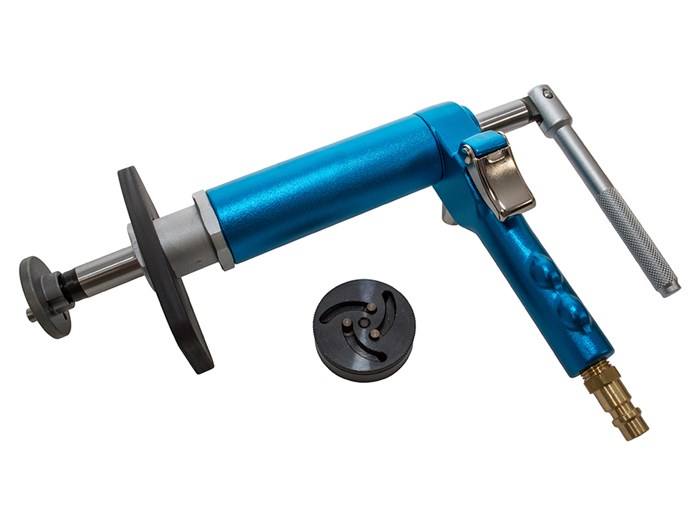

EPB Brake Adaptor Tool (DA6136)
Adjustable 3 pin EPB brake adaptor with standard 2 pin drive which is adjustable to fit many modern vehicles.
Kit also contains a pneumatic brake caliper rewind tool - 3/8” D. This tool is for left and right hand threaded pistons. Suitable for most 3/8” D wind-back adaptors and pin type adaptors.
