Portable Power
Parts

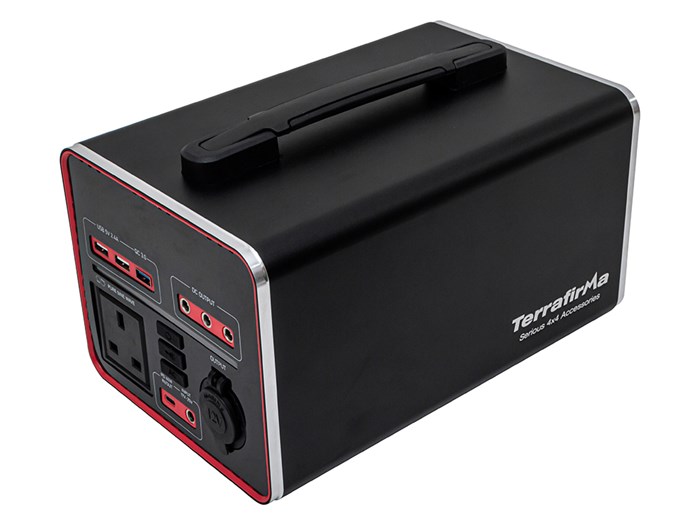

Terrafirma Portable Power Station (TF1740)
The Terrafirma Power Station and Solar Power Panel provide portable energy and solar power wherever you go. With 500w AC output, a built in ‘headlight’, 60w USB output and 240v AC and cigar lighter you have all your portable electrical requirements covered from one power source.
The Terrafirma Power Station is a rechargeable battery-power source equipped with AC outlet, 12v cigar socket, DC and USB ports to keep all your gear charged including cameras, phones, torches, laptops, as well as provide power to operate mini coolers, lighting, CPAP and other appliances.
The Terrafirma Power Station has a 481 watt-hour battery pack and pure sine wave power inverter. It features, control buttons, an LED information screen, 3 USB ports, 3 12v DC ports, cigar lighter socket and power input ports and all charging cables are included.
Designed for portability the power station is built into a rugged metal case with a sturdy carry handle. The power station can be charged from the mains or via 12v of from the optional Terrafirma Solar Power Panel.
Capacity: 32,500mAh/14.8V (481Wh)
Input: Type-C 5V-20V 3A (Max 60W)
USB Output:
2 x USB-A 5V/2.4A (Max 12W)
1 x USB-A 5V/3A 9V/2A 12V/1.5A (Max 18W)
1 x Type-C 5V-20V 3A (Max 60W)
DC Output: 3 x DC 12V/5A (Max 60W)
Cigarette Lighter: 12V/10A (Max 120W)
AC Output: 220V 50Hz (Pure sine wave)
Rated Power: 500W Max (Peak 700w)
Light: 5W LED
Operating Temperature: -10º to 40º
Recharge Temperature: 0º to 40º

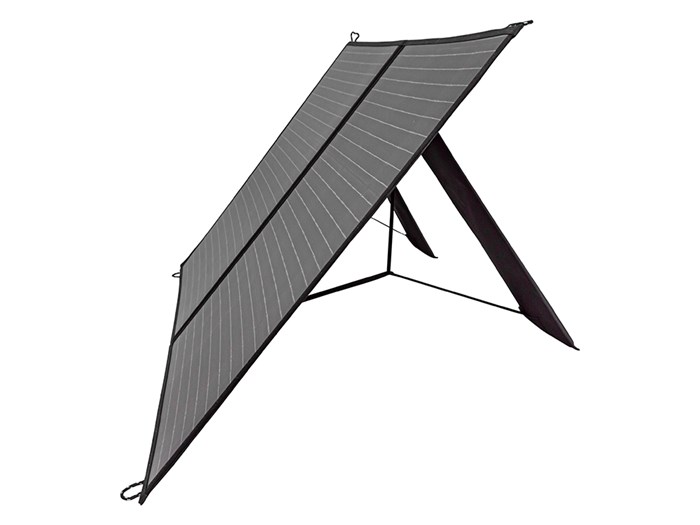

Conformity: CE, RoHS & FCCTerrafirma Solar Power Panel (TF1741)
The Terrafirma Power Station and Solar Power Panel provide portable energy and solar power wherever you go. With 500w AC output, a built in ‘headlight’, 60w USB output and 240v AC and cigar lighter you have all your portable electrical requirements covered from one power source.
The Terrafirma Solar Power Panel is a foldable 2 section, self-supporting, 100w solar panel that folds into its own carry case for protection when not in use and comes with power leads suitable to connect to the Terrafirma Power Station.Environment-friendly, practical and convenient for outdoor emergency power supply. Foldable design with portable size, easy to carry with just single hand. The high quality solar mono-crystallinesilicon provides high charging efficiency and long service life.
The product is compatible with Terrafirma Power Station (purchased separately). You can convert and store solar power In power station In the day and charge devices at night. The power station Is designed with multiple ports for AC, DC, USB and car charger to meet your demand of outdoor power supply.
Dimensions:
Folded: 500 x 585 x 45mm
Unfolded: 1,200 x 585 x 32mm
Material: Mono-crystalline silicon & waterproof fabric
Weight: 2.2kg
Conversion Rate: 23%
DC Output: 100W 18V/5.5A
USB-C Output: Type-C 5V/3A 9V/2.22A 12V/1.67A PD.20W
USB Outputs:
1 x USB QC3.0 5V/3A 9V/2A 12V/1.5A
2 x USB 5V/2.4A
USB 1+Type-C 5V/3A USB2 5V/2.4A

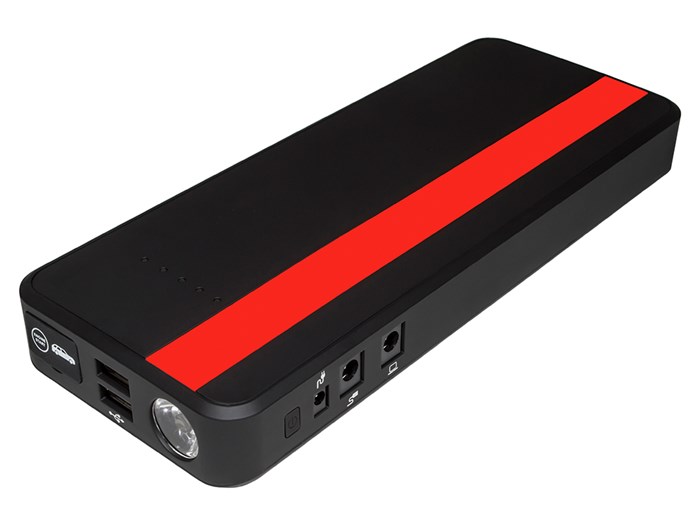

Conformity: CE, RoHS & FCCXS Powerpack (DA1239EU)
Multi-function jump starter & charger for electronic products...
- Lap tops
- Mobile phones
- Portable games
- Tablets
- Portable DVD
- Music players
- Plus much more...
- Small and lightweight high capacity nano lithium polymer portable power pack with the latest battery technology.
- Supports fast charging with low self-discharge cycle.
- Charging cycles can reach more than 1,000 times.
- Supports 12V jump starts as well as back up charging for many brands of mobile phones, laptops, tablets, portable refrigerators etc.
- Support 3 different types of charging modes.
- Built in redundant electronic control safety protection for jump starter over-charging and over-discharging.
Technical Specifications
Size - 230 x 87 x 27mm
Weight - 615g
Output - 5V = 1A (smart phone/tablet fast charge)
Output - 12V = 10A
Output - 19V = 3.5A (lap tops/notebooks)
Input - 14V = 1A
Battery volume - 18,000mAh
Starting current - 350A
Peak current - 700A
