Lazer Lights
Parts

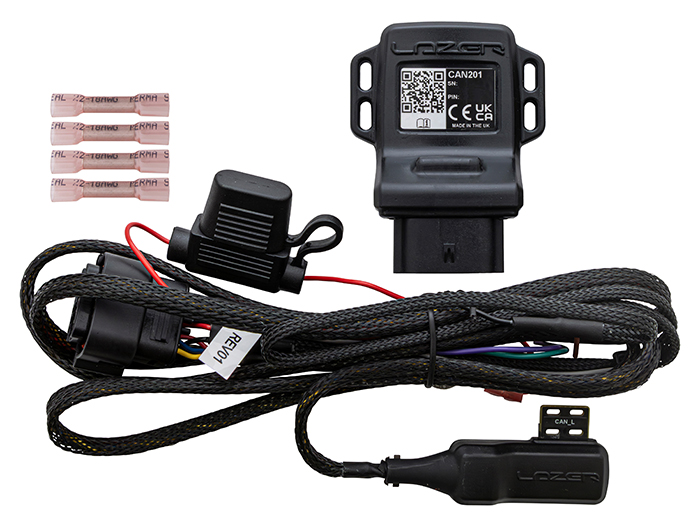

Lazer Canny Interface (DA5386)
Over-the-air Bluetooth synchronisation and updates further the system's ease of use and speed of installation. The CANNY dongle comprises an automotive-standard Molex connector, ensuring a completely watertight solution to IP68 (IP64 on the Contactless Reader). Integrated design features and included cable ties facilitate mounting of the unit. Locating the device within the engine bay is preferable for ease of installation, but is dependent on the CAN Hi / CAN Lo wires pick-up location on each vehicle. Connection to the vehicle CAN wires is made via the supplied wiring loom, with the blue (CAN Hi) and yellow (CAN Lo) wires supplied with automotive-grade heat-seal crimps for completing watertight connections. Alternatively, for customers not wanting to cut the CAN Hi/CAN Lo wires, a version is available with a Contactless Reader allowing vehicle data to be read without any metal-to-metal connection between the interface and vehicle CAN wiring. The supplied wiring loom also includes a fused battery positive connection and ground wire. Additionally, 4 output wires, each programmable to respond to different inputs; high beam, position light, ignition, reverse etc., and compatible with any of our vehicle wiring kits (where the required output is >1Amp). Activation, synchronisation, and ongoing updates of your CANNY dongle are achieved through the app. Having gained full access via the unique serial number and PIN on your device, users can then access installation guides for their vehicle, before pairing with the device, and assigning and testing the different lighting functions. Updates, for example, following a vehicle manufacturer making changes to the CAN 'recipes', can also be completed via Bluetooth.
Features
- IP68 Waterproof CANNY dongle with Molex connector terminal
- Contactless reader option available (IP64 compliant)
- Suitable for both engine-bay or in-car mounting
- Connects to vehicle CAN wires (locations of CAN wires and connection methods supplied via vehicle specific instructions, downloadable through APP, after purchase)
- Activates up to 4 x different output (e.g. High Beam, Position Light, Reverse, Ignition)
- Bluetooth (over the air) updates via CANNY app - available on Android and iOS
- Technical support from UK sales team
- Compatible with vehicle-side wiring harness kits (sold separately)
- Fast and user-friendly installation procedure

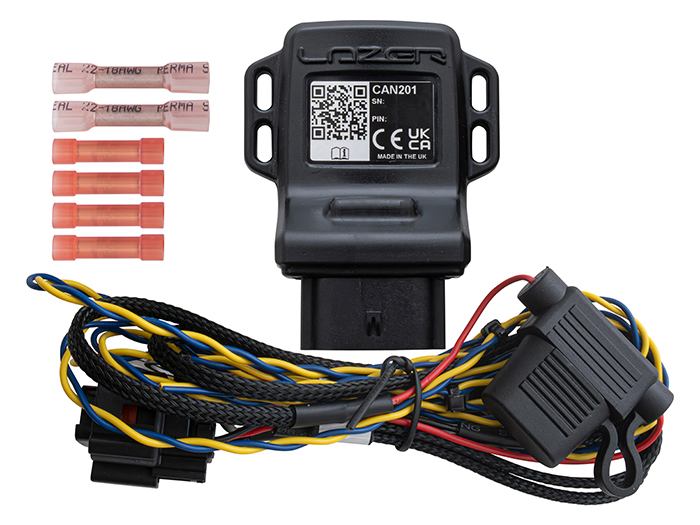

Lazer CANNY CAN Interface (DA5291)
Comprising a CANNY dongle, plus wiring loom, and supported by a dedicated app (CANNY.LZR), the system benefits from being able to mount within your vehicle’s engine bay for faster and easier installation, or inside the vehicle. Over-the-air Bluetooth synchronisation and updates further the system’s ease of use and speed of installation.
The CANNY dongle comprises an automotive-standard Molex connector, ensuring a completely watertight solution to IP68 (IP64 on the Contactless Reader). Integrated design features and included cable ties facilitate mounting of the unit. Locating the device within the engine bay is preferable for ease of installation, but is dependent on the CAN Hi / CAN Lo wires’ pick-up location on each vehicle. Connection to the vehicle CAN wires is made via the supplied wiring loom, with the blue (CAN Hi) and yellow (CAN Lo) wires supplied with automotive-grade heat-seal crimps for completing watertight connections. Alternatively, for customers not wanting to cut the CAN Hi/CAN Lo wires, a version is available with a Contactless Reader allowing vehicle data to be read without any metal-to-metal connection between the interface and vehicle CAN wiring. The supplied wiring loom also includes a fused battery positive connection and ground wire. Additionally, 4 output wires, each programmable to respond to different inputs; high beam, position light, ignition, reverse etc., and compatible with any of our vehicle wiring kits (where the required output is >1Amp). Activation, synchronisation, and ongoing updates of your CANNY dongle are achieved through the app. Having gained full access via the unique serial number and PIN on your device, users can then access installation guides for their vehicle, before pairing with the device, and assigning and testing the different lighting functions. Updates, for example, following a vehicle manufacturer making changes to the CAN ‘recipes’, can also be completed via Bluetooth.
Features
- IP68 Waterproof CANNY dongle with Molex connector terminal
- Contactless Reader option available (IP64 compliant)
- Suitable for both engine-bay or in-car mounting
- Connects to vehicle CAN wires (locations of CAN wires and connection methods supplied via vehicle specific instructions, downloadable through APP, after purchase)
- Activates up to 4 x different output (e.g. High Beam, Position Light, Reverse, Ignition)
- Bluetooth (over the air) updates via CANNY app - available on Android and iOS
- Technical Support from UK Sales Team
- Compatible with vehicle-side wiring harness kits (sold separately)
- Fast and user-friendly installation procedure

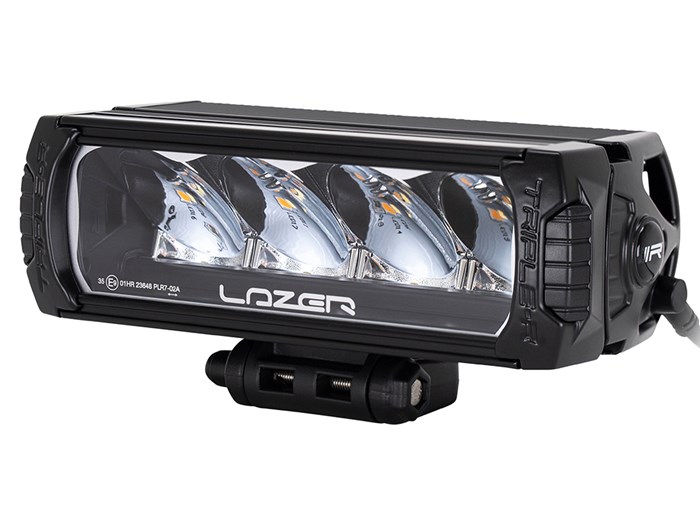

Lazer Triple-R 750 (DA2842)
Lazer Part Number - 00R4-G2-B
Boasting the very latest high efficiency LED technology, the Triple-R 750 is a high-performance driving light that delivers a spot beam pattern well suited to both on-road and off-road applications. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. With the possibility to connect a white or amber position light function, the styling and safety benefits of the 2nd generation Triple-R 750 are enhanced even further.
Boasting 4,620 lumen, delivering 1 lux to 433m, the auxiliary LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle (e.g. heavy trucks). Highly-reflective, vacuum-metallised optics, designed and engineered in-house, in the UK, using advanced CAD design software, mean more light is directed to where you need it, across a perfectly homogenous beam pattern without flat spots. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time.
The Triple-R 750 comes with the option to connect an integrated position/side light function when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the light connector at the point of installation, or leave both disconnected to have your Triple-R 750 act as a high beam driving light only. The high beam function is approved to ECE Regulation 112, while the position light function (white only) is approved to ECE regulation 7, allowing for your Triple-R 750 to operate in parallel with your standard headlights (where UNECE regulations are recognised).

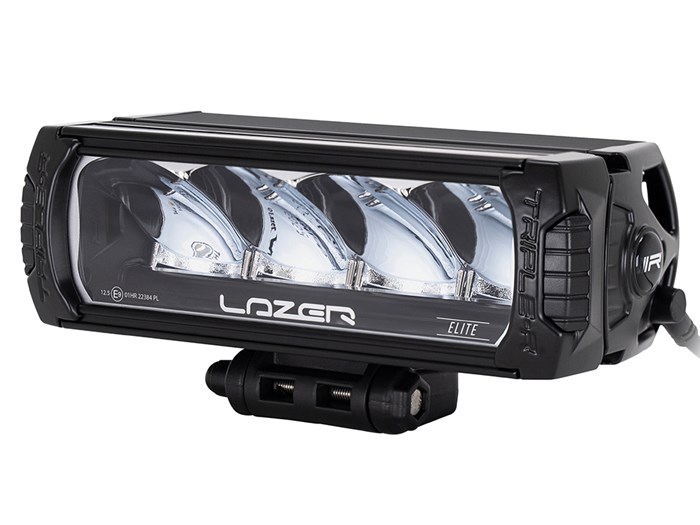

Triple-R 750 Elite (DA3728)
Lazer Part Number - 00R4-G2-EL-B
Borne out of extensive testing at the highest levels of professional track and rally motorsport, the Triple-R Elite represents the pinnacle of LED driving light technology using the very latest high efficiency LED technologies. Delivering greater illumination and more left/right spread of light, guaranteed to impress across all road or motorsport applications. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles.
Boasting 5,068 lumen, delivering 1 lux to 517m (E-Boost mode), the Triple-R 750 Elite delivers incredible distance illumination considering the light's comparatively diminutive proportions. Still it is through the improved spread of light that this market leading driving light really impresses.
A combination of LEDs on the outer reflectors deliver superior visibility at the sides of the road, which is really evident to see and appreciate. The result is a safer more relaxing night driving experience. It’s nothing less than you would expect from the very best in-house UK design, engineering, and production to ensure all component parts combine to produce a perfectly homogenous beam pattern without flat spots, and with a colour of light, at 5000k. Ensuring perfect definition of any obstacles ahead and a comfortable drive even over prolonged periods of time.

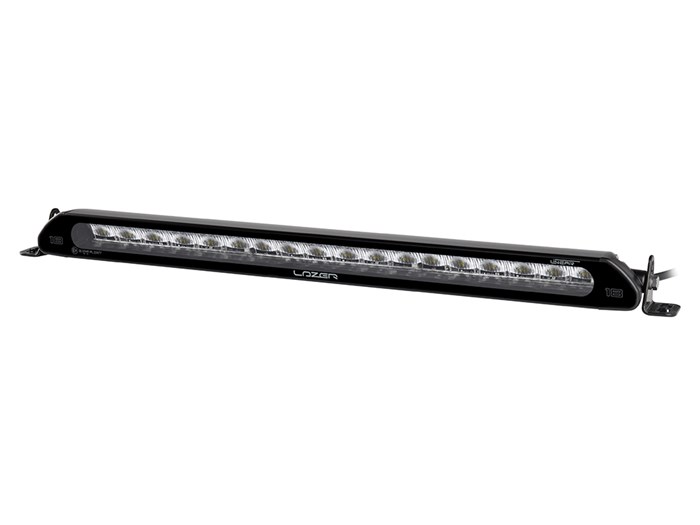

Linear-18 Light Bar (DA3722)
Lazer Part Number - 0L18-LNR
The Linear-18 is an ECE approved, road-legal versatile and economical auxiliary lighting solution which provides a significant upgrade when compared with any OE headlights. The Linear-18 is ideal for passenger vehicles, where regulations allow for a single light to be connected direct to the standard high beams, and in particular where the light is being mounted low down at the front of the vehicle.
Utilising highly efficient 3W LEDs, the Linear-18 delivers 6,750 lumens, and 1 Lux to 428m, impressive performance considering the light only consumes minimal power at 63W and with a current draw of 4.4Amps.
The light distribution can be best described as ‘wide’ which taking nothing away from the enviable distance illumination, does provide for a comfortable left/right spread of light, with a comparatively lower up/down spread that makes the Linear-18 especially well suited to lower install positions, such as vehicle grille or number plate mounting.
At 532mm in length, and with an aluminium body measuring just 40mm in height, and weighing a little over 1kg, this is an auxiliary LED light that can be subtly integrated onto any everyday road vehicle without compromising the vehicle aesthetics.
A borderless polycarbonate front lens allows for improved aero performance and prevents build-up of ice/snow/dirt that might otherwise interfere with the light distribution. Automotive grade corrosion resistance, alongside stainless steel brackets and fasteners, ensures the high-end styling of the lights themselves stays in prime condition for many years to come.

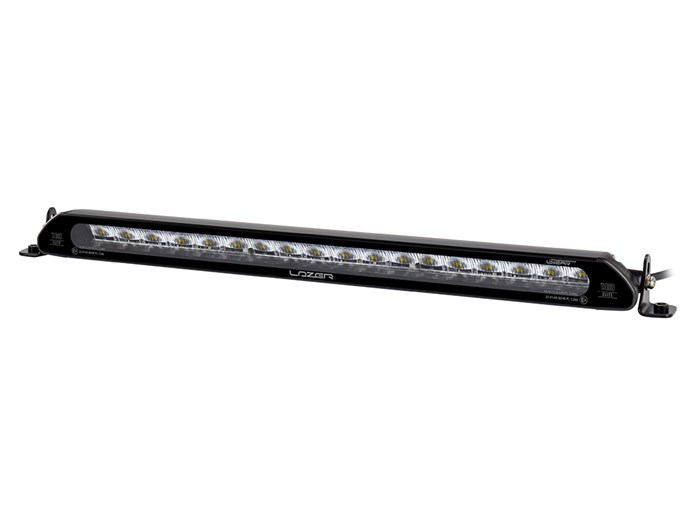

Linear-18 Elite Light Bar (DA3723)
Lazer Part Number - 0L18-DBL-EL-LNR
Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use.
Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
Fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products produce twice the light output compared to the equivalent Standard version.
Linear-18 Elite lights support dual-output functionality, where in certain countries the requirement is for a lower UNECE E-mark reference. The lower output mode is enabled through application of the ‘Linear E-mark Cap’ - sold separately.
Despite the diminutive proportions, 532mm in length, and with an aluminium body measuring just 40mm in height, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity.
With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.
Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

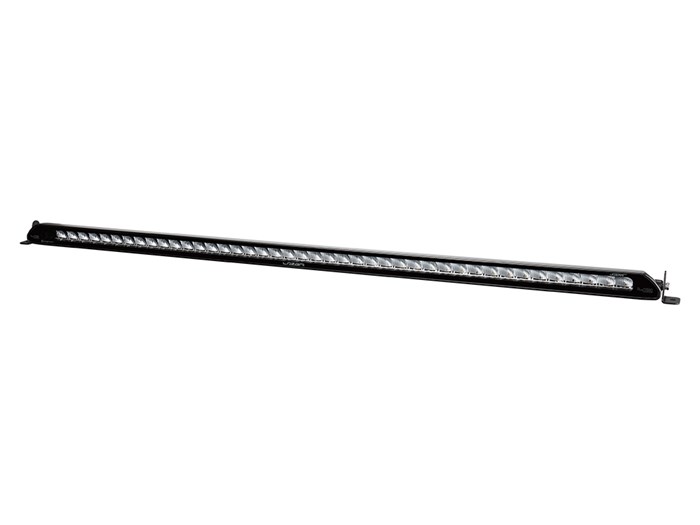

Linear-42 Light Bar (DA3726)
Lazer Part Number - 0L42-LNR
With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-42 is an ECE-approved auxiliary LED spotlight that integrates effortlessly with modern vehicles. Balancing understated presence with class-leading lighting performance borne out of development and testing at the highest levels of professional motorsport, optimised for everyday road use.
At 1,132mm in length and just 40mm in height, the Linear-42 comprises 42 high density LEDs carefully selected for their premium output rating, colour temperature at 5000 kelvin, and thermal performance (providing improved longevity). Emitting a total of 15,750 lumen, the light delivers 1 lux to 492m via ultra-reflective, vacuum-metallised optics finely tuned to deliver distance illumination at the limit of European road-legal regulations, and an incredible left/right spread of light which makes night-time driving a significantly more pleasant, and safe, experience.
Designed around roof-mount installations, the rearwards positioning and upward facing LEDs project the light in a perfectly homogenous beam pattern optimised for when mounting at roof height. Glare, which can occur on the vehicle’s bonnet when mounting on the roof, is virtually non-existent, while the aptness to roof mounting is furthered by the aerodynamic design of the light, where the sleek housing and absence of sharp edges significantly reduces wind noise during high speed driving.

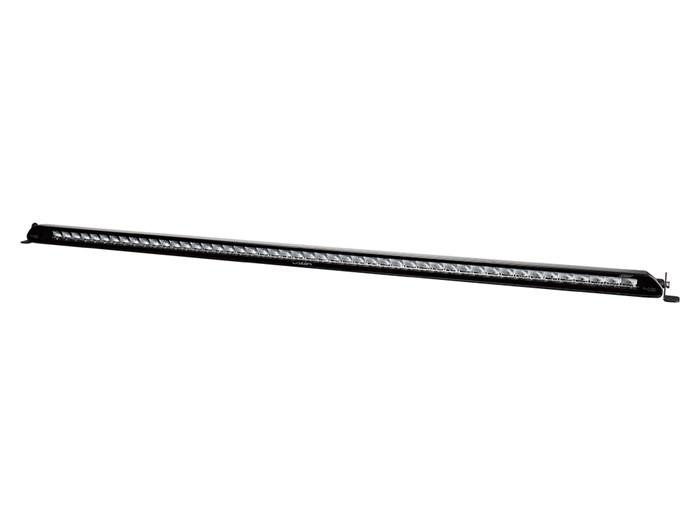

Linear-48 Light Bar (DA3724)
Lazer Part Number - 0L48-LNR
With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-48 is an off-road high performance LED light bar that integrates effortlessly with modern vehicles, balancing understated presence with class-leading lighting performance borne out of development and testing at the highest levels of professional motorsport, optimised for everyday road use.
At 1,282mm in length and 40mm high, the Linear-48 comprises 48 high density LEDs carefully selected for their premium output rating, colour temperature at 5000 kelvin, and thermal performance (providing for improved longevity). Emitting a total of 18,000 lumen, the light delivers 1 lux to 550m via ultra-reflective, vacuum-metallised optics that deliver the perfect balance of distance illumination with an incredible left/right spread of light which makes night-time driving a significantly more pleasant, and safe, experience.
Designed around roof-mount installations, the rearwards positioning and upward facing LEDs project the light in a perfectly homogenous beam pattern optimised for when mounting at roof height. Glare, which can occur on the vehicle’s bonnet when mounting on the roof, is virtually non-existent, while the aptness to roof mounting is furthered by the aerodynamic design of the light, where the sleek housing and absence of sharp edges significantly reduces wind noise during high speed driving.
Manufactured in the UK to exacting standards, like all Lazer products, the Linear-48 has been built to last, backed up by a comprehensive 5-year warranty. The ‘unbreakable’ polycarbonate lens comes with a lifetime guarantee and is finished with a hardcoat lacquer to protect against any scratches. Automotive grade corrosion resistance, alongside anti-theft stainless steel brackets and fasteners, ensures the high-end styling of the lights themselves stays in prime condition for many years to come.

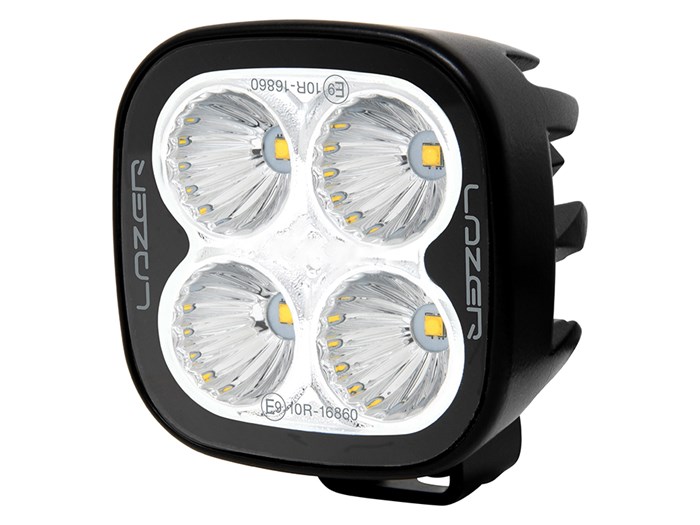

Utility-25 (DA3408)
Lazer Part Number - 00U25-U-B
The Utility-25 is a hugely versatile, medium-duty work light, which through the latest advances in LED lighting technology, gives superior levels of light output considering its compact size. Sharing product DNA with the larger Utility-45 and Utility-80 heavy-duty work lights, the light is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.
Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 utilises highly efficient 6W LEDs from a world-leader in LED design and production. Like all Lazer products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallised optics harness the 3,016 raw lumens delivering 78 degree spread (to 10% of peak intensity).
The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the light to be run at a higher drive current without compromising the longevity of the LEDs themselves.

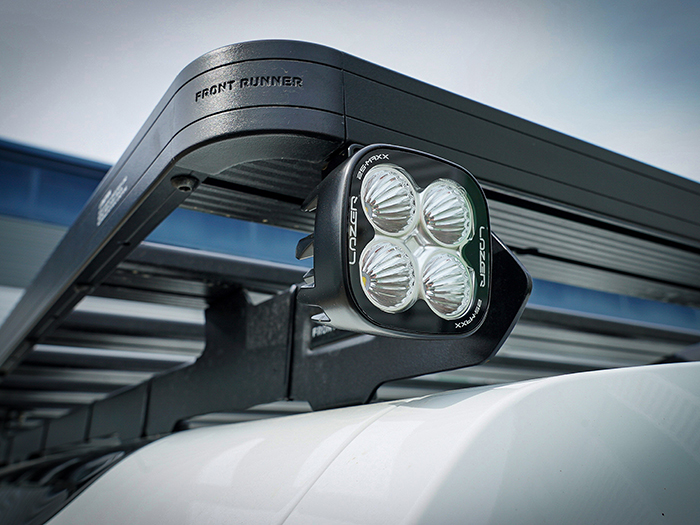

Utility-25 Maxx (DA3732)
Lazer Part Number - 00U25-MAXX-B
The Utility-25 MAXX is a hugely versatile, medium-duty work light. The light incorporates higher output 11W LEDs to deliver seriously impressive lighting performance, especially considering the lights’ comparatively small proportions. Something made possible through continued improvements in LED electronics design, coupled with the lights'’ robust physical design.
Sharing product DNA with the larger Utility-45 and Utility-80 heavy duty work lights, the light is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.
Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 MAXX utilises highly efficient 11W LEDs from a world-leader in LED design and production. Like all Lazer products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range.
The vacuum-metallised optics harness the 4,560 raw lumens delivering 78 degree spread (to 10% of peak intensity).
The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the light to be run at a higher drive current without compromising the longevity of the LEDs themselves.

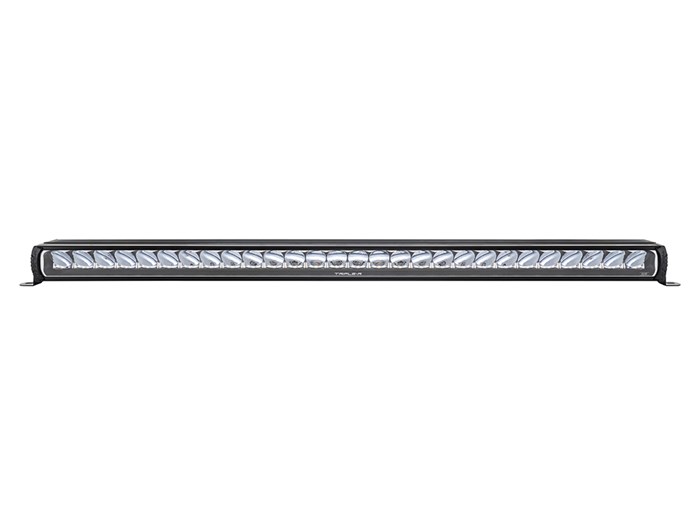

Lazer Triple-R 28 Elite (DA2843)
Lazer Part Number - 00R28-G2-EL-B
The Triple-R 28 has been given Elite level performance through the adoption of a combination of the latest high efficiency LED technologies and modified optics, used to deliver more distance illumination and more left/right spread of light. Borne out of extensive testing at the highest levels of professional track and rally motorsport, the Triple-R Elite represents the pinnacle of LED driving light technology. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles.
Boasting 28,560 lumen, delivering 1 lux to 1253m, the next generation of Triple-R 28 Elite delivers incredible distance illumination. Still it is through the improved left/right spread of light that this market leading driving light really impresses.
A combination of LEDs on the outer reflectors delivers the superior visibility at the sides of the road, which is really evident to see and appreciate. At the same time the up/down spread of light has been flattened, which considering the typical mounting position of the light, is preferable to ensure a clean distribution of light in front of your vehicle, and also reducing glare which can otherwise come from some roof mount installs.
Ultimately, the benefits are a safer more relaxing night driving experience. It’s nothing less than you would expect from the very best in-house UK design, engineering, and production to ensure all component parts combine to produce a perfectly homogenous beam pattern without flat spots, and with a colour of light, at 5000k, which ensures perfect definition of any obstacles ahead, whilst ensuring a comfortable drive even over prolonged periods of time.
Additional benefits are had from a modified design to the aluminium housing, which has improved wind noise performance which in the past might otherwise have occurred with some roof mount installations.

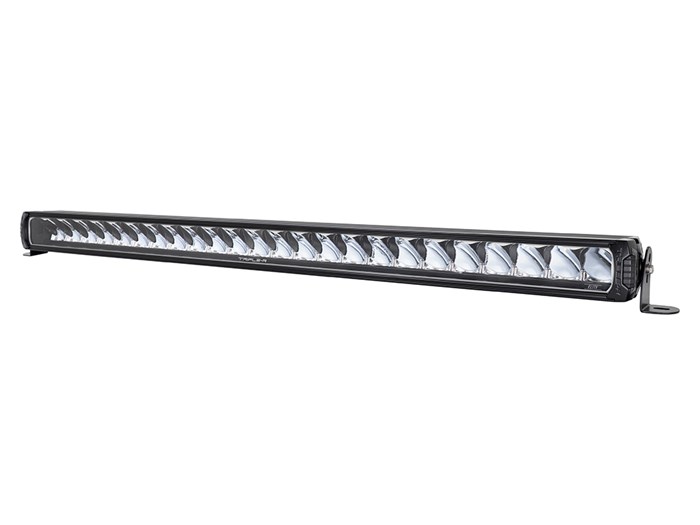

Triple-R 24 Elite (DA3475)
Lazer Part Number - 00R24-G2-EL-B
The Triple-R 24 has been given Elite level performance through the adoption of a combination of the latest high efficiency LED technologies and modified optics, used to deliver more distance illumination and more left/right spread of light. Borne out of extensive testing at the highest levels of professional track and rally motorsport, the Triple-R Elite represents the pinnacle of LED driving light technology. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles.
Boasting 27,060 lumen, delivering 1 lux to 1176m, the next generation of Triple-R 24 Elite delivers incredible distance illumination. Still it is through the improved left/right spread of light that this market leading driving light really impresses. A combination of LEDs on the outer reflectors delivers the superior visibility at the sides of the road, which is really evident to see and appreciate. At the same time the up/down spread of light has been flattened, which considering the typical mounting position of the light, is preferable to ensure a clean distribution of light in front of your vehicle, and also reducing glare which can otherwise come from some roof mount installs.
Ultimately, the benefits are a safer more relaxing night driving experience. It’s nothing less than you would expect from the very best in-house UK design, engineering, and production to ensure all component parts combine to produce a perfectly homogenous beam pattern without flat spots, and with a colour of light, at 5000k, which ensures perfect definition of any obstacles ahead, whilst ensuring a comfortable drive even over prolonged periods of time. Additional benefits are had from a modified design to the aluminium housing, which has improved wind noise performance which in the past might otherwise have occurred with some roof mount installations.

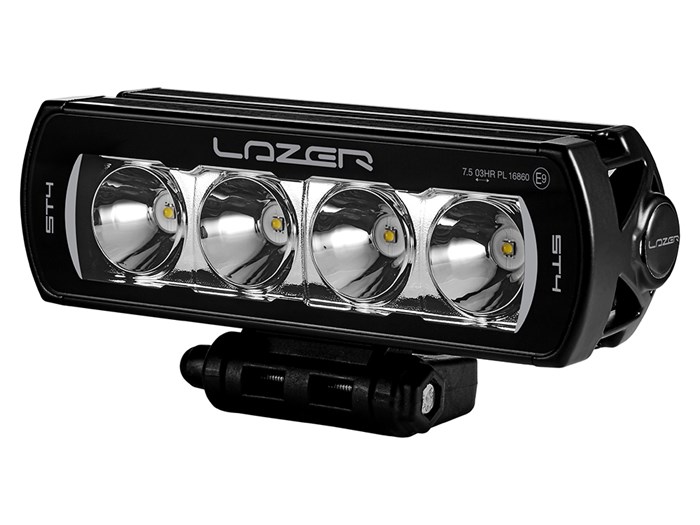

Lazer ST4 Evolution (DA2841)
Lazer Part Number - 004-EVO-B
The ST4 Evolution is a hugely versatile LED spotlight the size of which has proved particularly popular within the road tuning, pick-up truck and 4x4 markets. At 204mm length, the ST4 delivers incredible lighting performance which belies its diminutive size. ECE approval ensures the light is suitable for full integration into your vehicles existing electrical system.
High-density 11W LEDs are carefully selected for their high ‘bin’ rating, and deliver 4,136 lumens. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallised reflectors, harness the light output into a ‘Drive’ beam pattern optimised for lower speed applications where the priority is for good all-round visibility, albeit still with enviable distance illumination - 1 lux is achieved at 278m. The colour temperature of the LEDs at 5000 kelvin has also been specifically selected to maximise sharpness and definition, while proven to reduce eye-strain associated with some higher (blue-white) colour temperatures.

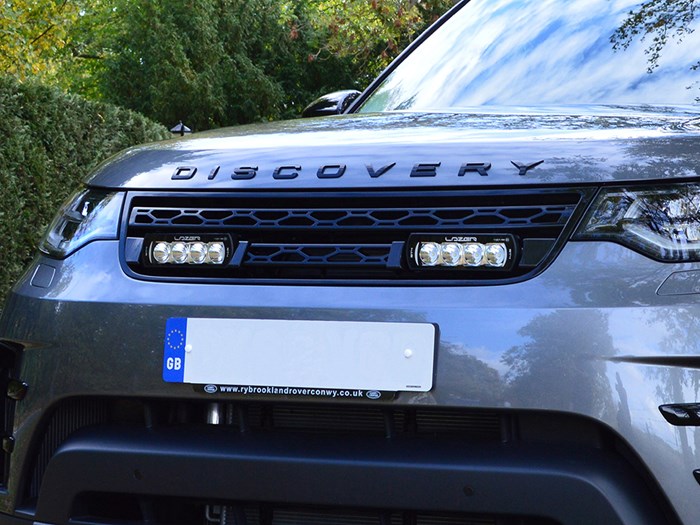

Grille Integration Kit For ST4 Evolution LED Spotlights (DA3717)
Lazer Part Number - GK-DISCO5-01K
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Discovery 5 kit includes a pair of ST4 Evolution, high performance LED driving lights, plus wiring kit, alongside 4 x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
Please note, the Discovery 5 Grille Integration Kit is carefully engineered and optimised for use with ST4 Evolution High Performance LED Spotlights.

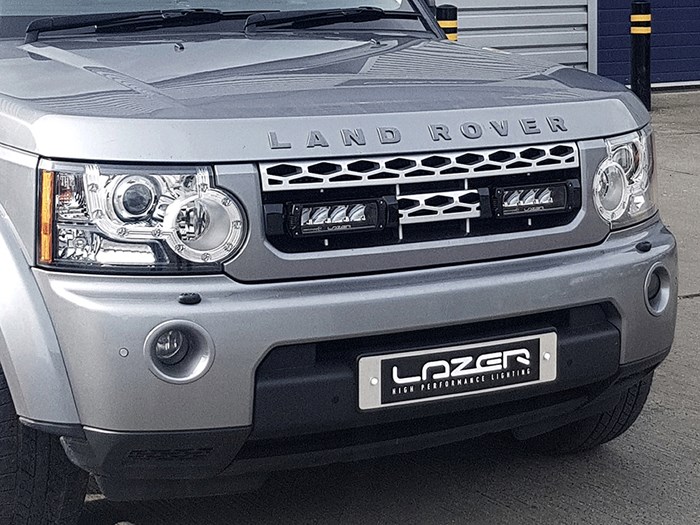

Triple-R 750 Elite LED Spotlights Grille Integration Kit (DA3715)
Lazer Part Number - GK-DISCO4-EL-G2-02K
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles.
Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Discovery 4 kit includes a pair of Triple-R 750 Elite High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws.

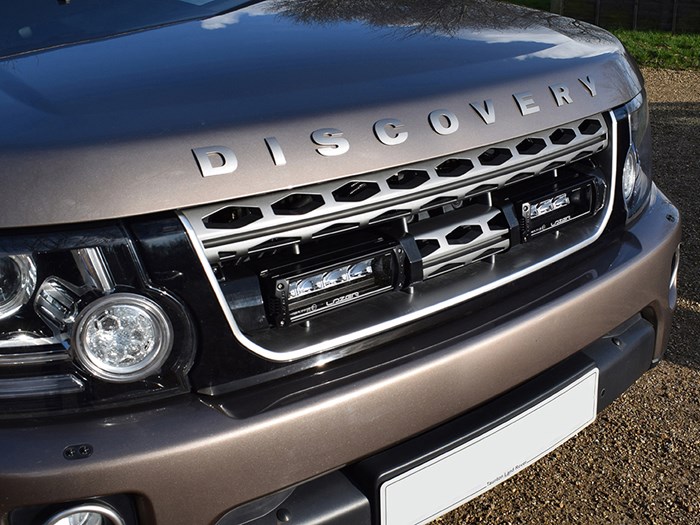

Triple-R 750 LED Spotlights Grille Integration Kit (DA3716)
Lazer Part Number - GK-DISCO4-G2-01K
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Discovery 4 kit includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.
Lazer Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED Spotlights.
Linear-18 LED Driving Light & Mounting Kit (DA3712)
Lazer Part Number - GK-DEF18-01K
Utilising satin black mounting brackets concealed behind the centre opening, the Lazer Lamps vehicle integration kit for the Defender - 2020 onwards, allows for mounting a Linear-18 LED Driving Light, for an auxiliary LED driving light installation that impresses day and night.
The slimline design and high-end styling of the Linear product ensures an aesthetic install onto the front of the vehicle that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday on-road and off-road use.
ECE compliance allows for connecting into the vehicle’s electrical system so that the light activates with the vehicle’s standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Defender lighting upgrade kit delivers incredible levels of illumination for when the sun goes down.
The mounting of the light utilises mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners.
Linear-18 Elite LED Driving Light & Mounting Kit (DA3713)
Lazer Part Number - GK-DEF18-ELITE-01K
Utilising satin black mounting brackets concealed behind the centre opening, the Lazer Lamps vehicle integration kit for the Defender - 2020 onwards, allows for mounting a Linear-18 Elite LED Driving Light, for an auxiliary LED driving light installation that impresses day and night.
The slimline design and high-end styling of the Linear product ensures an aesthetic install onto the front of the vehicle that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday on-road and off-road use.
ECE compliance allows for connecting into the vehicle’s electrical system so that the light activates with the vehicle’s standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Defender lighting upgrade kit delivers incredible levels of illumination for when the sun goes down.
The mounting of the light utilises mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners.

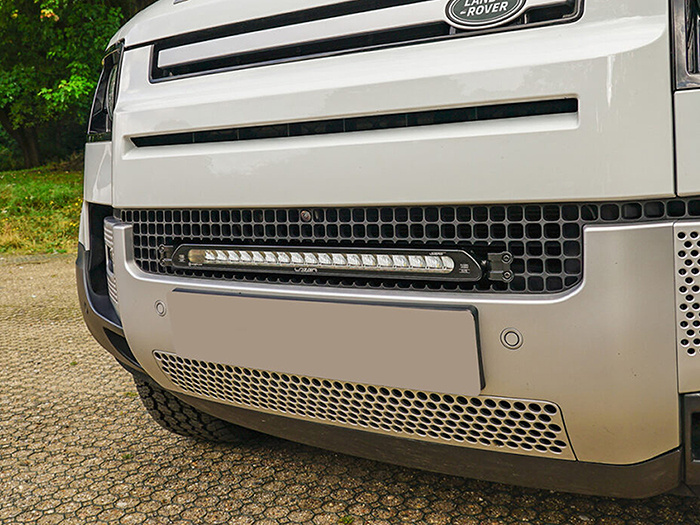

Linear-18 Elite With I-LBA LED Driving Light & Mounting Kit (DA3714)
Lazer Part Number - GK-DEF18-ILBA-01K
Utilising satin black mounting brackets concealed behind the centre opening, the Lazer Lamps vehicle integration kit for the Defender - 2020 onwards, allows for mounting a class-leading Linear-18 Elite with I-LBA LED Driving Light, for an auxiliary LED driving light installation that impresses day and night.
The slimline design and high-end styling of the Linear product ensures an aesthetic install onto the front of the vehicle that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday on-road and off-road use.
ECE compliance allows for connecting into the vehicle’s electrical system so that the light activates with the vehicle’s standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Defender lighting upgrade kit delivers incredible levels of illumination for when the sun goes down.
The mounting of the light utilises mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners.

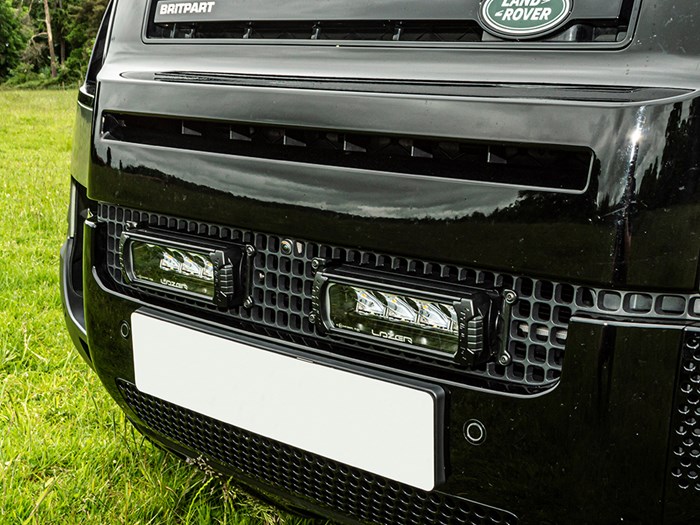

Triple-R 750 LED Spotlights Grille Integration Kit (DA2859)
Lazer Part Number - GK-DEF750-G2-1K
For an OE quality, auxiliary LED driving light installation, the Lazer Grille Integration Kit includes bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the Defender 2020 onwards model. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Defender kit, designed for 2020 onwards models, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4 x brackets precision-engineered to engage perfectly with the standard lower grille on the vehicle, with added strength and security provided by the supplied self-tapping, anti-theft screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
Lazer Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED driving lights.

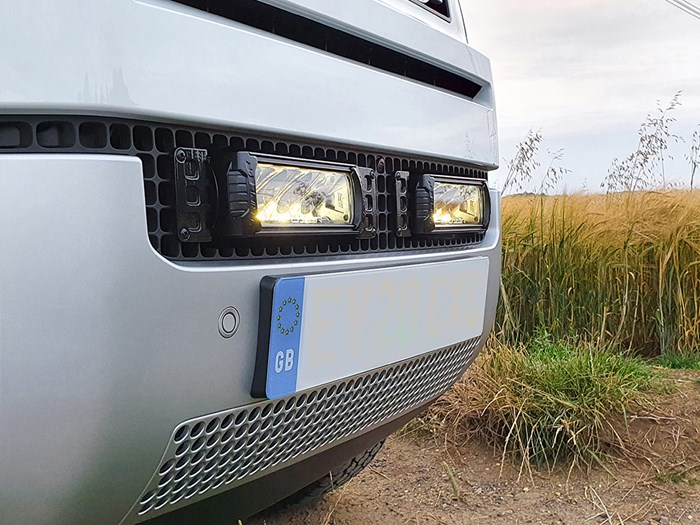

Triple-R 750 Elite LED Spotlights Grille Integration Kit (DA3711)
Lazer Part Number - GK-DEF750-EL-G2-01K
For an OE quality, auxiliary LED driving light installation, the Lazer Grille Integration Kit includes bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the Defender 2020 onwards model.
Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Defender kit, designed for 2020 onwards models, includes a pair of Triple-R 750 Elite High Performance LED driving lights, plus wiring kit, alongside 4 x brackets precision-engineered to engage perfectly with the standard lower grille on the vehicle, with added strength and security provided by the supplied self-tapping, anti-theft screws.

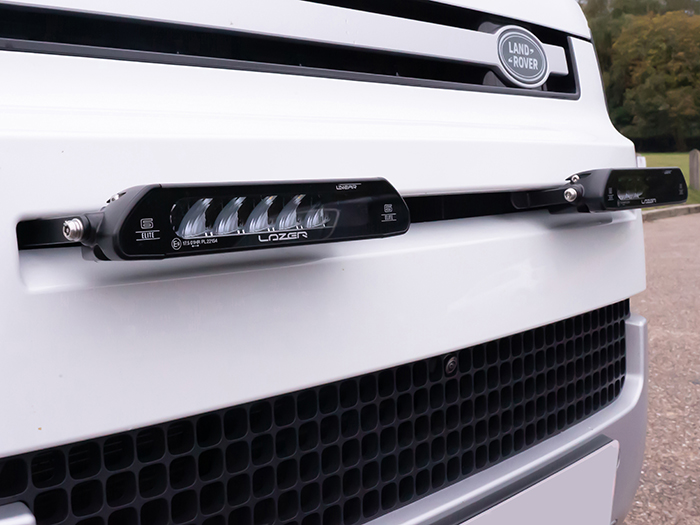

Bumper Beam Mounting Kit (DA3718)
Lazer Part Number - VIFK-DEF2020-01K
Utilising satin black mounting brackets concealed behind the centre opening, the Lazer Lamps vehicle integration kit for the Defender - 2020 onwards, allows for mounting a single Linear-18 (Standard or Elite) high performance LED spotlight, for an auxiliary LED driving light installation that impresses day and night.
The slimline design and high-end styling of the Linear products ensures an aesthetic install onto the front of the vehicle that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday on-road and off-road use.
The mounting of the light utilises mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners.

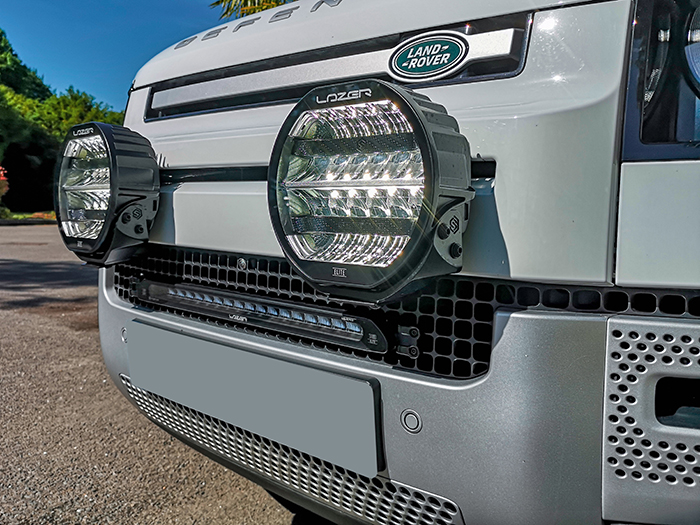

Bumper Beam Mounting Kit (DA3719)
Lazer Part Number - VIFK-DEF2020-0S
Utilising satin black mounting brackets concealed behind the bumper surround, the Lazer Lamps vehicle integration kit for the Defender - 2020 onwards, allows for mounting a pair of Sentinel LED driving lights, for an auxiliary LED driving light installation that impresses day and night.
Included with the kit are stabilising bars to ensure each light is fully robust and secure without any adverse vibrations.
The mounting brackets are made from 3mm folded A2 stainless steel, that benefit from an e-coat finish complete with satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners and rivets.

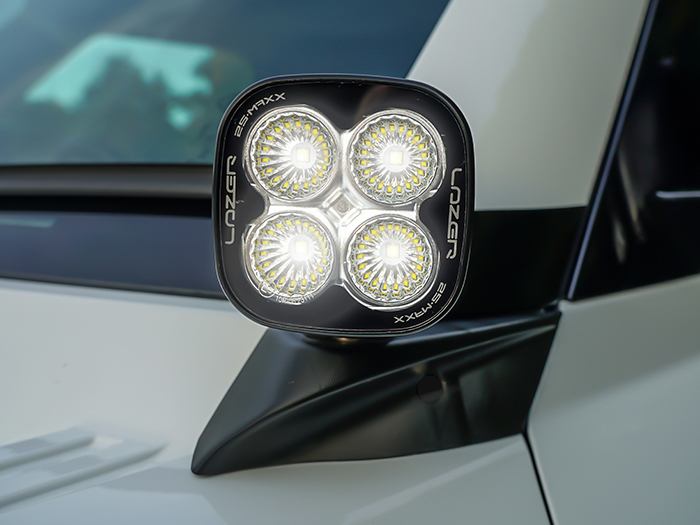

A-Pillar Mounting Kit (DA3721)
Lazer Part Number - VIFK-DEF2020-UT25
A pair of custom-made mounting brackets, designed around the A-pillar of the Defender - 2020 onwards, to facilitate the mounting of Utility-25 or Utility-25 MAXX LED work lights.
The brackets themselves locate in the original fixtures on the Defender, replacing a small piece of trim material at the base of each A-pillar with no drilling required. Made from a high-strength composite material, with matt black finish, the end-result has a real OE look and finish.
Optimised for mounting either Utility-25 or Utility-25 MAXX work lights, the brackets include design features to facilitate the installation of the lights as well as routing of the light cables and wiring.

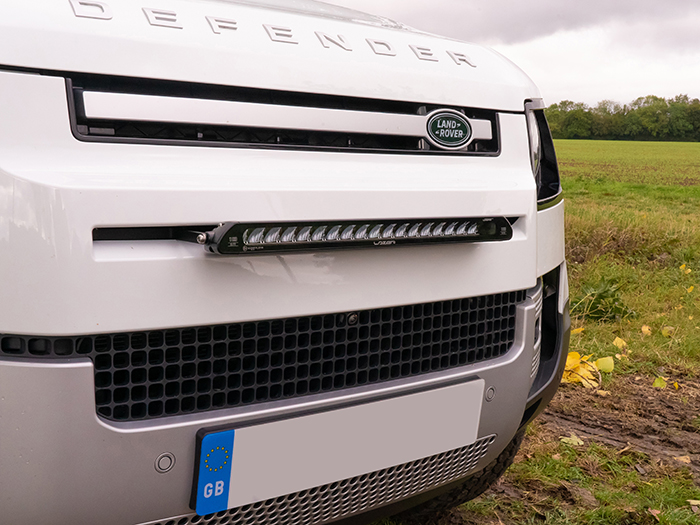

Bumper Beam Mounting Kit (DA3448)
Lazer Part Number - VIFK-DEF2020-02K
Utilising satin black mounting brackets concealed behind the centre opening, the Lazer Lamps vehicle integration kit for the Defender - 2020 onwards, allows for mounting a pair of our class-leading a single Linear-18 (Standard or Elite) high performance LED spotlight, for an auxiliary LED driving light installation that impresses day and night.
The slimline design and high-end styling of the Linear products ensures an aesthetic install onto the front of the vehicle that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday on-road and off-road use.
The mounting of the light utilises mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners.

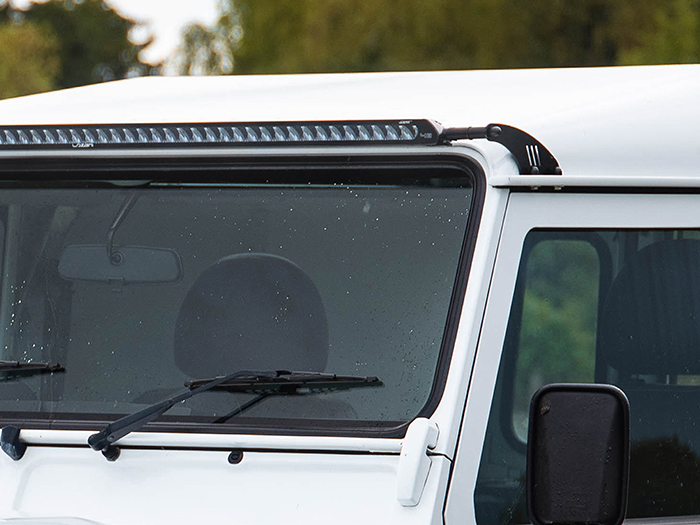

Lazer Defender Roof Mounting Kit (DA3236)
Lazer Part Number - 3001-DEF-67-K
Stainless steel brackets that fix to the roof side gutter. Optimised for Triple-R 28 spotlight.
Manufactured from 3mm A2 stainless steel and finished with a UV-stable, satin black powder coat. Brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20 - 80mm.
To complete the mounting of different length light bars, cylindrical carbon spacers, of varying lengths, are provided to aid positioning. Installation of the brackets is completed using M6 fasteners fixed within the gutter location.
Cable grommets are supplied to ensure a tidy, and sealed cable entry point. Electrical butt connectors are provided to help assure the integrity of the cable reattachment once thread through the roof.

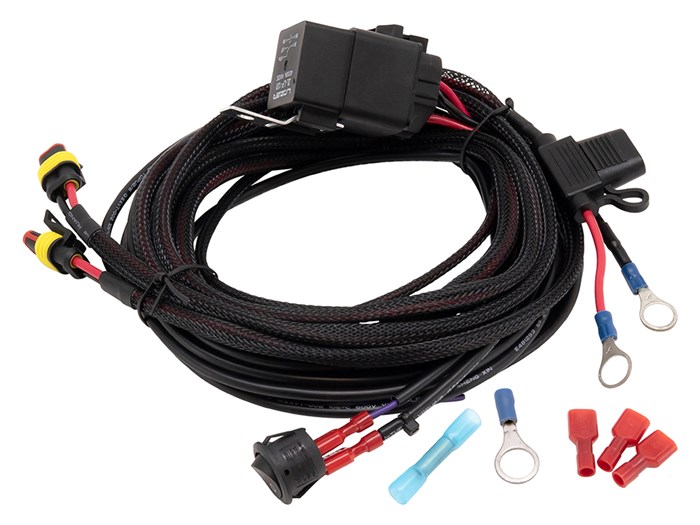

Lazer Two Light Harness Kit With Splice (DA2844)
Lazer Part Number - 2L-LP-120
The ideal solution for wiring a pair of E-mark approved Lazer high performance LED spotlights. The setup is quick, easy, and reliable with 2-pin superseal connections and no configuration procedures.
The kit features a 12V relay (in waterproof housing), 35A fuse, a battery terminal at one end, and 1.2m of flex on both light cables, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
All Lazer lights are sold with a pre-wired female connector attached to the male connector of the light harness, to facilitate wiring in to your vehicle system.
Sentinel 9’’ Standard (DA3729)
Lazer Part Number - 0S9-PL-SM
The Sentinel range are 9” round lights that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamp name.
Emitting 9,529 raw lumens, the lights deliver 1 lux reaching to over 700m; impressive in itself, but considering the 52 degrees horizontal beam angle, this is a product that has been designed to deliver maximum visibility for all manner of on-road and off-road use. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.
The light is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the light reduces the light output to be within the allowable limit.
The stealth design of the Sentinel light is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. There is an option to connect white or amber position/side light function, for an even more distinct look.

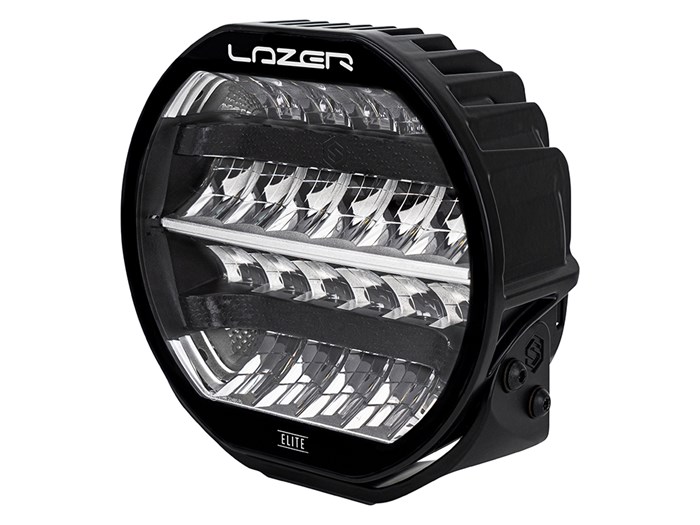

Sentinel 9’’ Elite (DA3730)
Lazer Part Number - 0S9-ELITE-SM
The Sentinel range are 9” round lights that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamp name. The Sentinel Elite product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.
Emitting 15,232 raw lumens, the lights deliver 1 lux to 742m. However, it is in the 52 degree horizontal spread of light, and visibility at the sides of the on-road or track in the mid to long-range, that the Sentinel Elite really comes into its own. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The light is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the light reduces the light output to be within the allowable limit.
The stealth design of the black variant of the Sentinel light is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. The aesthetic appeal of the light is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lights themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion.
Sentinel 9’’ Elite (DA3731)
Lazer Part Number - 0S9-PL-ELITE-SM
The Sentinel range are 9” round lights that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamp name. The Sentinel Elite product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.
Emitting 15,232 raw lumens, the lights deliver 1 lux to 742m. However, it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range, that the Sentinel Elite really comes into its own. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.
The light is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the light reduces the light output to be within the allowable limit.
The stealth design of the black variant of the Sentinel light is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. The aesthetic appeal of the light is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lights themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion.
