ARB Diff Lockers & Associated Equipment
Air Locker locking differentials allow you to tackle the toughest terrain. As the world's premier traction aid, ARB Air Lockers keep you moving in all conditions.
Parts

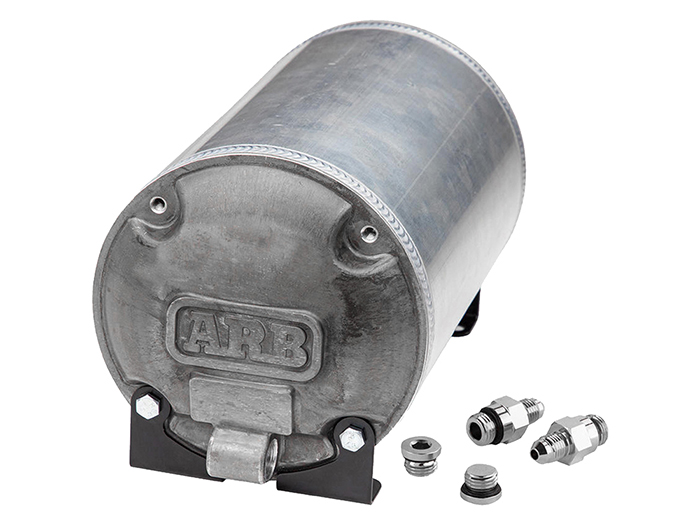

ARB Air Tank (171507)
Redesigned from the ground up with significant changes eliminating moisture retention and allowing for great mounting flexibility.
- Forged aluminium end caps tig welded with an extruded aluminium body
- 50% lighter than an equivalent steel tank
- Horizontal or vertical mountable
- Minimal fluid retention due to outlets placed at the lowest point
- Daisy chain compatible to allow fitment of multiple tanks
- Rated to 150 PSI
- Four 1/4 NPT ports (user configurable) with 2 x JIC-4 male fittings included

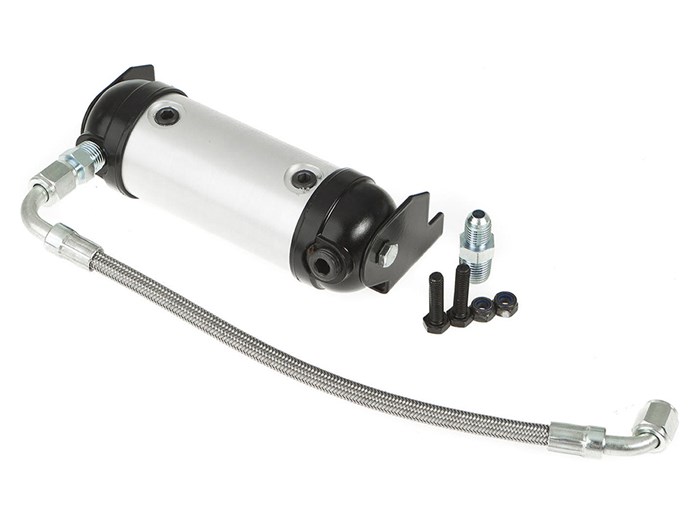

ARB Air Locker Manifold Kit (171503)
Stainless steel braided PTFE hose and fittings connect to and cool the compressor outlet air
Kit includes
Manifold body with mounting bracket
2 x 1/8” BSPP ports for installation of up to 2 x Air Locker solenoids
2 x 1/4” NPT ports, one to be used as an input and the second could be used for installation of a pump up kit
1 x high temperature resistant Teflon stainless steel braided hose with heavy duty JIC4 fittings
2 x JIC4 - 1/4” NPT nipples to connect the included hose to the compressor outlet and manifold kit input
2 x M6 hex head bolt and nylon lock-nuts for securing the manifold kitARB Remote Hose Coupling Mount Kit (171314)

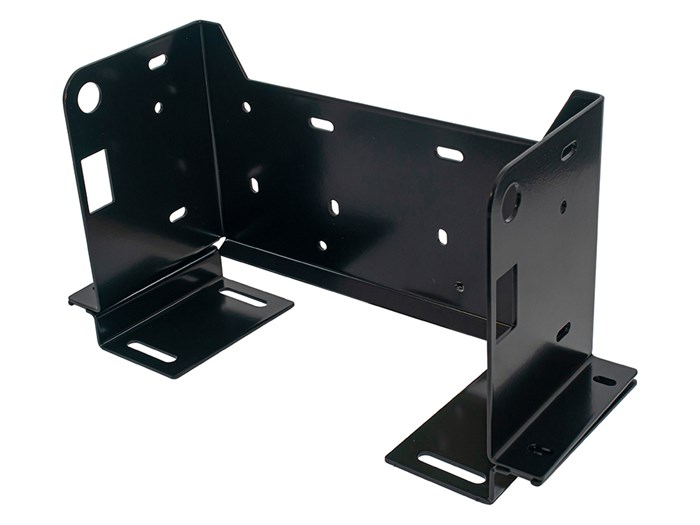

Universal Compressor Bracket (3501010)
Enables the installation of compressors CKMA12, CKMA24 & CKMTA12 and air tank 171507 with optional Air Locker solenoids, quick connect coupling, switch, manifold kit and ARB LINX PRV in various mounting positions.

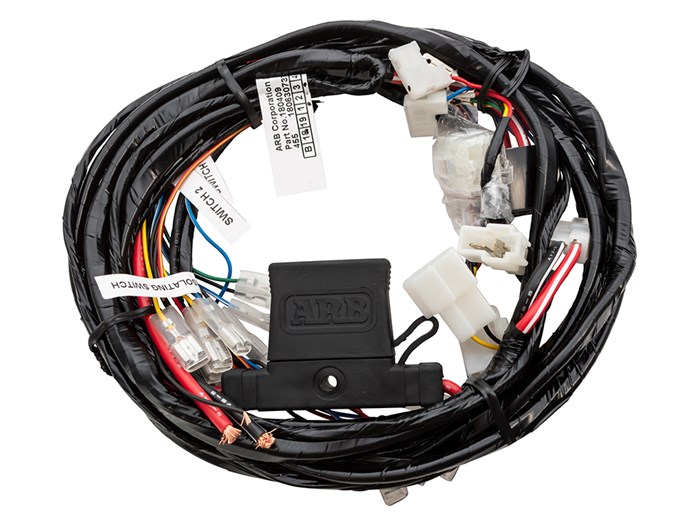

Air Compressor Wiring Loom (180409)

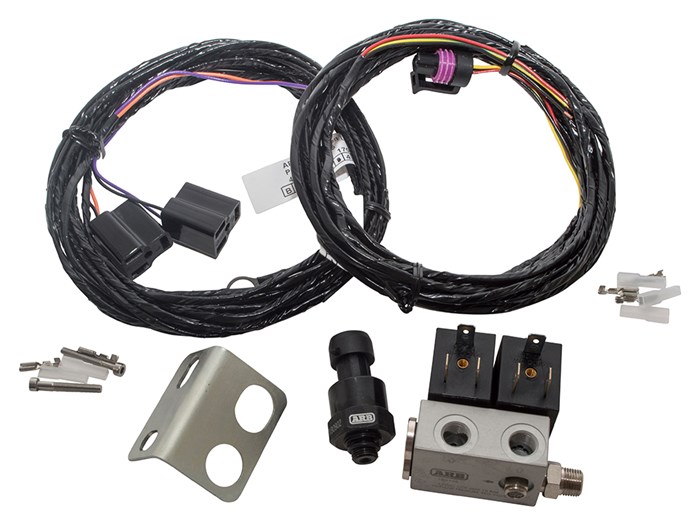

ARB Linx Pressure Control Kit (7450107)
Offering ‘set & forget’ simplicity to tyre inflation as well as remote control over your airbag suspension, the optional LINX Pressure Control Kit (coupled with an ARB air compressor) allows you to take full advantage of LINX’s Pressure Control Module. Perfect for the easy and accurate adjustment of tyre pressures or controlling a set of air bags. The wireless LINX’s mobile display means you can be in control from either within or out of the vehicle at up to 10m away.

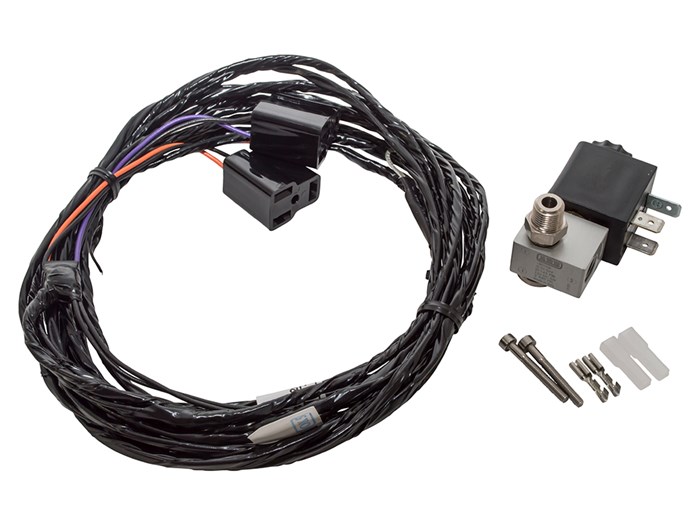

ARB Linx Airbag Suspension Isolation Kit (7450109)
This allows owners with air suspension to take full advantage of LINX’s Airbag Suspension Module providing the ability to independently adjust the pressure and ride height in each airbag. Perfect for when loads are added to a vehicle unevenly, levelling the vehicle from side to side (left to right) becomes a simple on-display adjustment.

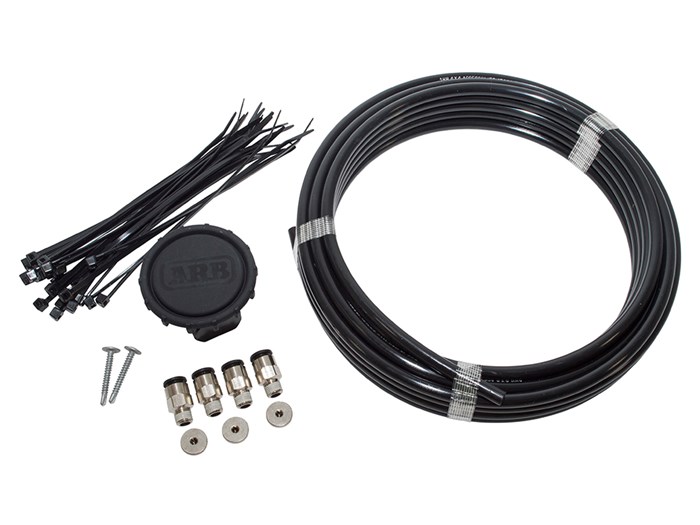

Diff Breather Kit (170112)
- Specifically engineered to work with differentials and ARB Air Lockers
- Compact and lightweight design with push-in fittings for simple installation
- Four breather ports for multiple applications
- Mounting holes will accommodate M6 bolt or stud
- Splash resistant air filter with washable high flow sintered bronze filer cartridge
- Oil, water and heat resistant 8mm polyurethane tubing reduces likelihood of oil blockages
1 x Anodised aluminium manifold
1 x Air filter
1 x 8mm x 8m polyurethane tubing
4 x 8mm-1/8”BSP push-in fittings
3 x 1/8”BSP plugs
2 x Self-tapping screws

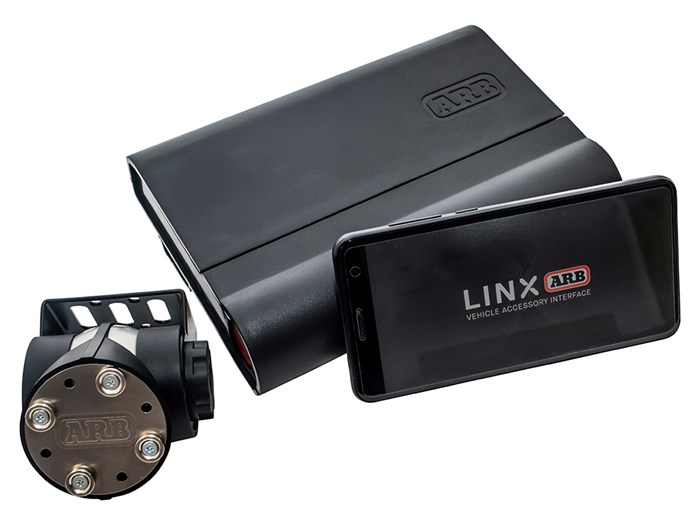

10 x Cable tiesARB Linx (LX100)
Watch the ARB Linx in action - here
The Next Generation Of 4X4 Accessories
LINX is a unique modern controller that declutters the dashboard and centralises the command of vehicle accessories by replacing classic switches, gauges and monitors with one sleek and smart driver interface. Built on an expandable platform, LINX will continue to evolve your on and off-road driving experience both now and into the future.
Experience Total Control
Fitting out a modern 4X4 with a range of accessories such as driving lights, air lockers, dual batteries and air compressors can quickly lead to a dash full of out of place, hard to reach switches and a myriad of gauges and monitors either stuck to the windscreen or drilled into the dashboard - not to mention all the associated fuses and wiring.
LINX offers a single point of control via its user-friendly, Bluetooth enabled, mobile touch screen display. The LINX mobile display mounts conveniently and unobtrusively within reach of the driver while the main control hub lies neatly out of sight under the dash or seat; taking care of all accessory wiring.
LINX comes with six pre-installed modules: Front and Rear Traction, Compressor Control, Accessory Switchboard, Battery Monitor, Speedometer and Air Suspension Control. See below for more details.
General Settings
Beyond its expansive range of modules, LINX presents a truly adaptable platform with module level settings, as well as, many additional general settings. Within the general settings of LINX users can customize the colour theme to match any interior dash theme; apply night mode for automated dimming which is activated by the vehicle’s headlights; and set the preferred unit measurements for air pressure, speed and temperature. As an expandable platform, simply connecting the screen to a WiFi point allows you to upgrade your LINX with any new updates at the press of a button.Functions
- Set theme colour to match your vehicle’s dash
- Engage night mode which engages when your headlights are activated
- Set all measurements to your preferred units
- Software upgradeable via WiFi connection
What’s In The Box- LINX Display Screen
- LINX Controller
- USB Charge Cable
- 3 Wiring Looms
- LINX Gimbal Mount
- Quick Start Up Guide
- 1 Pre-installed Display Screen Protector

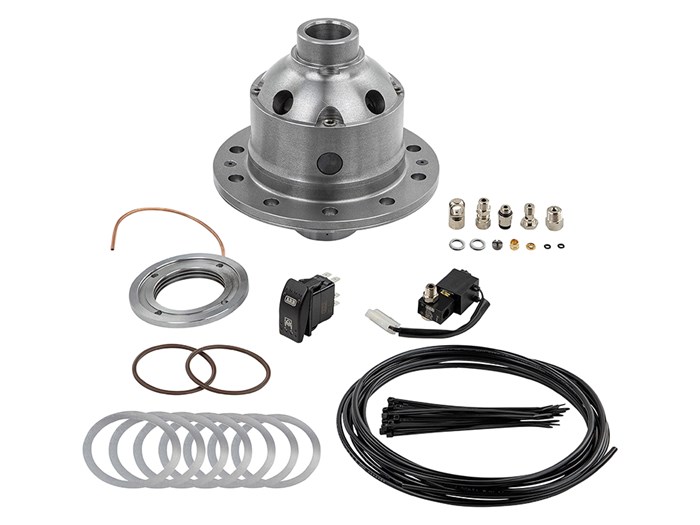

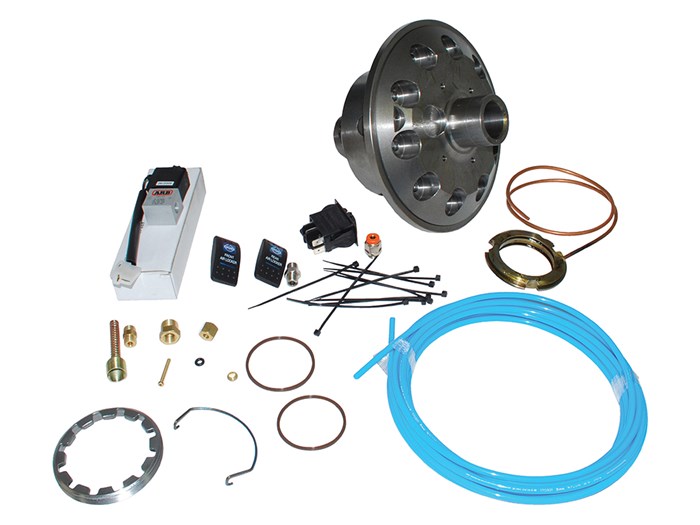

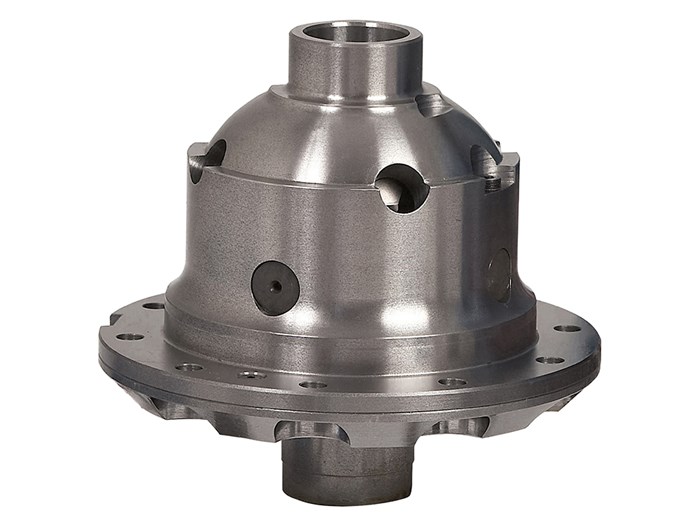

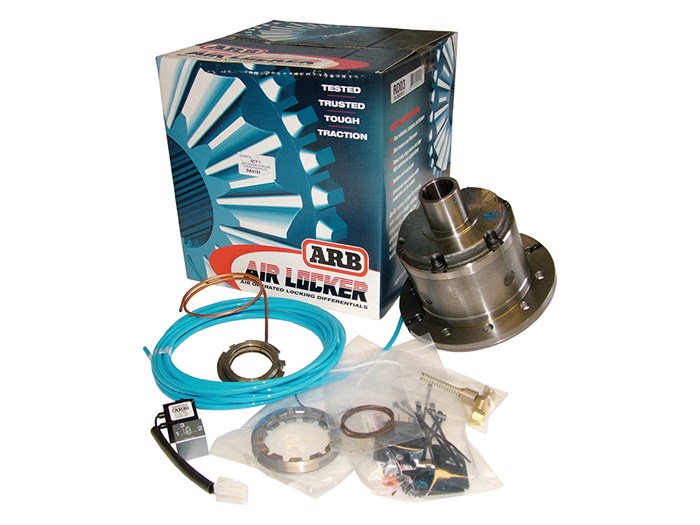

ARB Diff Locker (RD127)
There are a multitude of different diffs available for your Land Rover - read about the different types of locking diffs
Shaft Description - Rover type
Shaft Diameter - 28.2 (1.11")
Splines - 10
Ratio - 4.7Air Locker locking differentials allow you to tackle the toughest terrain.
Ultra durable and extremely strong - only the highest quality materials used in construction. Air Locker locking differentials allow you to tackle the toughest terrain. As the world's premier traction aid, ARB Air Lockers keep you moving in all conditions.Notes
1 If vehicle was manufactured during 1993, check spline count.
2 Air Locker not available for vehicles equipped with high load option.
3 Ring gear spacer required. Longer ring gear bolts (not supplied) are also necessary - (Land Rover part no. 576521).
4 When an DA4191 Air Locker is to be installed in Range Rovers manufactured prior to 1980 (approx.), special carrier bearings (No. K11300/K11162) may also be necessary - Land Rover part no. RTC3426.
5 Some vehicles have crown wheel bolts which cannot be reused and must be replaced. Consult service manual.
6 P38A is most commonly found in traction control equipped vehicles. Identify P38A type diff by large 205mm [8.07"] flange diameter. P38A was not used on North American delivered Discoverys - use DA4193.ARB Diff Locker (DA4192)

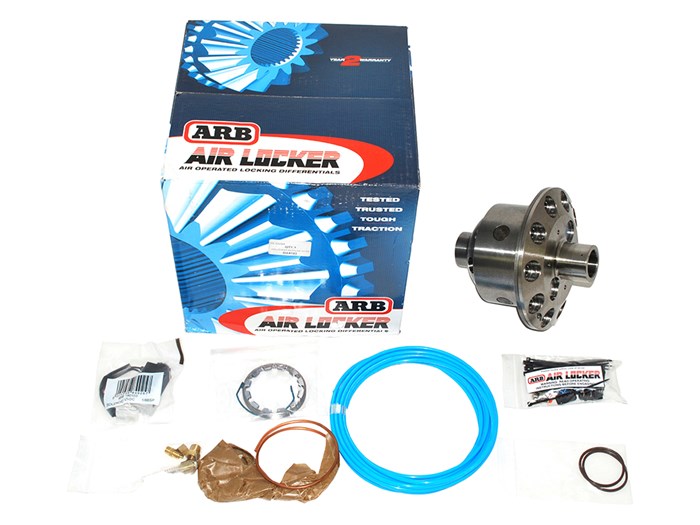

There are a multitude of different diffs available for your Land Rover - read about the different types of locking diffs
Shaft Description - Salisbury type
Shaft Diameter - 31.5 (1.24")
Splines - 24
Ratio - 3.54Air Locker locking differentials allow you to tackle the toughest terrain.
Ultra durable and extremely strong - only the highest quality materials used in construction. Air Locker locking differentials allow you to tackle the toughest terrain. As the world's premier traction aid, ARB Air Lockers keep you moving in all conditions.ARB Diff Locker (DA4193)
There are a multitude of different diffs available for your Land Rover - read about the different types of locking diffs
Shaft Description - Rover type
Shaft Diameter - 31.5 (1.24")
Splines - 24 - n/a for Wolf axles
Ratio - 3.54Note - Defender 90 - 2007 - 2016 is with 2 pin rear diff

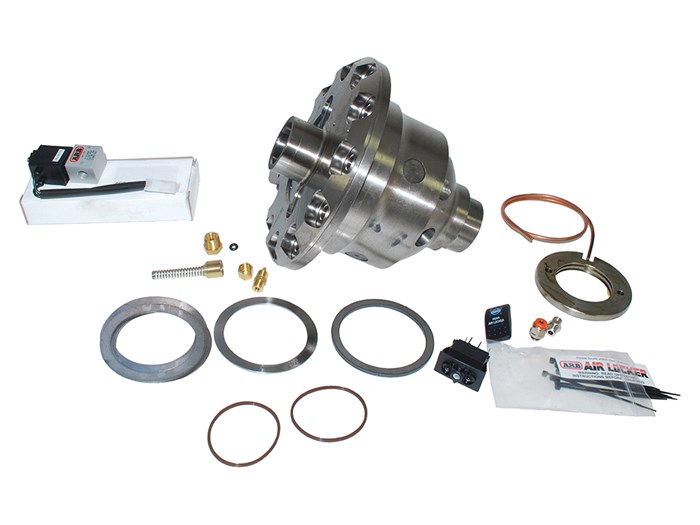

Air Locker locking differentials allow you to tackle the toughest terrain.
Ultra durable and extremely strong - only the highest quality materials used in construction. Air Locker locking differentials allow you to tackle the toughest terrain. As the world's premier traction aid, ARB Air Lockers keep you moving in all conditions.Notes
1 If vehicle was manufactured during 1993, check spline count.
2 Air Locker not available for vehicles equipped with high load option.
3 Ring gear spacer required. Longer ring gear bolts (not supplied) are also necessary - (Land Rover part no. 576521).
4 When an DA4191 Air Locker is to be installed in Range Rovers manufactured prior to 1980 (approx.), special carrier bearings (No. K11300/K11162) may also be necessary - Land Rover part no. RTC3426.
5 Some vehicles have crown wheel bolts which cannot be reused and must be replaced. Consult service manual.
6 P38A is most commonly found in traction control equipped vehicles. Identify P38A type diff by large 205mm [8.07"] flange diameter. P38A was not used on North American delivered Discoverys - use DA4193.ARB Diff Locker (DA4344)
There are a multitude of different diffs available for your Land Rover - read about the different types of locking diffs
Shaft Description - Rover type, P38A
Shaft Diameter - 31.5 (1.24")
Splines - 24
Ratio - 3.54Note - Defender 90 - 2007 - 2016 is with 4 pin rear diff
Air Locker locking differentials allow you to tackle the toughest terrain.Ultra durable and extremely strong - only the highest quality materials used in construction. Air Locker locking differentials allow you to tackle the toughest terrain. As the world's premier traction aid, ARB Air Lockers keep you moving in all conditions.
Notes
1 If vehicle was manufactured during 1993, check spline count.
2 Air Locker not available for vehicles equipped with high load option.
3 Ring gear spacer required. Longer ring gear bolts (not supplied) are also necessary - (Land Rover part no. 576521).
4 When an DA4191 Air Locker is to be installed in Range Rovers manufactured prior to 1980 (approx.), special carrier bearings (No. K11300/K11162) may also be necessary - Land Rover part no. RTC3426.
5 Some vehicles have crown wheel bolts which cannot be reused and must be replaced. Consult service manual.
6 P38A is most commonly found in traction control equipped vehicles. Identify P38A type diff by large 205mm [8.07"] flange diameter. P38A was not used on North American delivered Discoverys - use DA4193.ARB Diff Locker (RD218)
There are a multitude of different diffs available for your Land Rover - read about the different types of locking diffs
IRS, 31 spline, clamshell typeShaft diameter - 33.6mm (1.32")
Ratio - All
Air Locker locking differentials allow you to tackle the toughest terrain.
Ultra durable and extremely strong - only the highest quality materials used in construction. Air Locker locking differentials allow you to tackle the toughest terrain. As the world's premier traction aid, ARB Air Lockers keep you moving in all conditions.ARB Diff Locker (RD217)
There are a multitude of different diffs available for your Land Rover - read about the different types of locking diffs
IRS, 29 spline, clamshell typeShaft diameter - 31.5mm (1.24")
Ratio - All
Air Locker locking differentials allow you to tackle the toughest terrain.
Ultra durable and extremely strong - only the highest quality materials used in construction. Air Locker locking differentials allow you to tackle the toughest terrain. As the world's premier traction aid, ARB Air Lockers keep you moving in all conditions.ARB Diff Seal Housing Retaining Clip (150602SP)

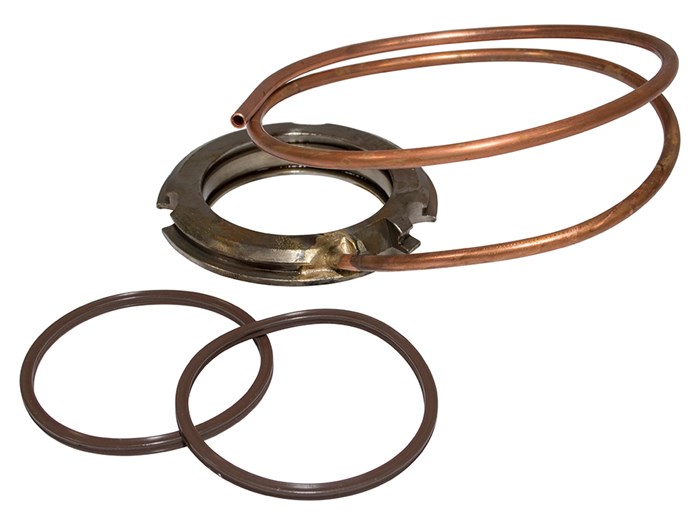

ARB Diff Air Feed Ring & Pipe (082002SP)

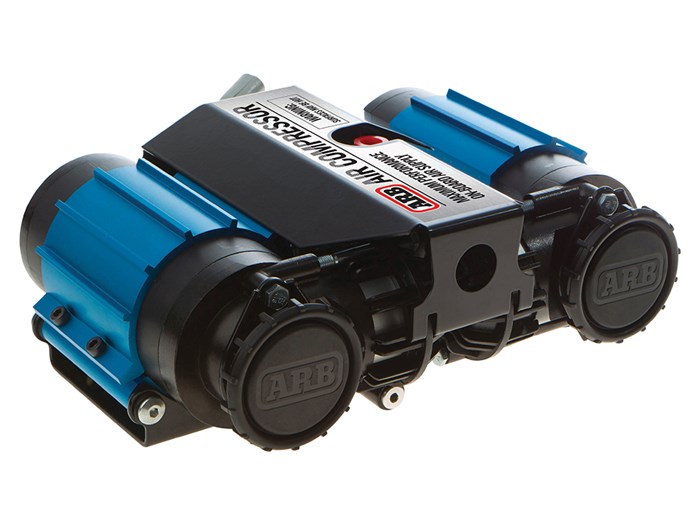

ARB Twin On-Board 12V Air Compressor (CKMTA12)
ARB high-volume twin on-board compressor to suit the high volume airflow needs of most air powered tools. It also suits the actuation and control needs of the ARB Air Locker in the harsh and demanding environment of the ARB Air Locker user.

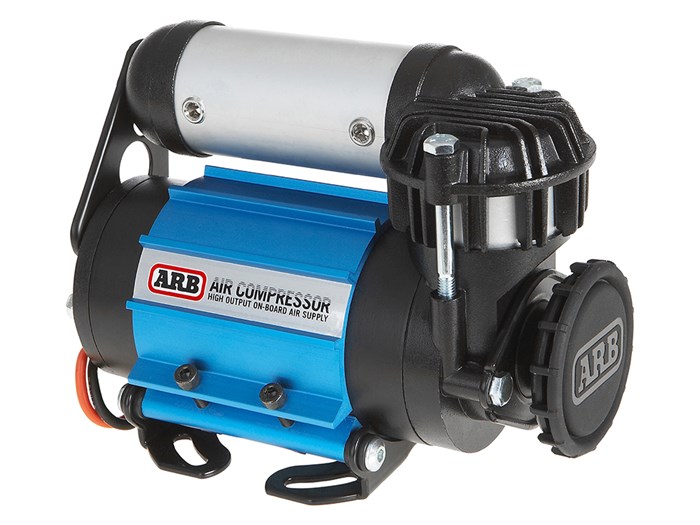

ARB High Flow On-Board 12V Air Compressor (CKMA12)
- High flow, compact compressor.
- Sealed for moisture and dust resistance.
- Hard anodised cylinder bore and Teflon impregnated carbon fibre piston seal for reduced friction and maximum trouble free life.
- Heavy-duty maxi-fuse equipped for professional in-line circuit protection.
- Quality components for quiet operation and extra long life.
- Anodised mounting brackets dissipates motor heat and allows compressor to be repositioned 180º.
- Constructed entirely of lightweight, high strength engineering grade materials.
- Over-pressure safety value equipped.
- Motor is internally thermal protected against extreme temperature damage.

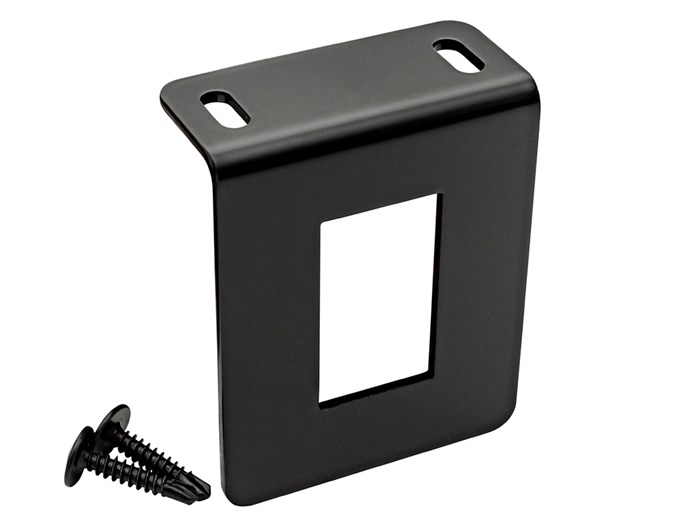

ARB Air Locker Switch Bracket (ALSB1)

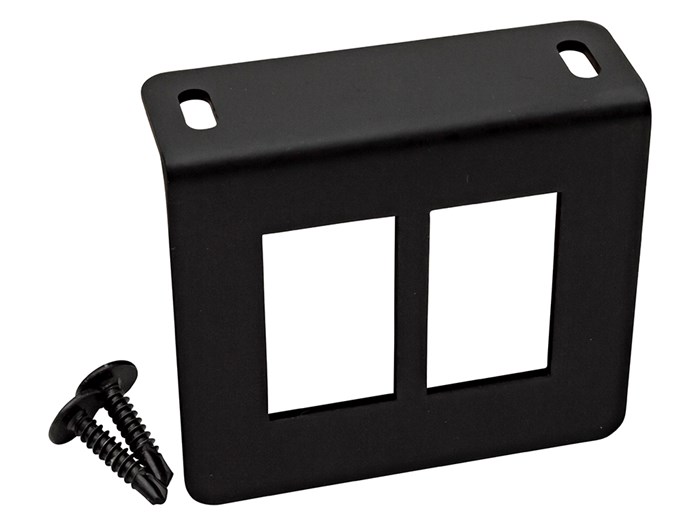

ARB Air Locker Switch Bracket (ALSB2)

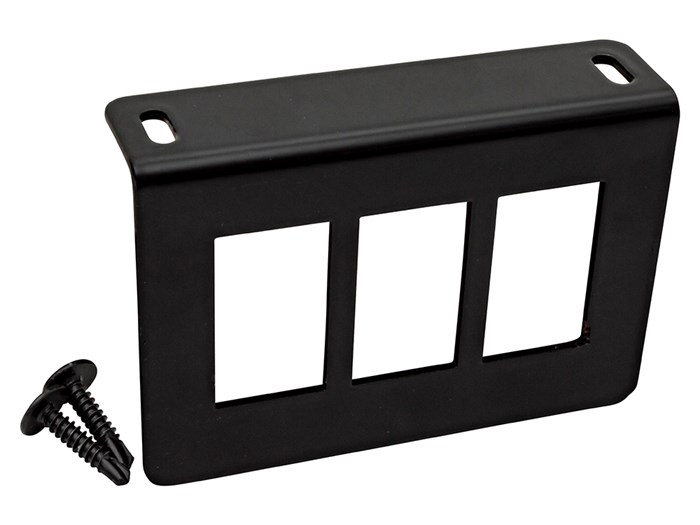

ARB Air Locker Switch Bracket (ALSB3)

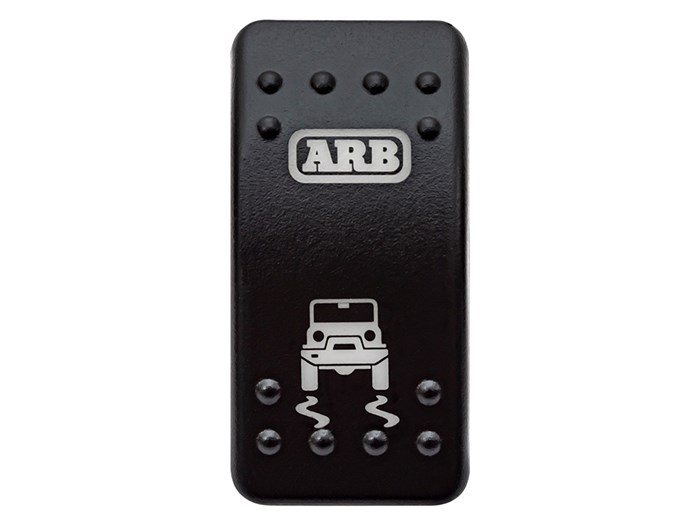

ARB Dash Switch Cover (180223SP)
- LED backlit with a pure white light
- Less heat and less power consumption
- Improved visibility at night
- ARB branded
- New image designs represents a combination of iconic 4WD vehicles
- Internationally identified

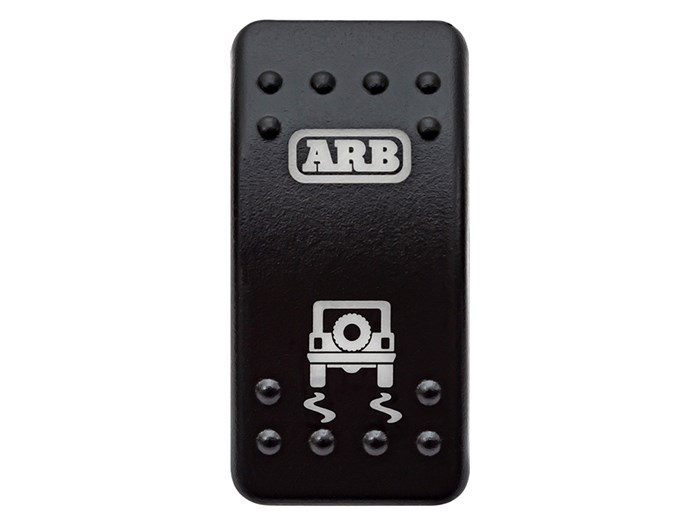

ARB Dash Switch (180224SP)
- LED backlit with a pure white light
- Less heat and less power consumption
- Improved visibility at night
- ARB branded
- New image designs represents a combination of iconic 4WD vehicles
- Internationally identified

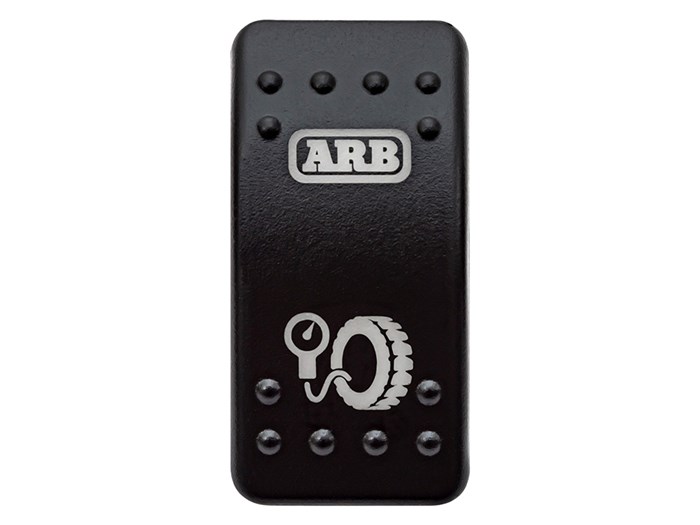

ARB Dash Switch (180222SP)
- LED backlit with a pure white light
- Less heat and less power consumption
- Improved visibility at night
- ARB branded
- New image designs represents a combination of iconic 4WD vehicles
- Internationally identified

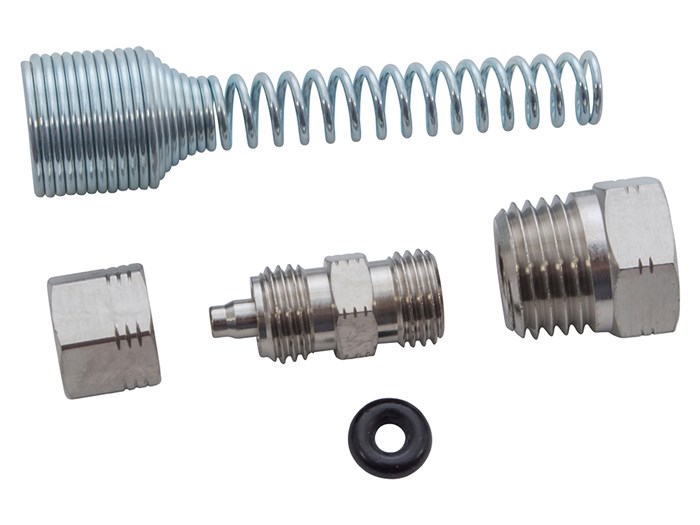

ARB Bulkhead Fitting Kit (170111)

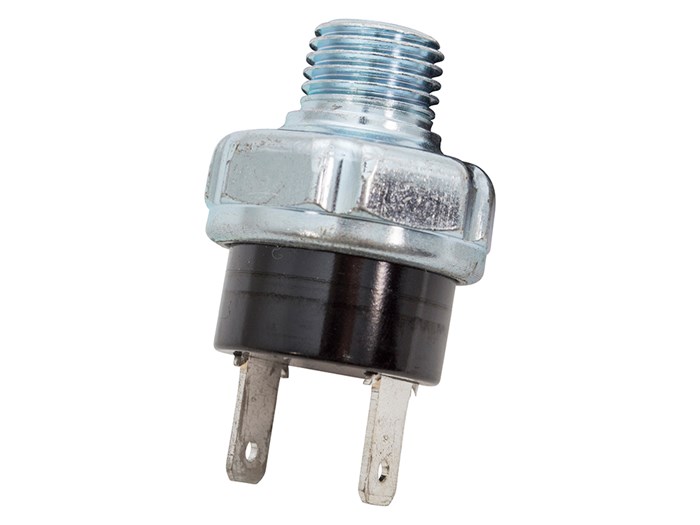

ARB Air Compressor Pressure Switch (DA8994)
Threads into the ARB air compressor to regulate internal pressure in the compressor tank. Turns compressor on at 70psi and off at 100psi.

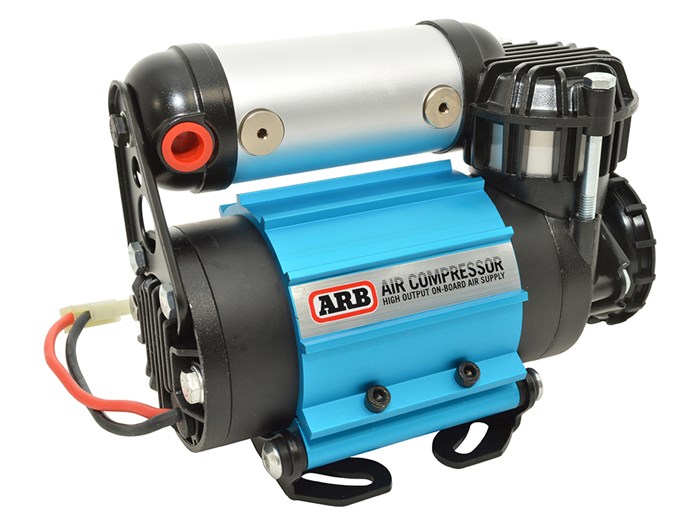

ARB High Flow On-Board 24V Air Compressor (CKMA24)
- High flow, compact compressor.
- Sealed for moisture and dust resistance.
- Hard anodised cylinder bore and Teflon impregnated carbon fibre piston seal for reduced friction and maximum trouble free life.
- Heavy-duty maxi-fuse equipped for professional in-line circuit protection.
- Quality components for quiet operation and extra long life.
- Anodised mounting brackets dissipates motor heat and allows compressor to be repositioned 180º.
- Constructed entirely of lightweight, high strength engineering grade materials.
- Over-pressure safety value equipped.
- Motor is internally thermal protected against extreme temperature damage.

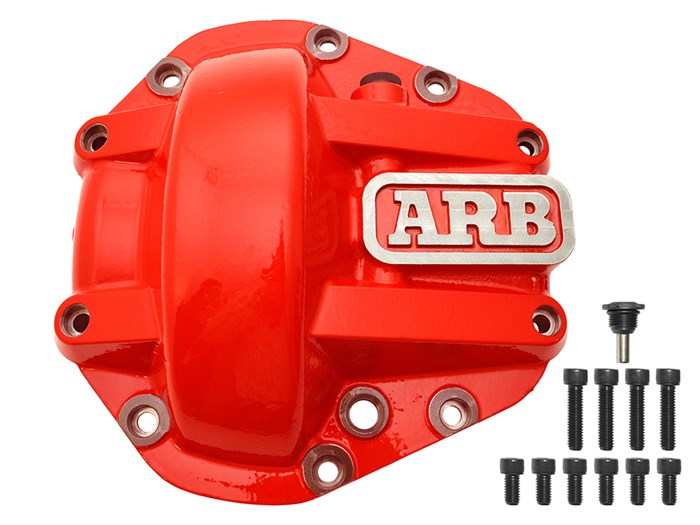

ARB Diff Cover (DA8926)
- High tensile solid nodular iron structure (tougher and harder than solid carbon steel) protects the differential and ring & pinion set from the obstacle impact hazards of competition rock crawling, or extreme off road trails.
- Computer optimized cross brace design adds more than 1300 Nm/deg (960ft-lb) of torsional rigidity to the entire axle assembly. This increased flexural strength in the housing helps keep the ring & pinion gears meshing on the flat faces of the teeth, which greatly increases ring & pinion life and overall maximum load strength.
- Carrier bearing life is prolonged, especially on high output vehicles, by the improved support given to the bearing alignment.
- Low-profile shape of the outside surface helps maximise the running gear clearance around the cover.
- Maximized approach/ departure angled exterior surfaces help to minimise rock/ obstacle hang-ups.
- High tensile cap screws (supplied with the kit) are recessed into the cover to protect them from contact with obstacles which might damage or loosen them.
- Cover is powder coated, CNC machined, then clear coated for a durable, professional, long lasting finish; hardware is zinc plated.
- Low profile drain plug design resists damage from obstacles.
- Combination of the high filler point and dipstick allows the oil to be checked for water contamination without having to drain the oil.
- Magnet location in the end of the dipstick allows the oil to be checked for tell-tale signs of internal damage.
- Top quality, high power neodymium magnets are used in both the drain plug and the dipstick to collect metallic wear particles as the vehicle moves.

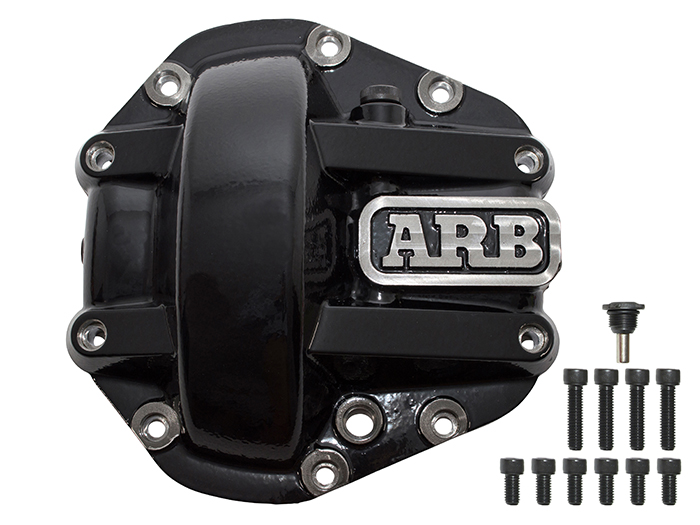

ARB Diff Cover (DA8934)
- High tensile solid nodular iron structure (tougher and harder than solid carbon steel) protects the differential and ring & pinion set from the obstacle impact hazards of competition rock crawling, or extreme off road trails.
- Computer optimized cross brace design adds more than 1300 Nm/deg (960ft-lb) of torsional rigidity to the entire axle assembly. This increased flexural strength in the housing helps keep the ring & pinion gears meshing on the flat faces of the teeth, which greatly increases ring & pinion life and overall maximum load strength.
- Carrier bearing life is prolonged, especially on high output vehicles, by the improved support given to the bearing alignment.
- Low-profile shape of the outside surface helps maximise the running gear clearance around the cover.
- Maximized approach/ departure angled exterior surfaces help to minimise rock/ obstacle hang-ups.
- High tensile cap screws (supplied with the kit) are recessed into the cover to protect them from contact with obstacles which might damage or loosen them.
- Cover is powder coated, CNC machined, then clear coated for a durable, professional, long lasting finish; hardware is zinc plated.
- Low profile drain plug design resists damage from obstacles.
- Combination of the high filler point and dipstick allows the oil to be checked for water contamination without having to drain the oil.
- Magnet location in the end of the dipstick allows the oil to be checked for tell-tale signs of internal damage.
- Top quality, high power neodymium magnets are used in both the drain plug and the dipstick to collect metallic wear particles as the vehicle moves.

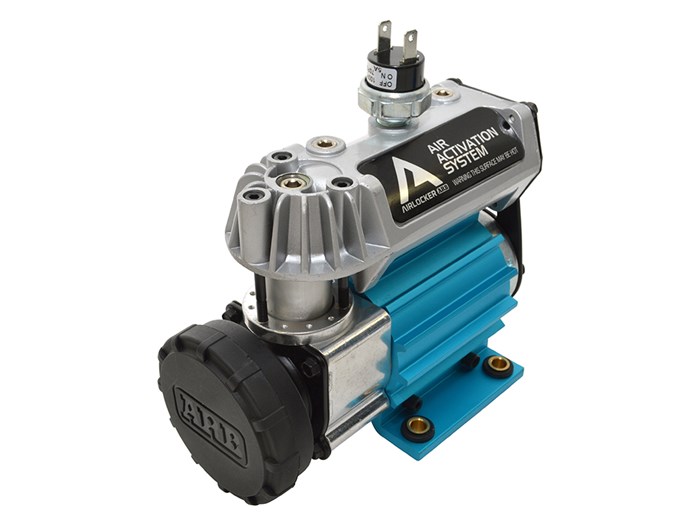

ARB Compact On-Board 12V Air Compressor (CKSA12)
This compact, vehicle mounted ARB air compressor kit is designed specifically to meet the demanding needs of the ARB Air Locker user.
- Compact, vehicle mounted design.
- Sealed for moisture & dust resistance.
- Quality components for quiet operation & extra long life.
- Mounting bracket allows for versatile positioning.
- Kit contains 12V air compressor, mounting bracket & hardware, auto on/off pressure switch, plug-in Air Locker wiring loom and installation instructions.
ARB O-Rings (160235-2)

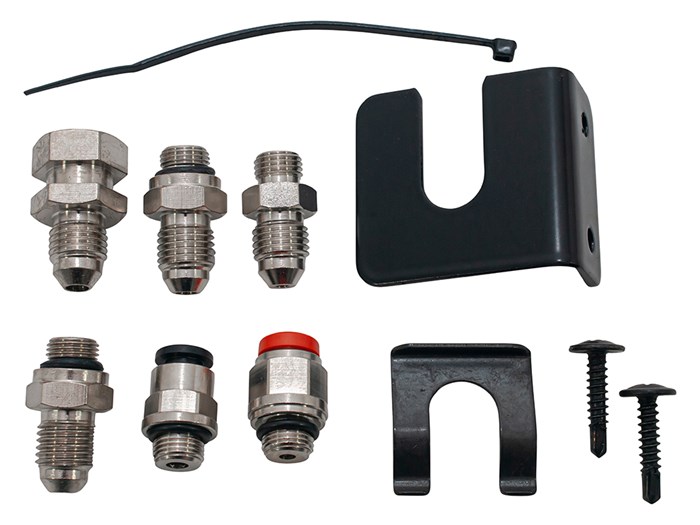

ARB Heavy-Duty Pressure Line Kit (0740300)
The ARB Air Locker heavy-duty pressure air line kit is designed for ARB air lockers. This kit is designed for use on one locker.
