Transfer Case Sump Covers
Parts

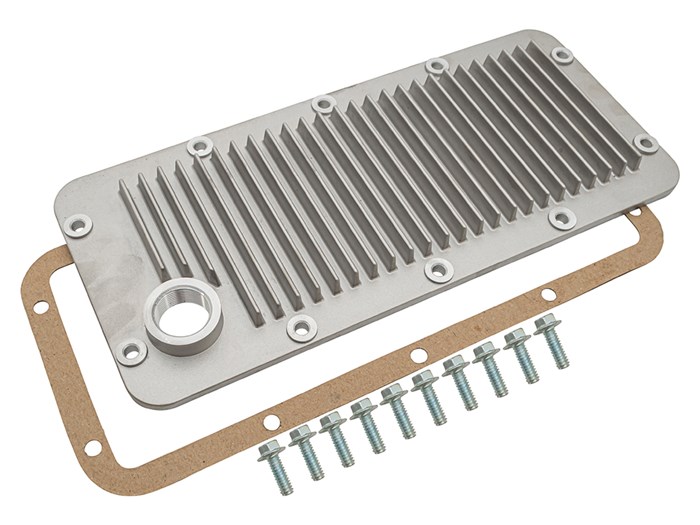

Transfer Case Sump Cover (DA9016)
Billet transfer case sump oil coolers are designed to replace the flimsy sump covers supplied as standard equipment. This cover is stronger than the originals and has cooling fins to keep the oil in your transfer case cool in harsh conditions.
This Series model is supplied with a new gasket and replacement fastening bolt to replace the brittle standard studs. Being solid aluminium, the cover completely eliminates leaks caused by differential expansion. If your vehicle is pre-1980 you can use your existing drain plug and washer.
Owners of later Series vehicles with metric fasteners should purchase a plug (Land Rover part 235592) to fit the threads in this casting. As the cover expands at the same rate as the aluminium transfer case the stubborn oil leaks associated with the original steel cover are completely eliminated.

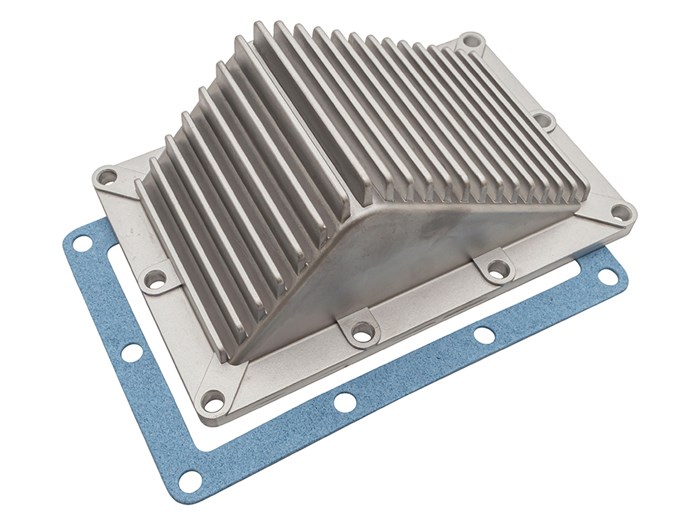

Transfer Case Sump Cover (DA9018)
Billet transfer case sump oil coolers are designed to replace the flimsy sump covers supplied as standard equipment. This cover is stronger than the original and has cooling fins to keep the oil in your transfer case cool in harsh conditions.
The sump cover is supplied with a new gasket, and the existing bolts are used for installation. The sump cover is significantly stronger than the original and adds about 1/2 litre to oil capacity. Existing ground clearance is not compromised.
A plugged port is supplied so that an oil temperature gauge can be fitted. It is possible to fit this sump cover to V8 models but check first that there is good clearance between the cover and existing exhaust pipes.
